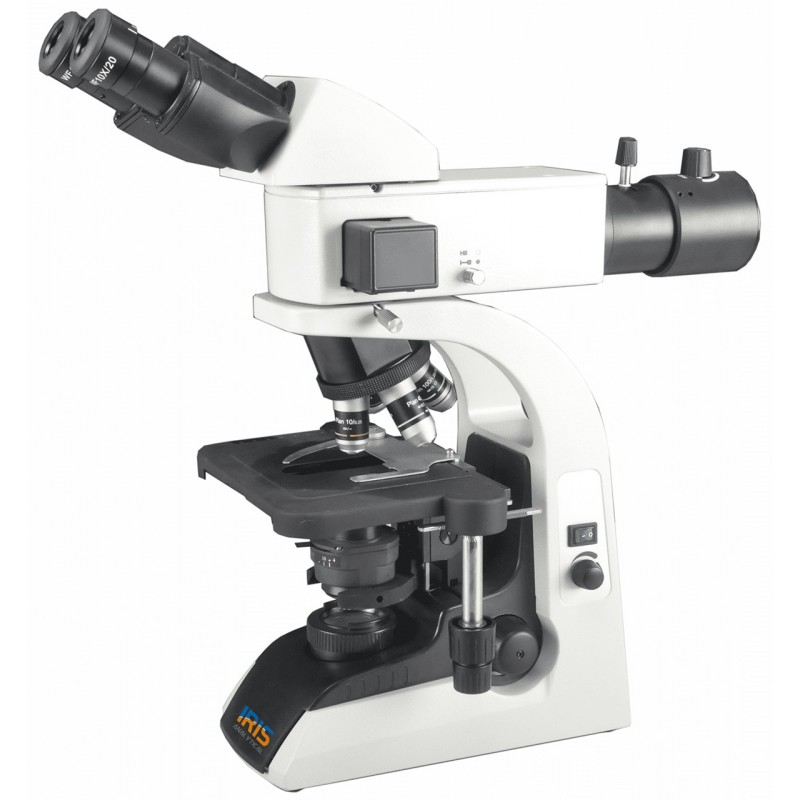

Fluorescent Microscope IMF-1300 Series
Fluorescent Microscope IMF-1300 Series

Fluorescent Microscope IMF-1300 Series is used to study the absorbing, transportation, chemicals distribution and positioning in cells. They can be used in disease examination, immune diagnosis and life science areas and tuberculosis test applications with Ziehl-Neelsen-Staining or fluorescence excitation, e.g. with Auramine O dye. 3W LED Illumi...

  • Full Description
  • Specifications
  • Documentation

Fluorescent Microscope IMF-1300 Series is used to study the absorbing, transportation, chemicals distribution and positioning in cells. They can be used in disease examination, immune diagnosis and life science areas and tuberculosis test applications with Ziehl-Neelsen-Staining or fluorescence excitation, e.g. with Auramine O dye. 3W LED Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and backward quadruple revolving nosepiece. The binocular, and Trinocular viewing head has excellent Infinite E-Plan Achromatic Objective 4X, 10X, 40X, 100X objectives and each eye tube has interpupillary adjustment. Designed with blue, green filters and Kohler Illumination.

  • Wild field WF10X20  mm and  WF10X22 mm eyepieces
  • Coaxial coarse and fine adjustment, fine division 0.002 mm, coarse stroke 37.7 mm/rotation, fine stroke 0.2/rotation, moving range 22 mm
  • Rectangular of length 230×150 mm, Cross Travel 78×54 mm with 2 slides holder and reckless double layers mechanical stage of length 182×140 mm, travel range: 77×52 mm, scale: 0.1 mm with 2 slide golder
  • Abbe Condenser NA1.25 with aperture diaphragm and swing out condenser N.A.0.9/1.25 with iris diaphragm
  • Mirror and 12V/20W halogen lamp light source
  • Different filters including blue filter and green, amber, grey filters as optional accessories
  • Binocular 30° inclined and a 360° rotatable head with  interpupillary distance 48 to 76 mm, trinocular 30° inclined and a 360° rotatable head with  interpupillary distance 48 to 76 mm
  • Small foot print and light weight
  • Easy operating with ergonomic design
  • Excellent image quality with an infinite optical system
  • Optional accessories to photo attachment, video attachment, polarization set, phase contrast kit, kohler illumination
  • 3W LED lamp Kohler Illumination as an optional accessories

Technical Specifications

Model

IMF-1310

IMF-1320

IMF-1330

IMF-1340

Type

Fluorescent Microscope

Viewing Head

Binocular Viewing Head, at 30°, 360° Rotatable, ID: 48-75mm

Trinocular Viewing Head, at 30°, 360° Rotatable, ID: 48-75mm

Binocular Head, 30°, Rotatable 360°, ID: 48-76mm

Trinocular Head, 30°, Rotatable 360°, I D: 48-76mm,

Fluorescent

3W LED Lamp(465-476nm)
3W LED Lamp(525-530nm), Fluorescent Free Oil

LED Epi-Fluorescent unit (Six-hole disc, Auramine O fluorescent filter (Chroma brand, mainly used for Tuberculosis examination))
3W LED fluorescent lamp, Rechargeable battery pack (6V DC) ,24 hrs working time(optional: 100W Mercury lamp Epi-Fluorescence unit (Six-hole disc, Auramine O/Uv/V/B/G and other filters))

Reflected Light Source

Blue : 460-490 excitation, 505 dichroic mirror, 515 barrier filter; Green : 510-550 excitation, 570 dichroic mirror, 590 barrier filter

-



Optical System

Infinite

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 22mm

Coaxial Coarse and Fine Focusing Knob, Coarse Focusing Travel Range: 25mm, Coarse Stroke 42.4mm/rotation, Fine Stroke 0.2mm/Rotation, Fine division: 2µm

Eyepiece

WF10X20mm (optional:WF15X16 mm)

WF10X22mm (Diopter adjustable), tube diameter: 30mm
(optional:WF15X16mm (Diopter adjustable))

Nosepiece

Backward Quintuple

Objective

Infinite Plan Achromatic Objective 4X 10X, 40X, 100X(optional: Infinite Plan Achromatic Objective 20X, 60X)

Infinite Plan Achromatic without coverslips: 10X/0.25 WD: 4.64mm, 40X/0.65 (S), WD:0.65mm, 60X/0.90(S) WD:0.33mm, 100X/1.25(S, Oil), WD: 0.12mm (optional: 4X/0.10 WD:12.10mm, 20X/0.40(S) WD:2.41mm)

Stage

Rectangular 230×150mm, Cross Travel 78×54mm, Using Low-positioned X/ Y Coaxial Control Knob, Can Hold Two Sides

Rackless Double Layers Mechanical stage, Size: 182mm×140mm, Travel Range: 77mm×52mm, Scale: 0.1mm, Two Slide Holder

Light Source

12V/20W Halogen Lamp(optional:1W S-LED illumination, brightness adjustable)

3W LED Lamp Koehler illumination

Condenser

Abbe Condenser NA1.25 with Aperture Diaphragm

Swing out condenser N.A.0.9/1.25, with iris diaphragm

Filter





Blue
(optional: Green/ Amber/Grey)

Certification









Optional Accessories

Photo attachment, Video attachment, Polarization set, Phase contrast kit, Kohler Illumination

Video Adapter, Photo Adapter

Packing Dimension

380x260x510 mm

440x380x170 mm

755×340×440 mm

Packing Weight

9 kg

3 kg

GW-17 kg NW-15 kg

Electrical Requirement





100V

240V

100V

240V

Catalogue No.

440100-05-04

440100-10-04

440100-15-01

440100-15-02

440100-20-01

440100-20-02
  • Request Information

    • Request Information

    * Required fields

      Catalogue No. Image Product Detail Availability Price
    (Excludes VAT)
    		440100-05-04

    Fluorescent Microscope IMF-1310  is used to study the absorbing, transportation, chemicals distribution and positioning in cells.

    3-4 weeks

    $5,420.00

    Add to Cart
    		440100-10-04

    Fluorescent Microscope IMF-1320  is used to study the absorbing, transportation, chemicals distribution and positioning in cells.

    3-4 weeks

    $5,540.00

    Add to Cart
    		440100-15-01

    Fluorescent Microscope IMF-1330  is used to study the absorbing, transportation, chemicals distribution and positioning in cells

    3-4 weeks

    $5,600.00

    Add to Cart
    		440100-15-02

    Fluorescent Microscope IMF-1330  is used to study the absorbing, transportation, chemicals distribution and positioning in cells.

    3-4 weeks

    $5,800.00

    Add to Cart
    		440100-20-01

    Fluorescent Microscope IMF-1340  is used to study the absorbing, transportation, chemicals distribution and positioning in cells.

    3-4 weeks

    $5,900.00

    Add to Cart
    		440100-20-02

    Fluorescent Microscope IMF-1340  is used to study the absorbing, transportation, chemicals distribution and positioning in cells.

    3-4 weeks

    $5,900.00

    Add to Cart
