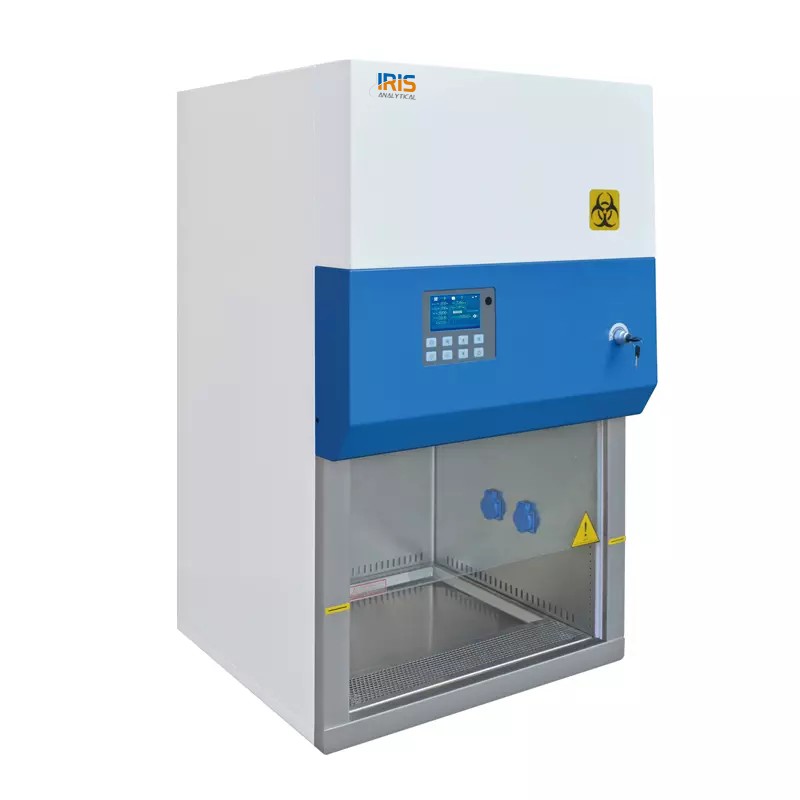

Biological Safety Cabinet IBC-100A2 Series
Biological Safety Cabinet IBC-100A2 Series

We provide a primary containment working area containing an airflow system: 70% air recirculation, 30% air exhaust, for the research and other cell culturing applications.

Accommodates centrifugal fan, speed, adjustable, motorized front window. We provide a safe and secure laboratory workspace using an optimum airflow design combined with an in...

  • Full Description
  • Specifications

We provide a primary containment working area containing an airflow system: 70% air recirculation, 30% air exhaust, for the research and other cell culturing applications.

Accommodates centrifugal fan, speed, adjustable, motorized front window. We provide a safe and secure laboratory workspace using an optimum airflow design combined with an integrated H14 HEPA filter.

This H14 traps the toxic particle coming from outside.  Our A2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide. Built-in 3 protection shields including operator, sample, and environment.

  • Suitable for limited space
  • Features with centrifugal fan, speed, H14 HEPA filter
  • Friendly big LCD display to users to check the work status of the cabinet: inflow and down flow velocity, work area temperature and humidity, filter pressure, UV and filter working time, filter life indicator so on
  • Also, have time reserve function
  • It come with remote control for easier working
  • The cabinet designed with motorized front window along with voice prompt function: Airflow alarm, filter replacing alarm, and front window height alarm

Accessories

    Remote Control

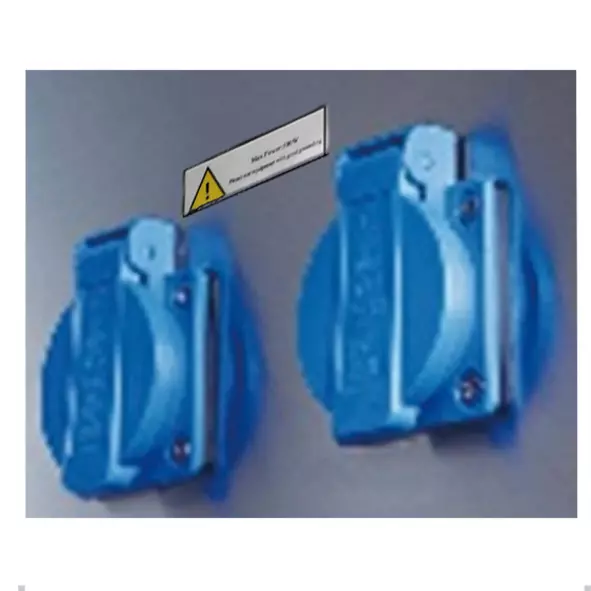

      Waterproof Sockets

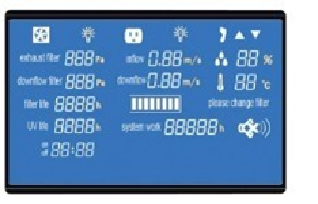

    LCD Display

       Work Zone



      UV Lamp



Standard Accessories

Optional Accessories

Fluorescent lamp

Base stand

UV lamp - 2

Universal caster with brake and levelling feet

Remote control



Waterproof sockets - 2



Model

BC200A2-372

BC200A2-455

BC200A2-534

BC200A2-677

BC200A2-712

Model

BC200A2-300

BC200A2-400

BC200A2-500

BC200A2-600

BC200A2-700

Model

BSC-1100IIA2-X

BSC-1300IIA2-X

BSC-1500IIA2-X

BSC-1800IIA2-X

BSC-2000IIA2-X

Internal Size

(W*D*H)

940* 600*660 mm

1150*600*660 mm

1350*600*660mm

1710*600*660 mm

1800*600*660mm

External Size

(W*D*H)

1100*750*2250mm

1300*750*2250mm

1500*750*2250mm

1870*750*2290mm

1950*800*2305mm

Tested Opening

Safety Height 200 mm(8’’)

Max Opening

420mm（17’’）

420mm（17’’）

400mm（16’’）

400mm（16’’）

400mm（16’’）

Inflow Velocity

0.53±0.025 m/s

Downflow Velocity

0.33±0.025 m/s

HEPA Filter

Two, 99.999% efficient at 0.3 um. Filter life indicator.

Front Window

Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV.

Noise

EN12469 ≤ 58 dB / NSF49 ≤ 61 dB

UV Lamp

30W*1

30W* 1

40W* 1

40W*2

40W* 1

UV timer, UV life indicator, emission of 253.7 nanometres

for most efficient decontamination.

Fluorescent Lamp

21W*2

21W*2

28W*2

40W*2

40W*2

Illumination

≥1000Lux

Consumption

760W

800W

900W

900W

1500W

Waterproof Sockets

Two, total load of two sockets: 500W

Display

LCD display: exhaust filter and downflow filter pressure,

filter and UV lamp working time, inflow and downflow velocity, filter life,

humidity and temperature, system working time etc.

Control System

Microprocessor

Airflow System

70% air recirculation, 30% air exhaust

Visual and audio alarm

Filter replacement, window over height, abnormal air flow velocity.

Material



Work Zone: 304 stainless steel

Main Body: Cold-rolled steel with anti-bacteria powder coating.

Work Surface Height

750mm

Caster

Foot master caster

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Standard Accessory

Fluorescent lamp,UV lamp*2 ,Base stand, Remote control, Foot switch,

Drain valve, Waterproof sockets*2

Optional Accessory

Water and gas tap

Gross Weight

243kg

280kg

316kg

395kg

420kg

Package Size (W*D*H)

1220× 1000× 1840 mm

1460*1050*1800 mm

1630*1000*1820 mm

2000*950*1820 mm

2090*1050*1860 mm

Electrical Requirement





















Catalogue No.




















  • Request Information

    • Request Information

    * Required fields

      Catalogue No. Image Product Detail Availability Price
    (Excludes VAT)
    		5200505-02

    We provide a primary containment working area containing an airflow system: 70% air recirculation, 30% air exhaust, for the research and other...

    3-4 Weeks

    $4,590.00

    Add to Cart
    		5200505-01

    We provide a primary containment working area containing an airflow system: 70% air recirculation, 30% air exhaust, for the research and other...

    3-4 Weeks

    $4,860.00

    Add to Cart
