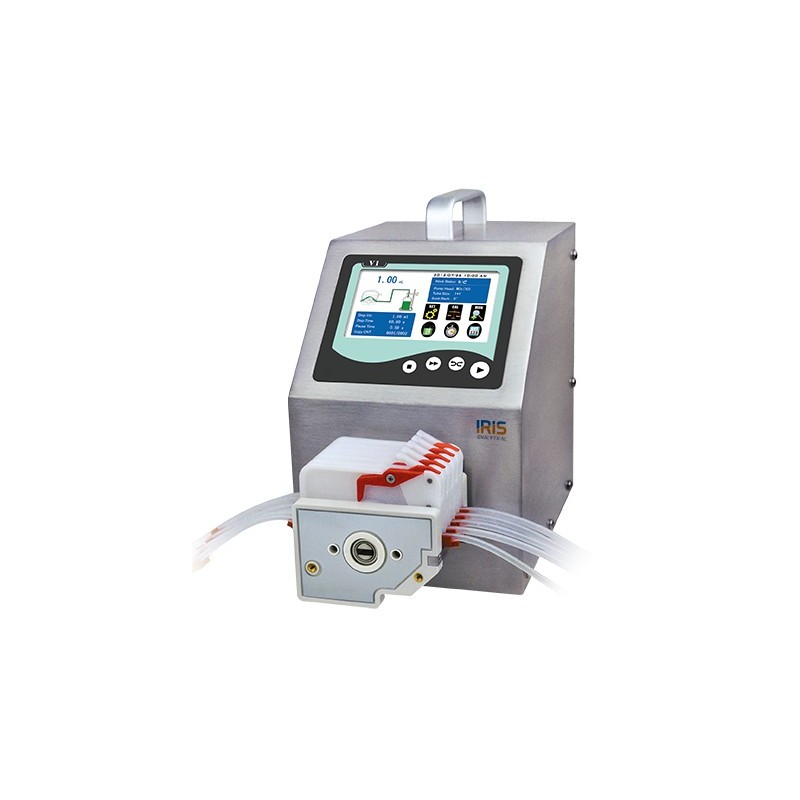

Medium Flow Rate Simple Peristaltic Pump IFPP-120
Medium Flow Rate Simple Peristaltic Pump IFPP-120

Medium Flow Rate Simple Peristaltic Pump IFPP-120 has 0.000166 to 1330 ml/min flow rates and excellent dosing that used for the timer function of simple dispensing function along with RS232, RS485 Modbus interface communicator.



  • Allow stacking of 4 pumps head for same drive, creating multichannel pump system
  • 3.2 inch LCD screen display
  • High rep...
  • Full Description
  • Specifications

Medium Flow Rate Simple Peristaltic Pump IFPP-120 has 0.000166 to 1330 ml/min flow rates and excellent dosing that used for the timer function of simple dispensing function along with RS232, RS485 Modbus interface communicator.



  • Allow stacking of 4 pumps head for same drive, creating multichannel pump system
  • 3.2 inch LCD screen display
  • High repeatability on all channels
  • The directional signal comes with passive switch signal like foot pedal along with optional active switch signal: 5V, 12V, 24V
  • Flow rate accuracy of pump 0.5 to 1.0% and 300,000 times keypad lifetimes
  • To control the speed of the pump knob are used
  • Low noise and vibration
  • Easy installation and low maintenance condition
  • Materials have good rigidity and high precision along with resisting organic solvent corrosion property
  • Adjust the pump as per the need

Technical Specifications

Model

IFPP-120-01

IFPP-120-02

IFPP-120-03

IFPP-120-04

Flow rate (ml/min/channel)

0.007 to 1330

0.17 to 1015

0.000166 to 49(working speed ≤150 rpm)

0.000185 to 65(working speed ≤150 rpm)

Pump Head

I-955412

I-655300

IP1-IP12

IP1-IP12

Number of Rollers

3

3

10

6

Tubing Size (mm)

13, 14, 19, 16, 25, 17, 18

15, 24

Inner Diameter: 0.13 to 3.17 mm Wall thickness: 0.8 to 1

Inner Diameter: 0.13 to 3.17 mm Wall thickness: 0.8 to 1

Speed

0.1 to 150 rpm

Testing Time Range

0.1 s to 9999 hrs

Speed Resolution

0.1 rpm

Accuracy

0.5 to 1.0%

Material

ABS plastic

Display

3.2 inch LCD screen

Control Method

Knob speed and mechanical keypad

Start/Stop Direction Signal

Passive switch signal: foot pedal
Active switch signal: 5V, 12V, 24V (optional)

Outlet Pressure

0.8 to 1.0 mm wall thickness tubing: 0.1 MPa

1.6 to 2.4 mm thickness tubing: 0.1 to 0.27 MPa

Buck suction Angle

0 to 360ºC

Operating Temperature

0 to 40ºC

IP-Rate

IP31

Dosing

Timer function for simple dispensing

Keypad lifetime

300,000 times

Communication

RS232, RS485 Modbus protocol(RTU mode)

Power Consumption

< 50 W

Humidity

<  80%

Dimension

261.4×157.3×236.9 mm

Drive Weight

4.40 kg

Electrical Requirement

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.

490302501

490302502

490303001

490303002

490303501

490303502

490304001

490304002
