Home >> >>>>Real-Time PCR System 2 Channel ITR-2000 Series

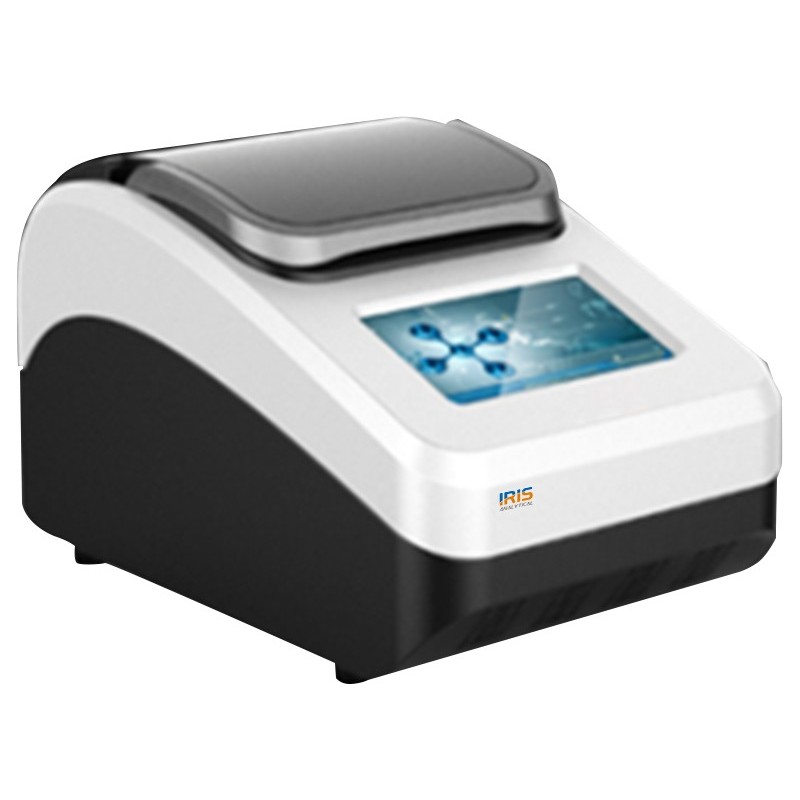

Real-Time PCR System 2 Channel ITR-2000 Series

The Real-Time PCR System 2 Channel ITR-2000 has been used in immunology, HGP, forensic medicine, oncology, histology, population biology, paleobiologic, zoology, botany and clinical diagnosis of viruses, tumours and hereditary disorder. Designed with 8×0.2 ml (5 to 100 µ), 8 strip tubes capacity and 10 to 10 test dynamic range. Rapidly set up ru...

  • Full Description
  • Specifications
  • Documentation

The Real-Time PCR System 2 Channel ITR-2000 has been used in immunology, HGP, forensic medicine, oncology, histology, population biology, paleobiologic, zoology, botany and clinical diagnosis of viruses, tumours and hereditary disorder. Designed with 8×0.2 ml (5 to 100 µ), 8 strip tubes capacity and 10 to 10 test dynamic range. Rapidly set up runs and monitor amplification traces in real time on integrated TFT display screen.

  • The system composed of Real-time sample with 2 independent detection system thermal cycler
  • Achieve accurate results
  • On board chargers for rapid outdoor detection
  • Small and transportable unit
  • Simple to practice: Sharp, clear 7 inch TFT Composed of PCR, LAMP, RPA open system reagent
  • USB 2.0 cable
  • Highly cost effective 2 channels along with fluorescent dyes
  • Fluorescent dyes included F1: FAM, SYBR Green I F2: HEX, VIC, JOE
  • Design the system for appropriate requirements
  • Outstanding performance of thermal plate

Model

ITR-2000

Capacity

8×0.2 ml (5 to 100 µl), 8 strip tubes

Reagent

open system (PCR, LAMP, RPA)

Display

TFT display

Temperature Range

30 to 99.9°C

Uniformity

±0.1°C

Accuracy

±0.1°C

Temperature Control

±0.1°c

Sensitivity

10 copy

Test Dynamic Range

10 to 10

Fluorescent Dye

F1: FAM, SYBR Green I F2: HEX, VIC, JOE

Channel

2

Ramping Rate

≥ 6.5°C/s

Hot Lid Temperature

30 to 110°C

Sample Linearity

r≥0.98

Fluorescent Linearity

r≥0.99

Fluorescent Intensity Detection

CV≤1%

Operating System

LED+PD

Software

Stand alone and PC software

Connectivity

USB 2.0

Overall Dimensions

300×260×170 mm

Weight

Light and Portable

Electrical Requirements

12 V DC

Catalogue No.

6005505-00

  • Request Information
  • Request Information

    * Required fields

      Catalogue No. Image Product Detail Availability Price
    (Excludes VAT)
    6205505-00

    Real-Time PCR System 2 Channel ITR-2000 has been used in immunology, HGP, forensic medicine, oncology, histology, population biology,...

    3-4 Weeks

    $9,800.00
