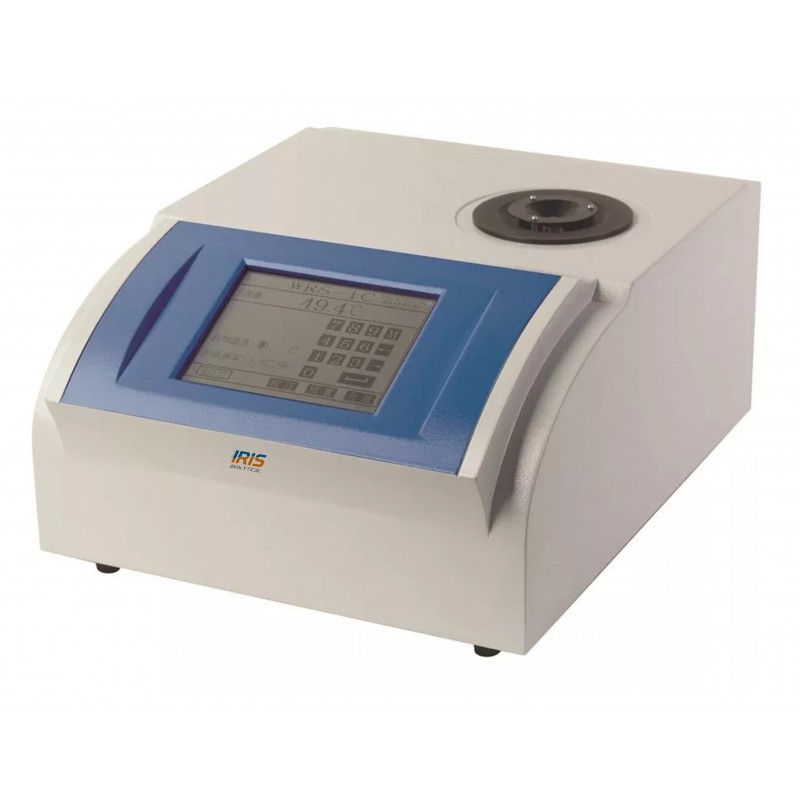

Digital Melting Point Apparatus MPA-200 Series

Digital Melting Point Apparatus MPA-200 Series ideal in the field of medicines, dry stuff, perfumes, and other organic crystal substances. The MPA-200 operated at room temperature to 320℃ range a 0.1 °C display resolution as well as a variable heating rate and footing in such a way that the melting temperature can be recorded and allows you to r...

  • Full Description
  • Specifications

Digital Melting Point Apparatus MPA-200 Series ideal in the field of medicines, dry stuff, perfumes, and other organic crystal substances. The MPA-200 operated at room temperature to 320℃ range a 0.1 °C display resolution as well as a variable heating rate and footing in such a way that the melting temperature can be recorded and allows you to review the process. Additionally, features including a video camera and a video replay function, FDA and CFR21 part 11 compliance. The temperature is selected, measured, and display digital making it accurate. Users can view with a magnifying lens to receive perfect observation. Designed for all laboratory needs with adequate requirements for sample processing.

  • Features with PID and PWM
  • LCD display
  • Temperature range: RT  to 400℃
  • Detection of melting point of substances
  • Multi point calibration standard
  • Portable and compact design
  • Storage data: 1000 sets
  • Support USB and RS232

Model

MPA-230

                      MPA-240

Temperature Range

RT to 320℃

RT  to 400℃

Accuracy

±0.4℃

Resolution

0.1℃

Display

 LCD display

Capillary Size

1.4 mm outer diameter or 1.0 mm inner diameter x 80 mm

Repeatability

0.3℃

Loading Height of Sample

3 mm

Linear Heating  Rate

0.2, 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0℃/min.

0.1 to 20℃/min.

Deviation Linear Heating  Rate

not more than 10%



Certifications

-

Storage

1000 sets

Interface

USB

USB and RS232

Catalogue No.

  5100530-04

 5100535-04

  • Request Information
  • Request Information

    * Required fields

      Catalogue No. Image Product Detail Availability Price
    (Excludes VAT)
    5100530-04

    Digital Melting Point Apparatus MPA-230 ideal in the field of medicines, dry stuff, perfumes, and other organic crystal substances.

    3-4 Weeks

    Price On Request

    5100535-04

    Digital Melting Point Apparatus MPA-240 ideal in the field of medicines, dry stuff, perfumes, and other organic crystal substances.

    3-4 Weeks

    Price On Request
