Model

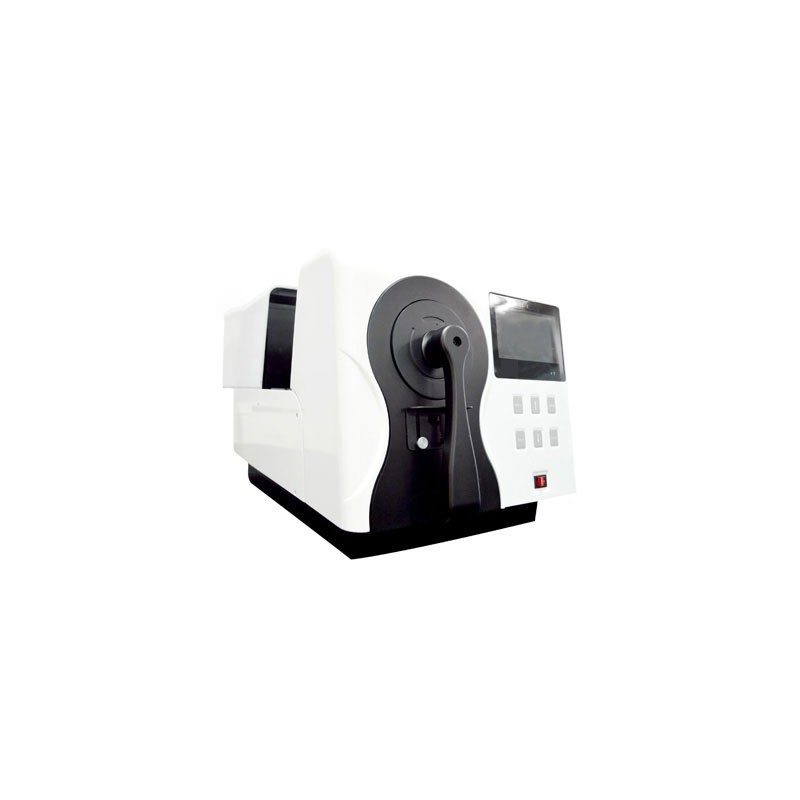

IRTS-1400

Wavelength

400 to 700 nm or custom(360 to 740 nm)

Repeatability

light splitting reflectivity: standard deviation within 0.08%

Chromaticity value: Standard deviation within ΔE*ab 0.015 * When a white calibration plate is measured 30 x at 5-second intervals after white calibration (max.0.03)

Sensor

dual optical path sensor

Wavelength Interval

10 nm

Temperature Range

15 to 2℃

Measurement Light Source

CLEDs(entire wavelength balanced LED light source)

Display Data

Reflectance and Transmittance graph/value, chromatic value, color difference values, color assessment results, color tendency, color simulation, manual input standard sample, generate measurement reports

Index

WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby),YI(ASTM D1925，ASTM E313-00,ASTM E313-73),Tint(ASTM E313-00,CIE,Ganz),Metamerism index Milm, Stick color fastness, Color fastness, APHA, Pt-Co, Gardner

Color Difference formula

ΔE*ab, ΔE*CH,ΔE*uv, ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00

ΔEab(Hunter),555color classification

Color Space

CIE-L*a*b,L*C*h, CIE-L*u*v, XYZ, Yxy, Transmittance, Hunterlab, Munsell MI,CMYK, RGB,HSB

Observer

2°/10°

Half spectral width

5 nm

Reflectivity range

0 to 200%

Reflectivity resolution

0.01%

Aperture

Large Aperture (LAV):2.54cm (=1inch) Medium Aperture (MAV):1.5cm(=0.6inch) Small Aperture (SAV):0.75cmx1.0cm(0.3inch x 0.4inch) Very Small Aperture (VSAV):0.3cmx0.8cm(0.12inch x 0.31inch)

Geometry

Reflectance: d/8(Diffused illumination, 8 degrees viewing)

Compatible with SCI/SCE Measurement ISO7724/1、DIN5033 Teil7、JIS Z8722 condition C、CIE No.15、ASTM E1164）transmission d/0(Diffused lighting, Vertical direction receiving)

Humidity

80%

Standard accessories

power line, color management software, drive software, USB cable, black/white calibration tile, 40x10 cuvette, cuvette support, verification certification

Interface

USB

Storage

Mass storage

Dimensions

583x330x304 mm

Catalogue No.

1501540-04
