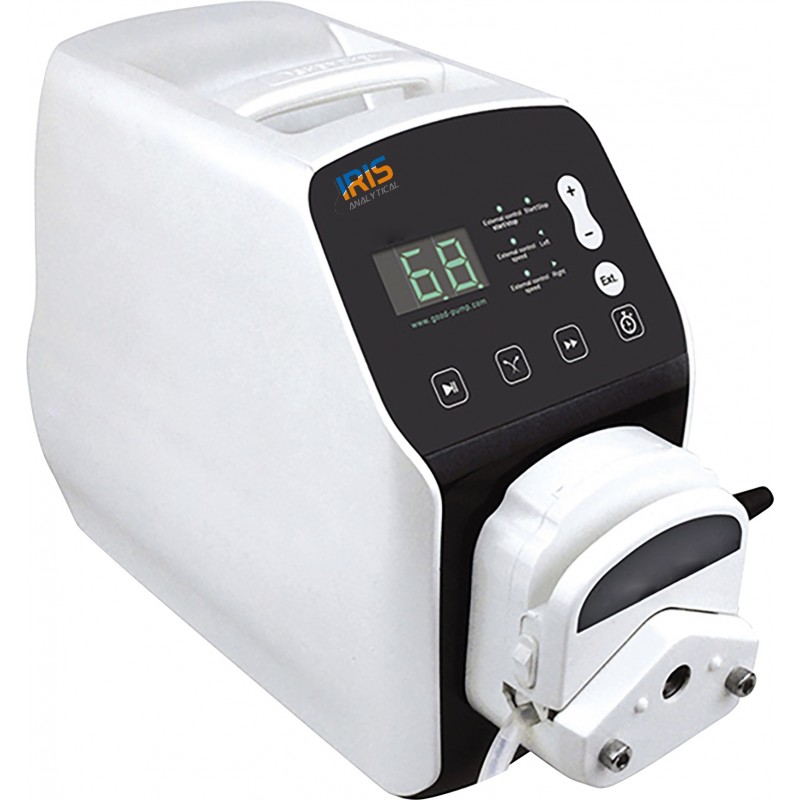

Basic Peristaltic Pump ISPP-1450S
Basic Peristaltic Pump ISPP-1450S

Basic Peristaltic Pump ISPP-1450S has 0.000829 to 2280 ml/min flow rates and excellent dosing that used for timer function of simple dispensing function along with RS232 standard interface along with optional RS485 Modbus interface communicator.

  • Support RS232 and RS485, the pump can be connected with PC to reach dispensing and filling function
  • 3...
  • Full Description
  • Specifications

Basic Peristaltic Pump ISPP-1450S has 0.000829 to 2280 ml/min flow rates and excellent dosing that used for timer function of simple dispensing function along with RS232 standard interface along with optional RS485 Modbus interface communicator.

  • Support RS232 and RS485, the pump can be connected with PC to reach dispensing and filling function
  • 3 Digital LED display the current speed
  • ABS plastic constructing material
  • A quick exchange of pump heads without the use of tools
  • The strong, powerful, regulated drive unit
  • Allow stacking of 4 pumps head for same drive, creating multichannel pump system
  • Easy installation and low maintenance condition
  • Materials have good rigidity and high precision
  • Mechanical keypad to control the start/stop, speed, and direction

Technical Specifications

Model

ISPP-1450S-01

ISPP-1450S-01

ISPP-1450S-01

ISPP-1450S-01

Flow rate (ml/min)

0.035 to 2280

0.85 to 1740

0.000829 to 49 (working speed ≤150 rpm)

0.000925 to 65(working speed ≤150 rpm)

Pump Head

I-955412

I-655300

IP1-IP12

IP1-IP12

Number of Rollers





10

6

Tubing Size (mm)

13, 14, 19, 16, 25, 17, 18

15, 24

Inner diameter: 0.13 to 3.13mm Wall thickness: 0.8 to 1mm

Inner diameter: 0.13 to 3.13mm Wall thickness: 0.8 to 1mm

Testing Time Range

0.5 s to 999 s

Operating Temperature

0 to 40°C

Speed Resolution

0.1 rpm when speed is 0 to 100, 1 rpm when speed is 100 to 600

Material

ABS plastic

Display

3 Digital LED

Control Method

Mechanical keypad

Start/Stop Direction Signal

Passive switch signal: foot pedal
Active switch signal: 24V

Outlet Pressure

0.1 MPa(0.8 to 1.0 mm wall thickness tubing) and 0.1 to 0.27(1.6 to 2.4 mm wall thickness)

IP-Rate

IP31

Keypad lifetime

300,000 times

Communication

RS232, RS485(Optional)Modbus protocol(RTU mode)

Power Consumption

< 50 W

Humidity

<  80%

Dimension

261.4×157.3×236.9 mm

Drive Weight

4.40 kg

Electrical Requirement

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.

 490054501



 490054502



 490055001



 490055002



 490055501



490055502

490056001

490056002
