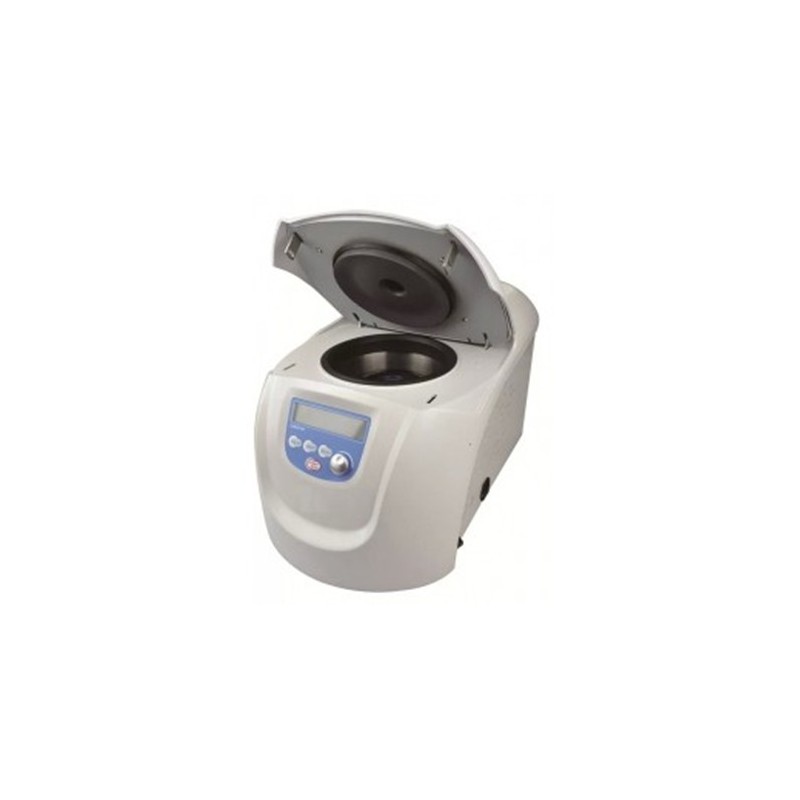

Microcentrifuge IBMC-6000 Series

Microcentrifuge IBMC-6000 Series is widely used in physical and chemistry analysis, biochemistry, cellular and molecular biology, clinical Labs and blood donation centers, and is ideal for high-end research applications i.e. sedimentation of cells and viruses, separation of sub-cellular organelles, isolation of macromolecules such as DNA, RNA, p...

  • Full Description
  • Specifications

Microcentrifuge IBMC-6000 Series is widely used in physical and chemistry analysis, biochemistry, cellular and molecular biology, clinical Labs and blood donation centers, and is ideal for high-end research applications i.e. sedimentation of cells and viruses, separation of sub-cellular organelles, isolation of macromolecules such as DNA, RNA, proteins or lipids.

  • 2-point lid-lock mechanism – ensures secure closure Automatic lid opening when the run is complete
  • High strength aluminum alloy rotor can be fully autoclaved with unlimited service life
  • Special multi-flow air cooling design helps keep lower rotor temperature
  • Intuitive symbols –display run status
  • Full-digit speed display (rpm/Rcf) – easy identification of parameters
  • Centrifuge goes into a self-diagnostics when switched on and then displays accumulative running time and last running parameters
  • The short spin function is used for quick spins by pressing and holding PULSE key
  • Special multi-flow air cooling design protects sensitive samples
  • FastTemp function for fast pre-cooling and maximum temperature accuracy inside the rotor

Precise control

  • Brushless DC motor accelerates quickly and effortlessly to the set speed
  • High accuracy of speed in ±20 rpm
  • An operation can be timed from 30 seconds to 99 minutes or used in continuous mode
  • The timer starts once the target speed reached, for accurate separation time

Ergonomic design

  • User-friendly large LCD display shows running information
  • Both RPM or G-force can be set and displayed
  • The parameters can be modified after the set speed is reached.
  • The short spin function is used for quick spins by pressing and holding PULSE key. The centrifuge speed can be accelerated and held at the target speed.
  • Automatic release of lid when the rotor stops to save processing time
  • Easy-to-read display and sound alerts

Model

IBMC-6024

IBMC-6024R

IBMC-6124

Max. capacity

5mL×18;0.2mL/0.5mL/1.5mL/ 2mL×24;0.5mL×36; PCR8×4

24 capillary tubes and 2ml×24 rotor

Max. speed rpm (Angle rotor)

15000rpm (200-15000rpm), increment:10rpm

15000rpm (200-15000rpm), increment:10rpm

200 to 14000 rpm

Max. RCF[×g]

21380×g, increment:10×g

21380×g, increment:10×g

18620×g

Interference suppression







Noise level at max. speed(approximately)

≤58

≤56



Revolution/rpm

±20 rpm

Temperature Range

N/A

-20oC to 40Oc



Run Time

30sec to 99min-HOLD (Continuous operation)

Driving Motor

Brushless DC motor

Weight including rotor







Dimensions

280×364×266 mm

338×580×324 mm

280×364×274 mm

Weight

12kg

30kg

10 kg

Electrical Requirements

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.

 140750501

 140750502

 140751001

 140751002

 140751501

 140751502
