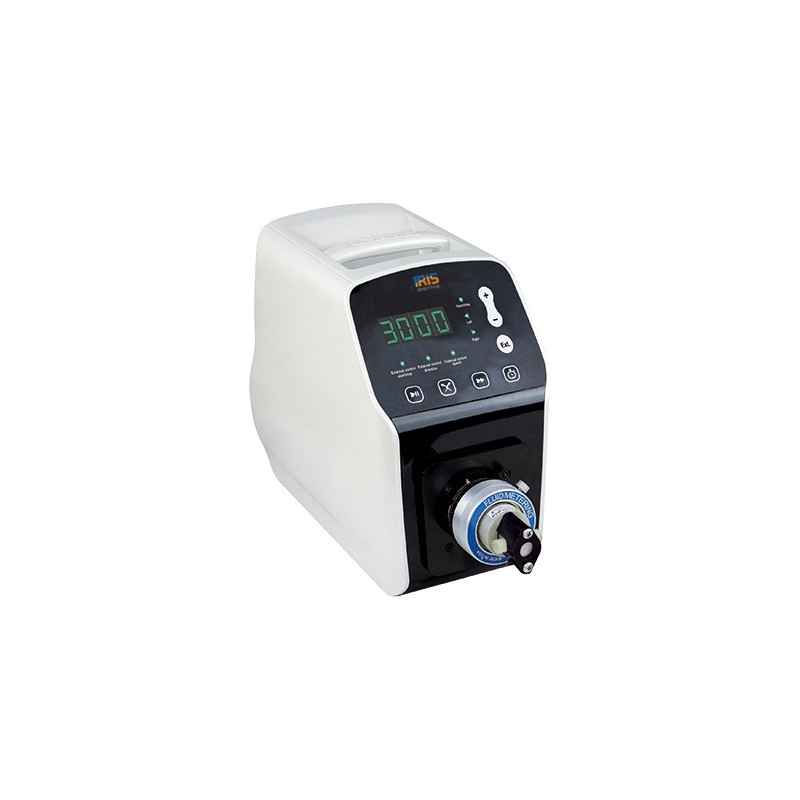

Flow Rate Piston Pump IPP-600 Series

Flow Rate Piston Pump IPP-600 Series is basically used in a laboratory. The major features of these pumps: flow rate or motor speed display, fixed angle and volume, fixed volume measurement, time start and stop. Run multichannel pumping with accurate flow control also features with ABS plastic and 4.3 inch LCD screen display with 3 different motor and flow rates of 0 to 2300 ml/min. Suitable for transferring high temperature, high pressure, and viscous liquid.

Flow Rate Piston Pump IPP-645L has a 0.1 to 600 rpm speed range with stepper motor along with RS232, RS485 Modbus interface communicator.

Flow Rate Piston Pump IPP-655M has a 0.1 to 1800 rpm speed range with servo motor along with RS232, RS485 Modbus interface communicator.

Flow Rate Piston Pump IPP-665H has a 100 to 3000 rpm speed range with Brushless dc motor along with RS232, RS485 Modbus interface communicator.

• Allow stacking of 3 different motor and flow rate of 0 to 2300 ml/min
• 4.3inch LCD screen display
• Suitable for high pressure and temperature
• High repeatability on all channels
• The directional signal comes with passive switch signal like foot pedal along with optional active switch signal: 5V, 12V, 24V
• Low noise and vibration
• Touch screen + Mechanical keypad are used for the control method
• Easy installation and low maintenance condition
• Materials have good rigidity and high precision along with resisting organic solvent corrosion property
• Adjust the pump as per the need
