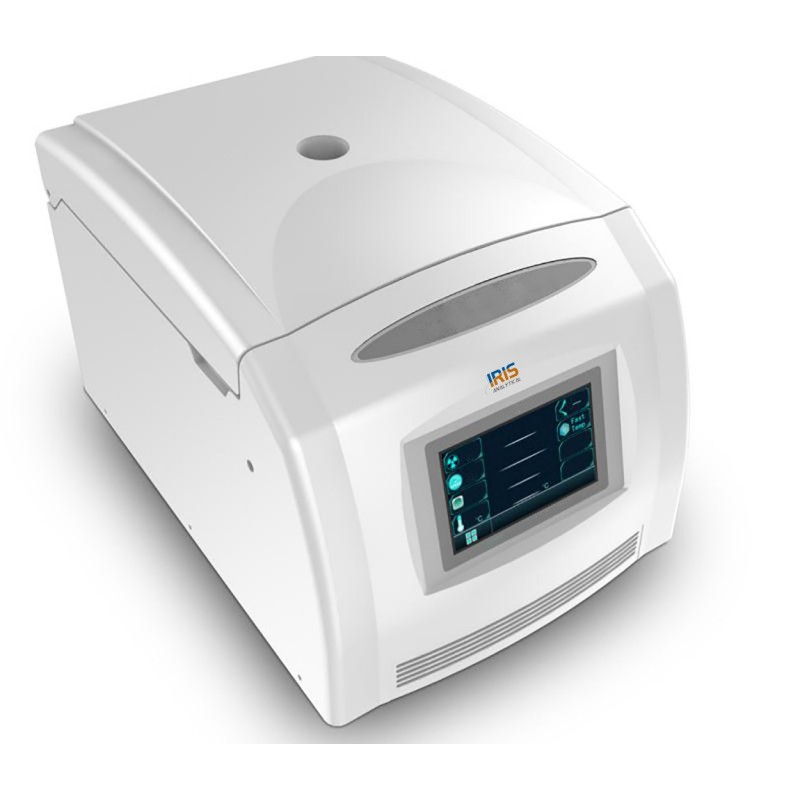

High Speed Refrigerated Microcentrifuge IBMC-8000 Series

High-Speed Refrigerated Microcentrifuge IBMC-8000 Seriesdesigned with Frequency conversion motor drive. Available capacity 24x1.5ml with maximum speed ranging 15000 rpm. Accommodates standard rotor: 24x1.5ml fixed-angle rotor and selectable rotor: 4x0.2ml x8 PCR tubes. The IBMC-8000 is sealed and can function at high RPM owing to the ability to ...

  • Full Description
  • Specifications

High-Speed Refrigerated Microcentrifuge IBMC-8000 Seriesdesigned with Frequency conversion motor drive. Available capacity 24x1.5ml with maximum speed ranging 15000 rpm. Accommodates standard rotor: 24x1.5ml fixed-angle rotor and selectable rotor: 4x0.2ml x8 PCR tubes. The IBMC-8000 is sealed and can function at high RPM owing to the ability to reduce the heat produced by higher rotation speeds worked under temperature range -10℃ to 35℃.

  • Available with a different  profile for acceleration and deceleration, high efficiency
  • New frequency conversion driving motor
  • Allow automatic identification system for the magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety
  • Electronic door lock, full steel door cover protection, superior to industrial standards and Password lock function
  • Microcomputer controlled
  • Protective electronic with  lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming
  • Designed digital LCD screen with multi-functional knob combination
  • Eco friendly with high-efficiency refrigerating system
  • Centrifugal chamber is constructed with stainless steel
  • Designed with air exhaust temperature and low noise compressor
  • CFC-free refrigerants, refrigerating/heating double loop
  • Small footprint and easy handling

Model

IBMC-8100

IBMC-8400

Capacity

24x1.5ml

Max RCF

18800xg

21630xg

Speed Range

14000 rpm

15000 rpm

Noise

≤55dB(A)

Rotor

Standard rotor:24x1.5ml Fixed-angle Rotor

Selectable rotor: 4x0.2ml x8 PCR tubes

Temperature Range

-10℃ to 35℃

Revolutions/min

±10 rpm

Temperature Accuracy

±1℃

 Timer

1 to 999min, 59s

Dimension

400x285x285 mm

Weight

19 kg

Electrical Requirement

AC 220V 50HZ 15A

Catalogue No.

140850502

140851002

  • Request Information
  • Request Information

    * Required fields

      Catalogue No. Image Product Detail Availability Price
    (Excludes VAT)
    140850502

    High Speed Refrigerated Microcentrifuge IBMC-8100 designed with Frequency conversion motor drive. Available capacity 24x1.5ml with maximum...

    3-4 Weeks

    $5,300.00

    140851002

    High Speed Refrigerated Microcentrifuge IBMC-8400 designed with Frequency conversion motor drive. Available capacity 24x1.5ml with maximum...

    3-4 Weeks

    Price On Request
