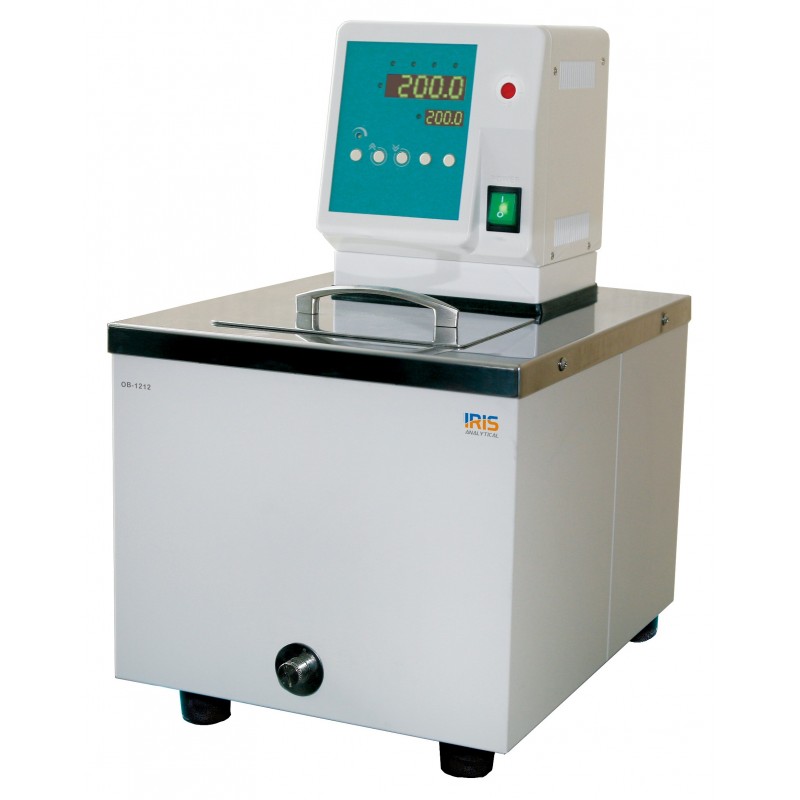

Oil Baths

The Iris Oil Bath is designed to provide excellent temperature uniformity and smooth working for various laboratory test procedures. Easy to adjust and operate. It reaches a maximum of 200ºC/300ºC and operates safely for all your samples. Digital Oil Bath is suitable for high temperature applications using oil as a thermal media up to 250°C such...

Full Description
Specifications

Multi display(LED), resolution 0.1℃
Temperature control of external system
PID temperature control
Low noise during the operation
Built-in cooling coil
Alarm setting function for temperature and time
Adjustable high temperature cut-off by heater and bath temperature sensor
Dry running protection
Protection from excess electric current
Water level sensor(Option)

Model	OB-1212		OB-1312		OB-1226		OB-1326
Volume	12L		12L		26L		26L
Temperature Range	Amb~200.0℃		Amb~300.0℃		Amb~200.0℃		Amb~300.0℃
Filling volume :	12 litres		12 litres		26 litres		26 litres
Working temp. range	Amb ℃~+200.0℃
Temperature setting	0.1℃
Temp. stability	±0.02℃
Temp. uniformity	±0.1℃
Temp. controller	PID temperature control
Heat cap.	1800W		2000W		1800W		3000W
Pump capacity Flow rate	14 I/min
Pump Capacity Flow Rate (L/min)	14 L/min, 4M
Pressure	0.6 bar
Pump ln/Out	12.7Ø
Bath opening/Filling bath depth volume(W×D×H)(cm)	15×10×19.5				21 x 16 x 20
Dimensions(W×D×H)(cm)	29×35×45				35 x 56 x 45
Bath size(W×D×H)(cm)	20×30×19.5				29×50×19.5
Weight (kg)	16				18
External PT100 sensor
Interface	RS232
Net Weight	16 kg		16kg		18 kg		18kg
Gross Weight
Electrical Requirement	110V	220V	110V	220V	110V	220V	110V	220V
Catalogue No.

Request Information

Oil Bath OB-1000 series

Provide uniform heating distribution throughout the temperature range. Built with cooling coil and PID temperature control for ease of use....

Catalogue No.	Product Detail	Availability	Price (Excludes VAT)
1003505-1	Oil Baths OB-1212(110V) Provide uniform heating distribution throughout the temperature range. Built with cooling coil and PID temperature control for ease of use.	2 - 3 weeks	$2,220.00 Add to Cart
1003505-2	Oil Baths OB-1212(220V) Provide uniform heating distribution throughout the temperature range. Built with cooling coil and PID temperature control for ease of use.	2 - 3 weeks	$2,220.00 Add to Cart
1003510-1	Oil Baths OB-1312(110V) Provide uniform heating distribution throughout the temperature range. Built with cooling coil and PID temperature control for ease of use.	2 - 3 weeks	$2,220.00 Add to Cart
1003510-2	Oil Baths OB-1312(220V) Provide uniform heating distribution throughout the temperature range. Built with cooling coil and PID temperature control for ease of use.	2 - 3 weeks	$2,220.00 Add to Cart
1003515-1	Oil Baths OB-1226(110V) Provide uniform heating distribution throughout the temperature range. Built with cooling coil and PID temperature control for ease of use.	2 - 3 weeks	Price On Request
1003515-2	Oil Baths OB-1226(220V) Provide uniform heating distribution throughout the temperature range. Built with cooling coil and PID temperature control for ease of use.	2 - 3 weeks	Price On Request
1003520-1	Oil Baths OB-1326(110V) Provide uniform heating distribution throughout the temperature range. Built with cooling coil and PID temperature control for ease of use.	2 - 3 weeks	Price On Request
1003520-2	Oil Baths OB-1326(220V) Provide uniform heating distribution throughout the temperature range. Built with cooling coil and PID temperature control for ease of use.	2 - 3 weeks	Price On Request
