Refrigerated & Heating Circulators BS-2012(110V/60Hz)

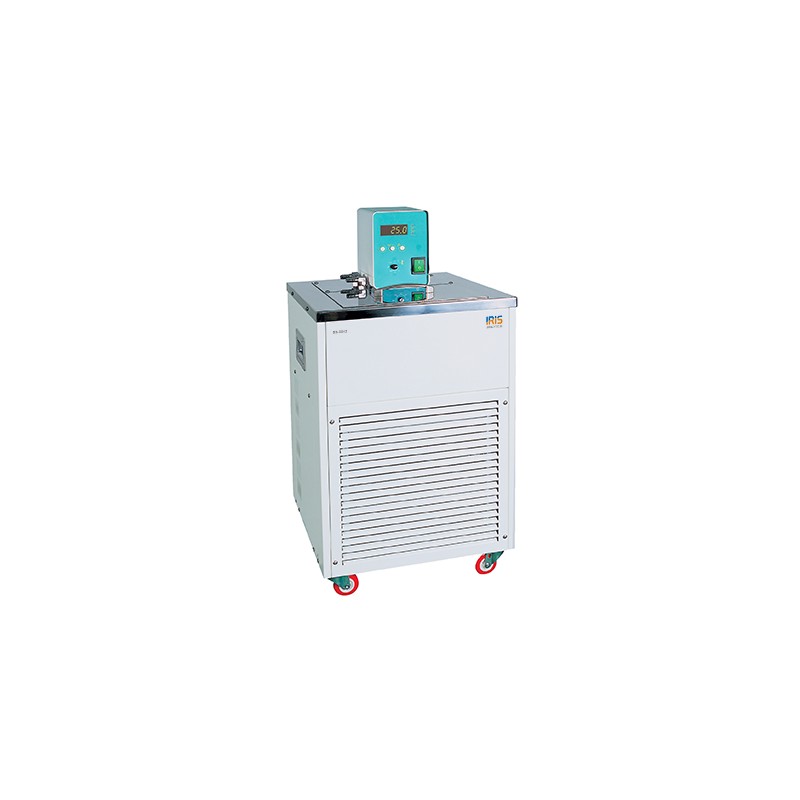

Refrigerated & Heating Circulators BS-2012(220V/50Hz)

Catalogue number : 10200515-02

Our BS model equipped with high cooling and heating capacity to ensure quick heat-up and cooling times. Designed with suitable cleaning of dust by detachable venting grid to maintain cooling function along with excellent dry running protection. Suitable for application including measuring cells, Fermenters,


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data

Our BS model equipped with high cooling and heating capacity to ensure quick heat-up and cooling times. Designed with suitable cleaning of dust by detachable venting grid to maintain cooling function along with excellent dry running protection. Suitable for application including measuring cells, Fermenters,

Electrophoresis chambers, Polarimeters Chromatography columns, Photometers, Evaporators, and Viscometers. Our Refrigerated & Heating Circulators designed with variable coolant refrigeration technology from -20 to 100°C and -35 to 100°C.

The large LED Temperature display is easily viewed across the lab. The unit built in such a way that it assures protection from excess electric current during the experiment.

  • LED Temperature display with resolution0.1˚C
  • PID temperaturecontrol
  • Temperature control of externalsystem
  • Low noise during theoperation
  • Removableventinggridforeasycleaningtomaintaincoolingfunction
  • Adjustable high temperature cut-off by heatertemperature
  • Dry runningprotection
  • Waterlevelsensor(Option)
  • Protection from excess electriccurrent
  • Applications: Measuringcells, Fermenters, Electrophoresis chambers, PolarimetersChromatographycolumns, Photometers, Evaporators, and Viscometers

Model

BS-2004

BS-2008

BS-2012

BS-2020

BS-3508

BS-3512

Capacity

4 L

8 L

12 L

20 L

8 L

12 L

Working Temp Range

-20.0 to 100.0

-35.0 to 100.0

Temperature Setting

0.1 ℃

Temp Stability ℃

±0.02 ℃

Temp Uniformity ℃

±0.1 ℃

Temperature Controller

PID Temperature Control

℃ Heat Capacity

1000 W

1000 W

1400 W

1800 W

                       1000 W

1800 W

Cooling Capacity (+20℃)

180 W

260 W

380 W

800 W

150 W

800 W

Pump Capacity Flow Rate

9 liter/min

Pressure

0.35 bar

Pump In/Out Diameter

10.9Ø

Bath opening bath

9x9x15   cm

17x17.5x15 cm

25x17x15  cm

30x20.5x20 cm

17x17.5x15 cm

25x17x15 cm

Dimensions

19x34.5x53 cm

22x38x54 cm

33x40.5x73.2 cm

38.5x45.5x78 cm

33x41x79 cm

38.5x45.5x78 cm

Net Weight

22 kg

26 kg

37.2 kg

45.5 kg

37.2 kg

45.5 kg

Electrical Requirement

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.

10200505-1

10200505-2

10200510-01

10200510-02

10200515-01

10200515-02

10200520-01

10200520-02

10200525-01

10200525-02

10200530-01

10200530-01
