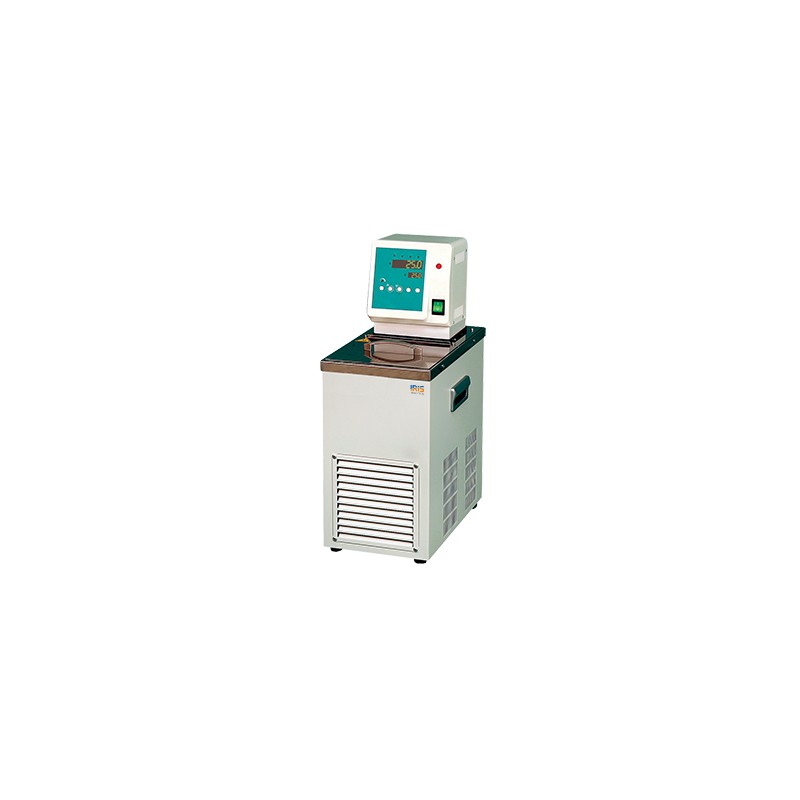

Refrigerated & Heating Circulators BP-80(110V/60Hz)
Refrigerated & Heating Circulators BP-80(110V/60Hz)

Catalogue number : 10201005-01

With coolant refrigeration technology from -20 to 160°C. Delivers excellent performance for routine and sophisticated applications application including measuring cells, Fermenters, Electrophoresis chambers, Polarimeters Chromatography columns, Photometers, Evaporators, and Viscometers.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data

With coolant refrigeration technology from -20 to 160°C. Delivers excellent performance for routine and sophisticated applications application including measuring cells, Fermenters, Electrophoresis chambers, Polarimeters Chromatography columns, Photometers, Evaporators, and Viscometers.

We also offer comprehensive preventative maintenance and options for all brands of Refrigerated & Heating Circulators. Our innovative Refrigerated & Heating offer solutions to a number of challenging applications with ranges come with six models- 8 L, 12 L, 20 L, 30 L, 30 L, and 30 L, for all competitive, and low price.

  • LED Temperature display with resolution0.1˚C
  • PID temperaturecontrol
  • Temperature control of externalsystem
  • Low noise during theoperation
  • Removableventinggridforeasycleaningtomaintaincoolingfunction
  • Adjustable high temperature cut-off by heatertemperature
  • Dry runningprotection
  • Waterlevelsensor(Option)
  • Protection from excess electriccurrent
  • Applications: Measuringcells, Fermenters, Electrophoresis chambers, PolarimetersChromatographycolumns, Photometers, Evaporators, and Viscometers

Model

BP-80

BP-120

BP-200

BP-300

BP-400

BP-500

Capacity

8 L

12 L

20 L

30 L

30 L

30 L

Working Temp Range

-20 to 160°C

Temperature Setting

0.1

Temp Stability

±0.02

Temp Uniformity

±0.1

Temperature Controller

PID Temperature Control

Heat Capacity

1000 W

1000 W

1800 W

1800 W

2000 W

2500 W

Cooling Capacity (+20)

380 W

450 W

680 W

1300 W

1550 W

1900 W

Pump Capacity Flow Rate

14 liter/min

Pressure

0.6 bar

Pump In/Out Diameter

12.7Ø

Bath opening

17x17.5x15  cm

25x17x15 cm

30x20.5x20 cm

30x31x22 cm

30x31x22  cm

30x31x22 cm

Dimensions

22x39x59 cm

35x40.5x79 cm

38.5x45.5x84 cm

45x63x95 cm

45x63x95 cm

45x63x95 cm

Net Weight

28 kg

36 kg

49 kg

87 kg

89 kg

91 kg

Electrical Requirement

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.

10201005-01

10201005-02

10201010-01

10201010-02

10201015-01

10201015-02

10201020-01

10201020-02

10201025-01

10201025-02

10201030-01

10201030-02
