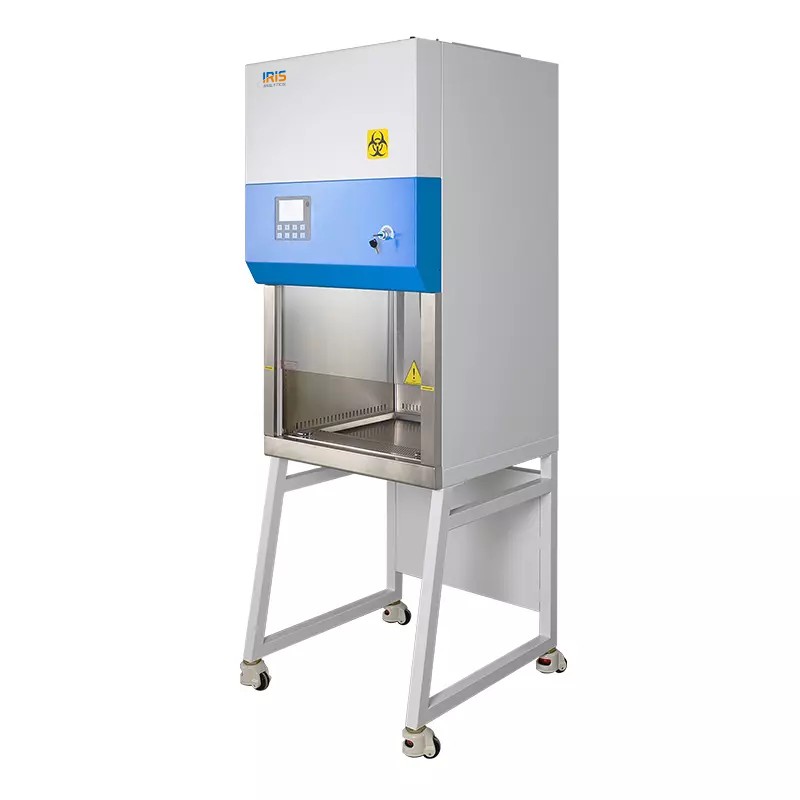

Biological Safety Cabinet IBC-100A2(220V/50Hz)
Biological Safety Cabinet IBC-100A2(220V/50Hz)

Catalogue number : 5200505-02

We provide a primary containment working area containing an airflow system: 70% air recirculation, 30% air exhaust, for the research and other cell culturing applications.

$4,590.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data

We provide a primary containment working area containing an airflow system: 70% air recirculation, 30% air exhaust, for the research and other cell culturing applications.

Accommodates centrifugal fan, speed, adjustable, motorized front window. We provide a safe and secure laboratory workspace using an optimum airflow design combined with an integrated H14 HEPA filter. This H14 traps the toxic particle coming from outside.

Our A2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide. Built-in 3 protection shields including operator, sample, and environment.

Accessories

 LCD Display

    Work Zone

    UV lamp

   Waterproof Sockets

Standard Accessories

Optional Accessories

Fluorescent lamp

Base stand

UV lamp - 2

Universal caster with brake and levelling feet

Remote control



Waterproof sockets - 2



  • Suitable for limited space
  • Features with centrifugal fan, speed, H14 HEPA filter
  • Friendly big LCD display to users to check the work status of the cabinet: inflow and downflow velocity, work area temperature, and humidity, filter pressure, UV and filter working time, filter life indicator so on
  • Also, have time reserve function
  • It comes with remote control for easier working
  • The cabinet designed with a motorized front window along with voice prompt function: Airflow alarm, filter replacing alarm, and front window height alarm

Model

IBC-100A2

Front Window

Motorized 2 layer laminated toughened glass  ≥ 5mm. Anti UV.

Alarm (audio & Visual)

Filter replacement, window over height, abnormal air flow velocity.

Maximum Opening

370 mm

In Flow Velocity

0.53±0.025 m/s

Down flow Velocity

0.33±0.025 m/s

Control System

Microprocessor

Sockets

2 sockets: 500 W

Display

LCD display

Illumination

≥1000 Lux

HEPA Filter

Two, 99.999% efficient at 0.3μm. Filter life indicator

UV lamp

15W*1

Fluorescent Lamp

40W*1

Noise

EN12469 ≤ 58 dB / NSF49 ≤ 61 Db

Power Consumption

500 W

Internal Dimension

600x500x540 mm

External Dimension

700x650x1230 mm

Packing with base stand Dimension

860x960x1450 mm

Packing without base stand Dimension

860x800x1450 mm

Gross Weight with base stand

196 kg

Gross Weight without base stand

164 kg

Electrical Requirement

220V/50Hz

Catalogue No.

5200505-02
