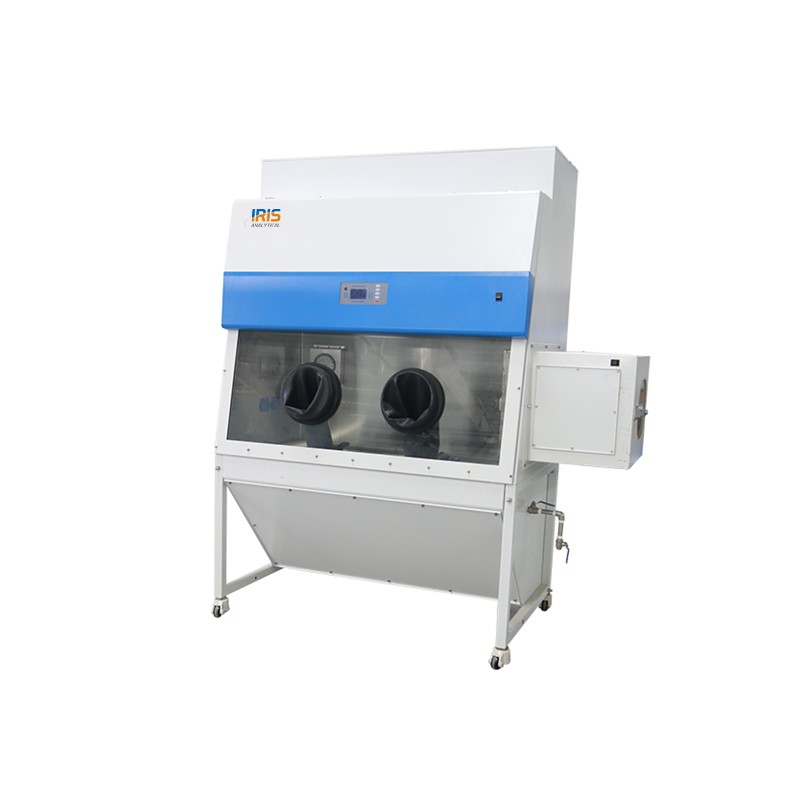

Biological Safety Cabinet IBC-1000A3 (220V)
Biological Safety Cabinet IBC-1000A3 (220V)

Catalogue number : 5202505-02

Offer enclosed and gas-tight ULPA filtered supply and exhaust air for aseptic processes used in the field of research and cell culture applications. Often includes handling of live viruses which may pose a critical risk to users and the environment.

$21,000.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data

Offer enclosed and gas-tight ULPA filtered supply and exhaust air for aseptic processes used in the field of research and cell culture applications. Often includes handling of live viruses which may pose a critical risk to users and the environment.

The negative pressure of cabinet 120 pa, and airflow is maintained by a dedicated exterior exhaust system.

Suitable for minimizing the hazards particle in working with biosafety agents of level 1, 2, 3, and 4, protect the operator from contact to infective microbes that can be produced when using materials containing transmissible agents.

Work is performed with long-sleeved gloves. It can protect the operator, product, and environment.

Accessories

  Pass Box

  Pressure Meter

   LCD Display

   UV Lamp

Standard Accessories

Gloves

1 pair

Fluorescent lamp

1 pc

UV lamp

4 pc

Remote control

1 pc

Pressure meter

1 pc

Drain valve

1 pc

  • The drain air is double-filtered through high-quality ULPA filters with typical efficiency of 99.999% for 0.1 to 0.2μm particles
  • Its angled cabinet from front certifies an ergonomic working posture
  • The cabinet UV lamp ensures sterilization
  • Accommodated with double doors interlock function and UV lamp

Model

IBC-1000A3

Front Window

8 mm toughened glass, anti-ultraviolet radiation

Alarm (audio & Visual)

Audio and visual alarm, abnormal pressure; filter replacement

Air Flow Volume

440 to 870 cfm

Display

LCD display

Illumination

≥ 1000 lux

Pressure

≥ negative120 Pa

Gloves

One pair of 800mm butyl rubber gloves

Pre-filter

Polyester fiber, washable

ULPA Filter

Air supply filter: Efficiency 99.999% at 0.12μm

Material (work zone)

304 stainless steel

UV lamp

30W*1, 8W*1, Emission of 253.7 nm

Fluorescent Lamp

28W*2

Noise

NSF 49 ≤61dB/EN 12469≤48Db

Power Consumption

700 W

Internal Dimension

1240x650x650 mm

External Dimension

1720x850x2100 mm

Packing Dimension

1850x1080x2280 mm

Gross Weight

395 kg

Electrical Requirement

220V

Catalogue No.

5202505-02
