Home >> >>>Mini Centrifuges ICP-110(100V/50Hz)

Mini Centrifuges ICP-105(100V/50Hz)

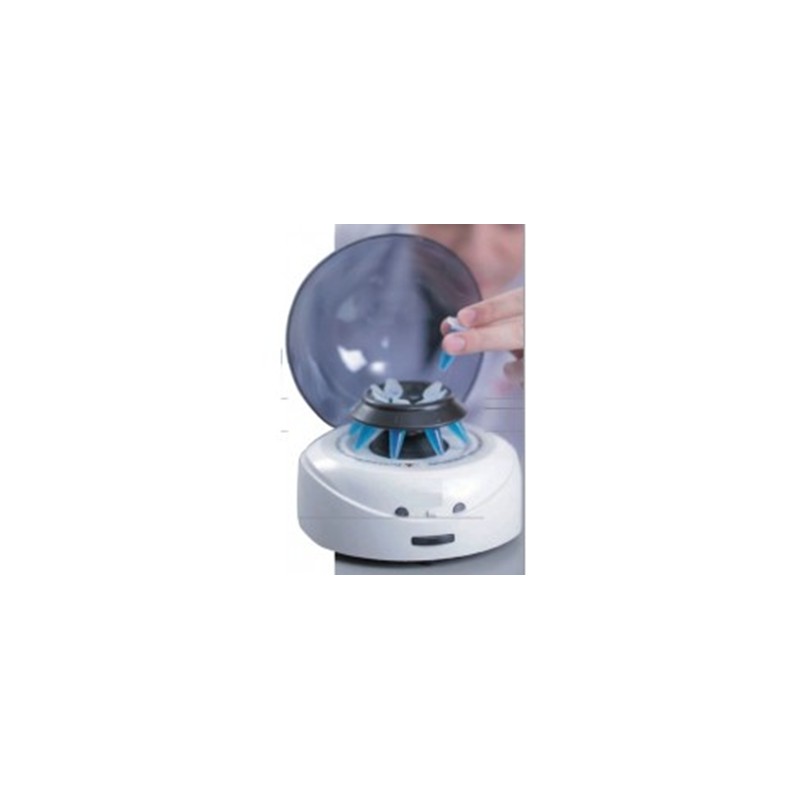

Mini Centrifuges ICP-110(100V/50Hz)

Catalogue number : 140051501

Mini Centrifuges ICP-110 is ideal for centrifugation of microcentrifuge tubes and PCR strips for microfiltration and quick spinning fluid down from tube caps and walls.  Their small size allows them to easily fit next to you at your bench or to fit into tight spaces like PCR workstations or under hoods.

$695.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Specifications
  • Technical Data

Mini Centrifuges ICP-110 is ideal for centrifugation of microcentrifuge tubes and PCR strips for microfiltration and quick spinning fluid down from tube caps and walls.  Their small size allows them to easily fit next to you at your bench or to fit into tight spaces like PCR workstations or under hoods.

ICP-110 features a quick-release rotor adapter (no tools required) that accommodates either an 8-Place tube of 0.2/0.5/1.5/2.0ml or 0.2ml x 16 PCR strips or 0.2mlx2 PCR 8 strips rotor. To prevent accidental opening during operation. Designed with an innovative dual safety lock lid mechanism that engages once the unit begins operation. To open, simply press the lid release (blue button) located on the front of the centrifuge. All units feature CE compliant certifications and a worldwide voltage rating (100–240V).

  • Ideal for microfiltration and quick spin-downs
  • Easy-to-use with dual start/stop function
  • 5000rpm/7000rpm/10000rpm fixed speed
  • Equipped with 2mL x 8 and PCR8 x 2 rotors
  • Quiet running, noise level ≤45 dB
  • Rotor change without tools
  • Accelerates and brakes in seconds
Product Type Mini Centrifuge
Model ICP-110
Speed Range (rpm) 10,000 rpm
Max RCF 5460 x g
Capacity 0.2/0.5/1.5/2.0mLx8; 0.2ml_x16 PCR strips or 0.2ml_x2 PCR 8 strips
Drive System DC Motor
External Dimemsions (HxLxW) mm 160 x 170 x 122 mm
Net Weight (kg) 0.5 kg
Power 105 W
Electrical Requirements 100V/50Hz
Catalogue No. 140051501

Model

ICP-105

ICP-107

ICP-110

Rotor. Capacity

0.2/0.5/1.5/2.0mLx8;

0.2ml_x16 PCR strips or

0.2ml_x2 PCR 8 strips

0.2/0.5/1.5/2.0mLx8;

0.2ml_x16 PCR strips or

0.2ml_x2 PCR 8 strips

0.2/0.5/1.5/2.0mLx8;

0.2ml_x16 PCR strips or

0.2ml_x2 PCR 8 strips

Max. speed rpm (Angle rotor)

5,000 rpm

7,000 rpm

10,000 rpm

Max. RCF[×g]

1360 x g

2680 x g

5460 x g

Run Time

Continuous operation

Continuous operation

Continuous operation

Driving Motor

DC Motor

DC Motor

DC Motor

Noise level at max. speed(approximately)

<45 Db

<45 Db

<45 Db

Power consumption drive

40W

100W

105W

Weight including rotor

0.5 kg

0.5 kg

0.5 kg

Net Weight

0.5 kg

0.5 kg

0.5 kg

Dimensions

160 x 170 x 122 mm

160 x 170 x 122 mm

160 x 170 x 122 mm

Electrical Requirements

100V/50Hz

240V/60Hz

100V/50Hz

240V/60Hz

100V/50Hz

240V/60Hz

Catalogue No.

140050501

140050502

140051001

140051002

140051501

140051502
