Home >> ProductsProducts by CategoryCentrifugesMicrocentrifuge IBMC-3015(110/50Hz)
View larger
Catalogue number : 140600501
Microcentrifuge IBMC-3015 is ISO9001, CE, and FDA certify programmable micro refrigerated centrifuge and ideal for collecting microorganisms, cell debris, cells, large organelles, sulphate precipitates, and immune deposits, etc. small footprint of capacity up to 36x1.5 ml/2.2ml with maximum speed ranging 16500 rpm.
- Product Information
- Features
- Specifications
- Technical Data
- Accessories
Microcentrifuge IBMC-3015 is ISO9001, CE, and FDA certify programmable micro refrigerated centrifuge and ideal for collecting microorganisms, cell debris, cells, large organelles, sulphate precipitates, and immune deposits, etc. small footprint of capacity up to 36x1.5 ml/2.2ml with maximum speed ranging 16500 rpm. Microcomputer control, DC brushless motor. Features with LCD touch screen with multi-functional knob combination parameters. Available with 9 profiles for acceleration and for deceleration with high efficiency. For safety we introduced electronic door lock function and, imbalance detection, over-speed protection, inching function, short-spin function.
Accessories
Rotors
|
Model |
IBMC-3015 |
|
Rotor |

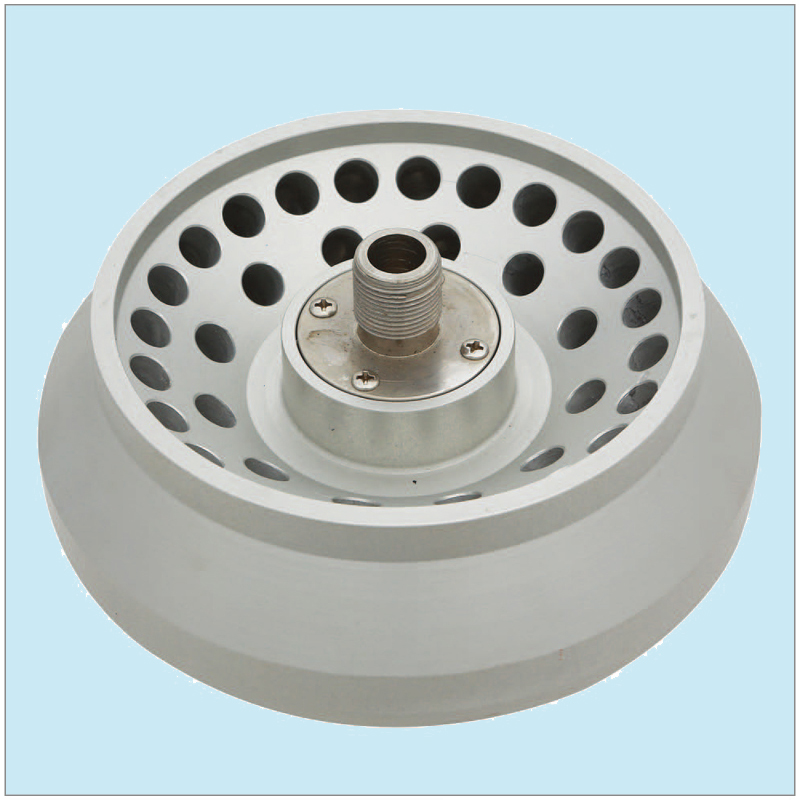

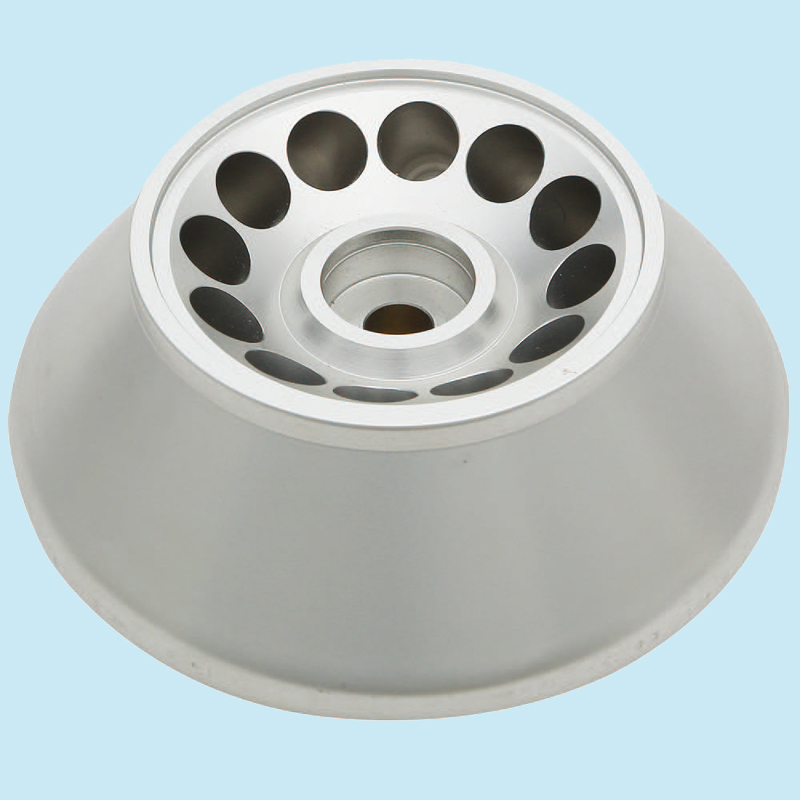

Rotor 1:1.5/2.2ml×12; 16500rpm;18360×g Rotor 2:5ml×12; 12000rpm;10142×g Rotor 3:1.5/2.2ml×24;15000rpm;21530×g Rotor 4:1.5/2.2ml×36; 11000rpm;10790×g Rotor 5: 0.5ml×48; 12000rpm;10920×g Rotor 6:0.2ml×8×3;15000rpm;13800×g Rotor 7:0.5ml×18; 16000rpm;15300×g |
- Display LCD screen and touch panel
- DC brushless motor
- ISO9001, CE, and FDA certify
- Great speed accuracy
- Low noise: <65dB(A)
- Constant operation
- Easy, convenient and programmable operations
- Automatic storage of data
- Real time conversation of speed and RCF is suitable for operation
- Equipped with self-locking device
- Automatic alarm device
- Over speed safety device
- User friendly interface
| Product Type | Micro Centrifuge |
| Model | IBMC-3015 |
| Speed Range (rpm) | 16500 rpm |
| Max RCF | 21532×g |
| Capacity | 36x1.5 ml/2.2ml |
| Display | LCD |
| Timer | 1min to 99h, 59min |
| Certifications/Compliance | ISO9001, CE, and FDA |
| External Dimemsions (HxLxW) mm | 280×540×300 mm |
| Net Weight (kg) | 30 kg |
| Shipping Dimensions (HxLxW) mm | 400×660×400 mm |
| Electrical Requirements | AC110/50Hz, 10A, |
| Catalogue No. | 140600501 |
|
Model |
IBMC-3015 |
IBMC-3017 |
||
|
Capacity |
36x1.5 ml/2.2ml |
1.5ml/2.2ml×36 |
||
|
Max Speed |
21532×g |
21532×g |
||
|
Max RCF |
16500 rpm |
17000 rpm |
||
|
Revolution/rpm |
± 30rpm |
|||
|
Noise |
<65dB(A) |
|||
|
Time Setting |
1min to 99h, 59min |
|||
|
Certification |
ISO9001, CE, and FDA |
|||
|
Display |
LCD |
|||
|
Dimension |
280×540×300 mm |
|||
|
Packing Size |
400×660×400 mm |
480×670×585 mm |
||
|
Weight |
30 kg |
|||
|
Electrical Requirement |
AC110/50Hz, 10A, |
220V/60Hz, 10A |
AC110/60Hz, |
220V/50Hz |
|
Catalogue No. |
140600501 |
140600502 |
140601001 |
140601002 |
| Model | Image | Name | Product Detail | Availability | Price | Action |
| 140600501 |
|
Angle Rotor 1 |
1.5/2.2ml×12; 16500rpm; 18360×g |
3-4 Weeks |
|
|
| 140600501 |
|
Angle Rotor 2 |
5ml×12; 12000rpm;10142×g |
3-4 Weeks |
|
|
| 140600501 |
|
Angle Rotor 3 |
1.5/2.2ml×24;15000rpm;21530×g |
3-4 Weeks |
|
|
| 140600501 |
|
Angle Rotor 4 |
1.5/2.2ml×36; 11000rpm;10790×g |
3-4 Weeks |
|
|
| 140600501 |
|
Angle Rotor 5 |
0.5ml×48; 12000rpm;10920×g |
3-4 Weeks |
|
|
| 140600501 |
|
Angle Rotor 6 |
0.2ml×8×3;15000rpm;13800×g |
3-4 Weeks |
|
|
| 140600501 |
|
Angle Rotor 7 |
0.5ml×18; 16000rpm;15300×g |
3-4 Weeks |
|
