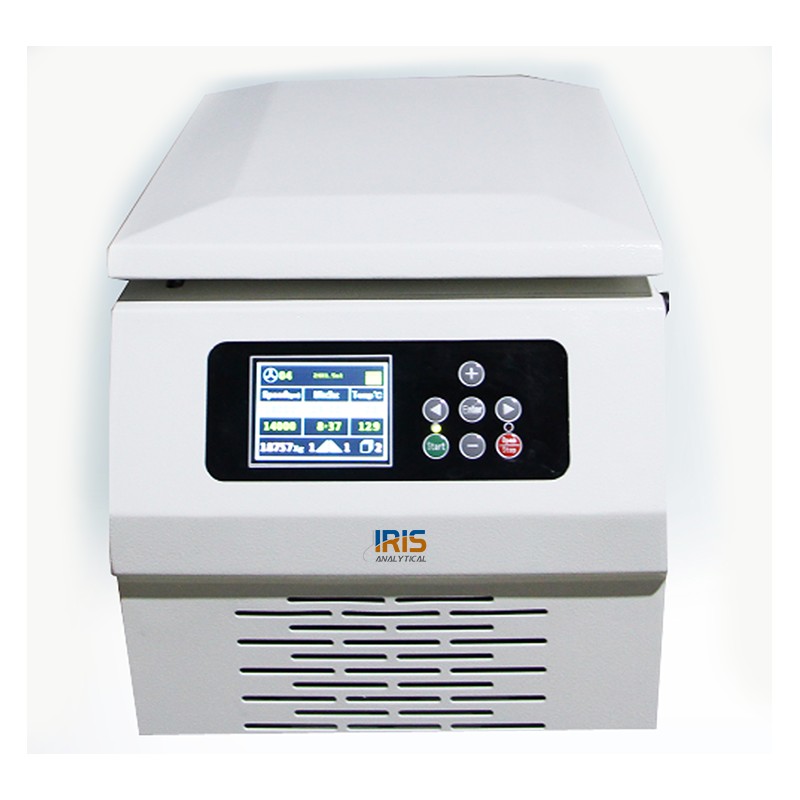

Microcentrifuge IBMC-5160R
Microcentrifuge IBMC-5160R

Catalogue number : 140702002

Microcentrifuge IBMC-5160R  design with interchangeable rotors for procedure with 1.5 ml microtubes and 0.5 ml PCR strip tubes with adjustable timing and RPM during operation anytime, as well as to check centrifugal force without stopping the machine.

$391,100.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Specifications
  • Technical Data
  • Accessories

Microcentrifuge IBMC-5160R  design with interchangeable rotors for procedure with 1.5 ml microtubes and 0.5 ml PCR strip tubes with adjustable timing and RPM during operation anytime, as well as to check centrifugal force without stopping the machine.

The IBMC-5160R  use in different applications PCR laboratories, clinical research and molecular biology and general cell culture applications. For safety we introduced electronic door lock. Available different accessories which can accommodate 18×0.5ml, 12×1.5ml multiple tube strips.

Accessories





  • Energy efficient AC brushless regulating motor

  • Available with 10 profile for acceleration and 10 for deceleration, high efficiency

  • 40 groups of program storage space, users can program and adjust freely

  • Protective electronic with lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming

  • Designed digital LED screen to show various information including running time, speed, RCF

  • Available 15 memory slots for your personal settings

  • Eco friendly with high efficiency refrigerating system, able to maintain temperature under 0℃ during maximum RPM

  • Centrifugal chamber are constructed with stain less steel

  • Designed with air exhaust temperature and low noise compressor

  • Small foot print and easy handling

Product Type Micro centrifuge
Model IBMC-5160R
Speed Range (rpm) 16000 rpm
Max RCF 18757×g
Capacity 10/12×5ml
Rotor Angle R1: 12/16×1.5/2.2ml; 16000rpm/17800×g Angle R2: 18×0.5ml; 15000rpm/14080×g Angle R3: 10/12×5ml; 15000rpm/15940×g Angle R4: 24×1.5/2.2ml; 14000rpm/18757×g
Temperature Range (℃ ) -20℃ to 40℃
Maximum temperature (℃ ) ±1.0℃
Timer 1 to 99 min
External Dimemsions (HxLxW) mm 610X380X370 mm
Net Weight (kg) 40 kg
Gross Weight (kg) 45 kg
Power 400 W
Electrical Requirements AC 220±22V 50/60Hz 10A
Catalogue No. 140702002

Model

IBMC-5100

IBMC-5160

IBMC-5170

IBMC-5160R

Capacity

24×1.5ml

10/12×5ml

10×5ml

10/12×5ml

Max RCF

18757×g

18757×g

19515×g

18757×g

Speed Range

16000rpm

16500rpm

17000rpm

16000rpm

Noise

< 60dB(A)

≤ 65dB(A)

Rotor

R1: 12×1.5ml; 16000rpm/17800×g, R2: 24×1.5ml; 14000rpm/18757×g

Angle R1:12/16×1.5/2.2ml; 16500rpm/18360×g

Angle R2: 10/12×5ml; 15000rpm/15940×g

Angle R3:24×1.5/2.2ml; 14000rpm/18757×g

Angle R1: 12×1.5/2.2ml; 17000rpm/19515×g

Angle R2: 10x5ml; 15000rpm/15940xg



Angle R1: 12/16×1.5/2.2ml; 16000rpm/17800×g

Angle R2: 18×0.5ml; 15000rpm/14080×g

Angle R3: 10/12×5ml; 15000rpm/15940×g

Angle R4: 24×1.5/2.2ml; 14000rpm/18757×g



Rotor Diameter

160 mm

200 mm

200 mm

160 mm

Temperature Range

-

-20℃ to 40℃

Revolutions/min

±20 rpm

Temperature Accuracy

-

±1.0℃

 Timer

1 to 99 min

Power Consumption

150 W

250 W

250 W

400 W

Internal Dimension

315×270×240 mm

315×270×240 mm

315×270×240 mm

510X280X270 mm

External Dimension

415×370×315 mm

380×350×300 mm

380×350×300

610X380X370 mm

Net Weight

10kg

11kg

11kg

40 kg

Gross Weight

12kg

13kg

15kg

45 kg

Electrical Requirement

AC 220±22V 50/60Hz 3A

AC 220±22V 50/60Hz 10A

Catalogue No.

 140700502

 140701002

 140701502

 140702002

Model Image Name Product Detail Availability Price Action
140702002 Angle Rotor 3 Angle Rotor 3

10/12×5ml; 15000rpm/15940×g

3-4 Weeks

Price On Request

140702002 Angle Rotor 4 Angle Rotor 4

24×1.5/2.2ml; 14000rpm/18757×g

3-4 Weeks

Price On Request
