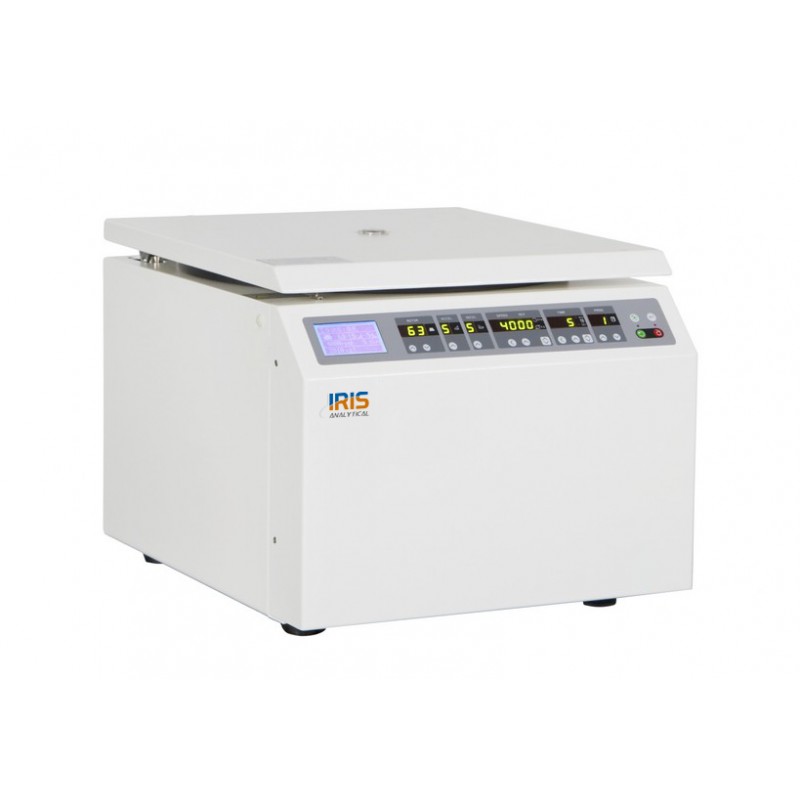

Benchtop Low Speed Centrifuge IBLC-4400
Benchtop Low Speed Centrifuge IBLC-4400

Catalogue number : 1401050502

Benchtop Low Speed Centrifuge IBLC-4400 high performance centrifuge. Offer SCT and SBT speed control parameter to avoid mix up and ensure to get maximum samples. Features with LCD/LED touch screen with multi-functional knob combination parameters. Accommodates swing rotor, and Micro plate rotor, as these motor capable of accommodating a great number of tubes at once. Available

$4,505.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Specifications
  • Technical Data

Benchtop Low Speed Centrifuge IBLC-4400 high performance centrifuge. Offer SCT and SBT speed control parameter to avoid mix up and ensure to get maximum samples. Features with LCD/LED touch screen with multi-functional knob combination parameters. Accommodates swing rotor, and Micro plate rotor, as these motor capable of accommodating a great number of tubes at once. Available with 10 profiles for acceleration and for deceleration with high efficiency. Additionally, it comes with Brushless converter motor, Freon-free compressor and Aerospace rubber for damping. And advanced microprocessor controls allow for instant rotor identification, which robotically converts the rotational speed to the relevant RCF checking the user from setting a speed above the capabilities of the installed rotor.

Rotors

Rotor types

Capacity



Max Speed(rpm)

Max RCFxg

Dimension (mm)

Swing Rotor

4×50/100ml



5500

5310

38×124

4×500 ml (adaptor 12×50ml /8×100ml)



4000

3580

80×140

4×250ml (adaptor 8×50ml

/32×10ml)

4000

3500

64×113

4×750ml



4000

3580



32×10/15ml



4000

2810

16×85-118

8×50ml



4000

2810

28×105-115

48×5ml



4000

2800

14×54

148×7ml



4000

3080

13×78

120×7ml



4000

3080

Blood tube

Micro plate

Rotor

2×2×96 wells

4000

2300

Micro plate



  • Energy efficient brushless regulating motor
  • Available with 10 profile for acceleration and 10 for deceleration, high efficiency
  • New high torque frequency conversion driving motor
  • Allow automatic identification system for magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety
  • Proprietary SCT and SBT soft brake control technical, to avoid mix up and ensure get maximum sample
  • Double electronic door lock, full steel door cover protection, superior to industrial standards and Password lock function
  • Microprocessor controlled
  • Protective electronic with lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming
  • Designed digital LCD, LED screen with multi-functional knob combination
  • Eco friendly with high efficiency refrigerating system, able to maintain temperature under 0℃ during maximum RPM
  • Centrifugal chamber are constructed with stain less steel
  • Designed with air exhaust temperature and low noise compressor
  • CFC-free refrigerants, refrigerating/heating double loop
Model IBLC-4400
Speed Range (rpm) 5500 rpm
Max RCF 5310×g
Capacity 3000 ml
Timer 1 to 999min/sec
External Dimemsions (HxLxW) mm 540×460×390 mm
Net Weight (kg) 54 kg
Electrical Requirements AC 220V 50Hz 15A
Catalogue No. 1401050502

Model

IBLC-4400

Capacity

3000 ml

Max RCF

5310×g

Speed Range

5500 rpm

Noise

≤60dB

Revolutions/min

±20 rpm

 Timer

1 to 999min/sec

Dimension

540×460×390 mm

Weight

54 kg

Electrical Requirement

AC 220V 50Hz 15A

Catalogue No.

1401050502
