Home >> >>>Benchtop Large Capacity Refrigerated Centrifuge IBLC-1080R(AC110/50Hz)

Benchtop Large Capacity Refrigerated Centrifuge IBLC-1080(AC110/50Hz)

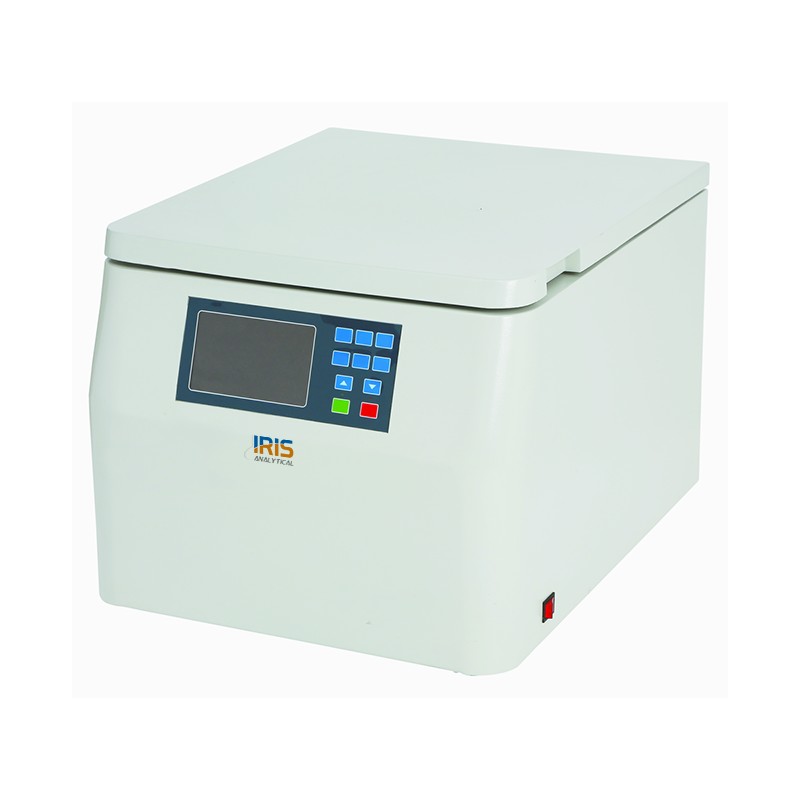

Benchtop Large Capacity Refrigerated Centrifuge IBLC-1080R(AC110/50Hz)

Catalogue number : 1401301001

Benchtop Large Capacity Refrigerated Centrifuge IBLC-1080R compiled with microcomputer allow for instant rotor identification, which robotically converts the rotational speed to the relevant RCF checking the user from setting a speed above the capabilities of the installed rotor along with R404a compressor unit and are convenient for a wide range of applications.

$11,108.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Specifications
  • Technical Data
  • Accessories

Benchtop Large Capacity Refrigerated Centrifuge IBLC-1080R compiled with microcomputer allow for instant rotor identification, which robotically converts the rotational speed to the relevant RCF checking the user from setting a speed above the capabilities of the installed rotor along with R404a compressor unit and are convenient for a wide range of applications.

Features with LCD/LED touch screen with multi-functional knob combination parameters. Accommodates different rotor and adaptors, as these motor capable of accommodating a great number of tubes at once. Available with 10 profiles for acceleration and for deceleration with high efficiency. Additionally, it comes with DC brushless converter motor.

Accessories

Rotors

                   Rotors   and adaptor

Capacity

Rotor 1

50ml×6;5800rpm;3760×g

Rotor 2

500ml×4;4000rpm;3040×g

Rotor 3

96mlx8;4000rpm;2200×g

Rotor 4

750ml×4;4000rpm;3780×g

Rotor 5

250ml×6;4200rpm;3500×g

Rotor 6

250ml×4;4300rpm;3582×g

  • Energy DC efficient brushless regulating motor
  • Available with 10 profile for acceleration and 10 for deceleration, high efficiency
  • Allow automatic identification system for magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety
  • Electronic door lock, full steel door cover protection, superior to industrial standards and Password lock function
  • Microprocessor controlled
  • Protective electronic with lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming
  • Designed digital LCD, LED screen with multi-functional knob combination
  • Eco friendly with high efficiency refrigerating system, able to maintain temperature under 0℃ during maximum RPM
  • Centrifugal chamber are constructed with stain less steel
  • Designed with air exhaust temperature and low noise compressor
  • CFC-free refrigerants, refrigerating/heating double loop
Model IBLC-1080R
Speed Range (rpm) 5800 rpm
Max RPM 5060xg
Capacity 750mlx4
Speed Control Accuracy ± 30 rpm
Temperature Range (℃ ) -20 to +40℃
Temperature Accuracy (℃ ) ±1℃
Timer 1 to 99 min
External Dimemsions (HxLxW) mm 725x660x440 mm
Net Weight (kg) 75 kg
Shipping Dimensions (HxLxW) mm 880x780x620 mm
Electrical Requirements AC110/50Hz, 5A
Catalogue No. 1401301001

                                  Model

IBLC-1080

IBLC-1080R

Capacity

750mlx4

750mlx4

Max RCF

5060xg

5060xg

Speed Range

5800 rpm

5800 rpm

Noise

<65dB(A)

Temperature Range

-

-20 to +40℃

Revolutions/min

± 30 rpm

Temperature Accuracy

-

±1℃

 Timer

1 to 99 min

Dimension

545x660x490mm

725x660x440 mm

Packing Dimension

670x780x630 mm

880x780x620 mm

Weight

72 kg

75 kg

Electrical Requirement

AC110/50Hz, 5A

220V/60Hz 5A

AC110/50Hz, 5A

220V/60Hz 5A

Catalogue No.

1401300501

1401300502

1401301001

1401301002

Model Image Name Product Detail Availability Price Action

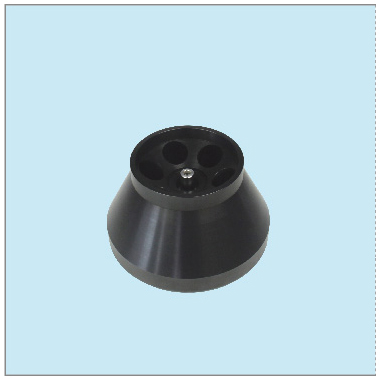

1401300501 Angle Rotor 1 Angle Rotor 1

50ml×6;5800rpm;3760×g

3-4 Weeks

Price On Request

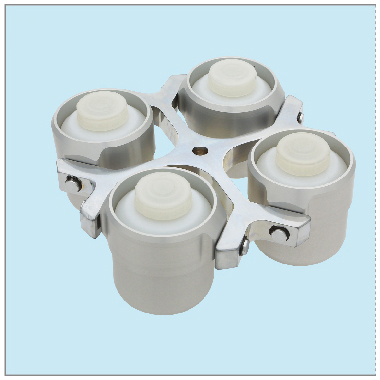

1401300501 Swing Rotor 2 Swing Rotor 2

500ml×4;4000rpm;3040×g

3-4 Weeks

Price On Request

1401300501 Swing Rotor 3 Swing Rotor 3

96mlx8;4000rpm;2200×g

3-4 Weeks

Price On Request

1401300501 Swing Rotor 4 Swing Rotor 4

750ml×4;4000rpm;3780×g

3-4 Weeks

Price On Request

1401300501 Swing Rotor 5 Swing Rotor 5

250ml×6;4200rpm;3500×g

3-4 Weeks

Price On Request

1401300501 Swing Rotor 6 Swing Rotor 6

250ml×4;4300rpm;3582×g

3-4 Weeks

Price On Request
