Benchtop High Speed Centrifuge IBHC-1010

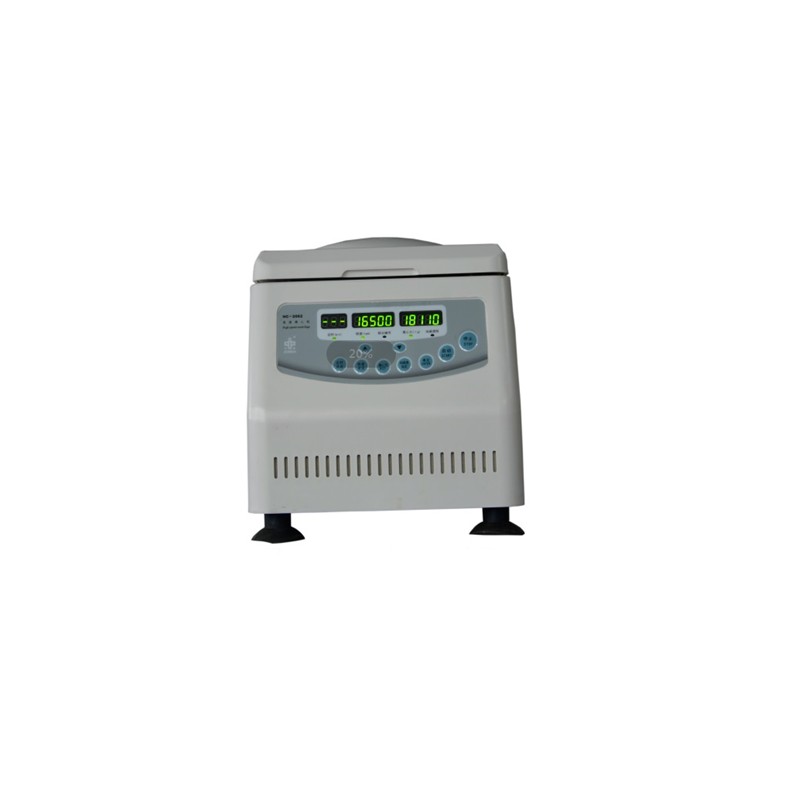

Benchtop High Speed Centrifuge IBHC-1020

Catalogue number : 1401401002

Benchtop High Speed Centrifuge IBHC-1020 small footprintof capacity up to 8x7 ml with maximum speed ranging 16500 rpm. Offer SCT and SBT speed control parameter to avoid mix up and ensure to get maximum samples

$1,640.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Specifications
  • Technical Data

Benchtop High Speed Centrifuge IBHC-1020 small footprintof capacity up to 8x7 ml with maximum speed ranging 16500 rpm. Offer SCT and SBT speed control parameter to avoid mix up and ensure to get maximum samples. Features with LED touch screen with multi-functional knob combination parameters. Available with 10 profiles for acceleration and for deceleration with high efficiency. For safety we introduced electronic door lock function and, imbalance detection, over-speed protection, inching function, short-spin function accommodates angle rotor to securely hold smaller tube sizes of 12x1.5 ml/2.2 ml and 14000 rpm, 13148xg.

  • Designed digital LED screen to show various information including running time, speed, RCF
  • Manufactured in compliance with microprocessor
  • Energy efficient DC brushless regulating motorto certifies low maintenance, high efficiency and constant speed of rotation
  • Available with the many stage to speed up and speed down process
  • Adopt inching function with short-term centrifuge process
  • Set timer up to 1sec to 1 hour 39 min per continuation
  • Protective electronic with lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming
  • Provide the system speed safety and protection by overcome speed obstacle by introducing over speed protection
  • User can set the RCF, time, rotating speed manually
  • User can changes the parameters during the running process
  • Rotors and adaptors are available as an optional accessories
Model IBHC-1020
Speed Range (rpm) 16500 rpm
Max RCF 18110 × g
Capacity 8x7 ml
Display LED
Rotor 2 rotors: 16500 rpm, 18110xg, 12x1.5 ml/2.2 ml and 14000 rpm, 13148xg, 8x7 ml
Timer 1 to 1 hour 39 min/continuation
External Dimemsions (HxLxW) mm 330x390x325 mm
Net Weight (kg) 26 kg
Electrical Requirements AC 220V/50Hz
Catalogue No. 1401401002

Model

IBHC-1010

IBHC-1020

IBHC-1030

IBHC-1040

Shaking Speed

16500 rpm

RCF Speed

18110 × g

Speed Accuracy

≤20 rpm

±10 rpm

≤20 rpm

Rotors Capacity

10x5 ml

8x7 ml

8x10 ml

24x1.5 ml/2.2 ml

Materials

Stainless steel centrifugal chamber

Display

LED

Noise

≤60dB

Optional Rotor/ Adaptor

2 rotors: 16500 rpm, 18110xg, 12x1.5 ml/2.2 ml and 14000 rpm, 13148xg, 10x5 ml

2 rotors: 16500 rpm, 18110xg, 12x1.5 ml/2.2 ml and 14000 rpm, 13148xg, 8x7 ml

2 rotors: 16500 rpm, 18110xg, 12x1.5 ml/2.2 ml and 12000 rpm, 12074xg, 8x10 ml

rotors: 16500 rpm, 18110xg, 12x1.5 ml/2.2 ml and 14000 rpm, 16435xg, 48x0.5 ml, 14000 rpm, 13367xg, 24x1.5 ml/2.2 ml

Time Range

1 to 1 hour 39 min/continuation

Power Consumption

80 VA

Dimension

330x390x325 mm

Weight

15 kg

26 kg

15 kg

Electrical Requirement

AC 220V/50Hz

Catalogue No.

1401400502

1401401002

1401401502

1401402002
