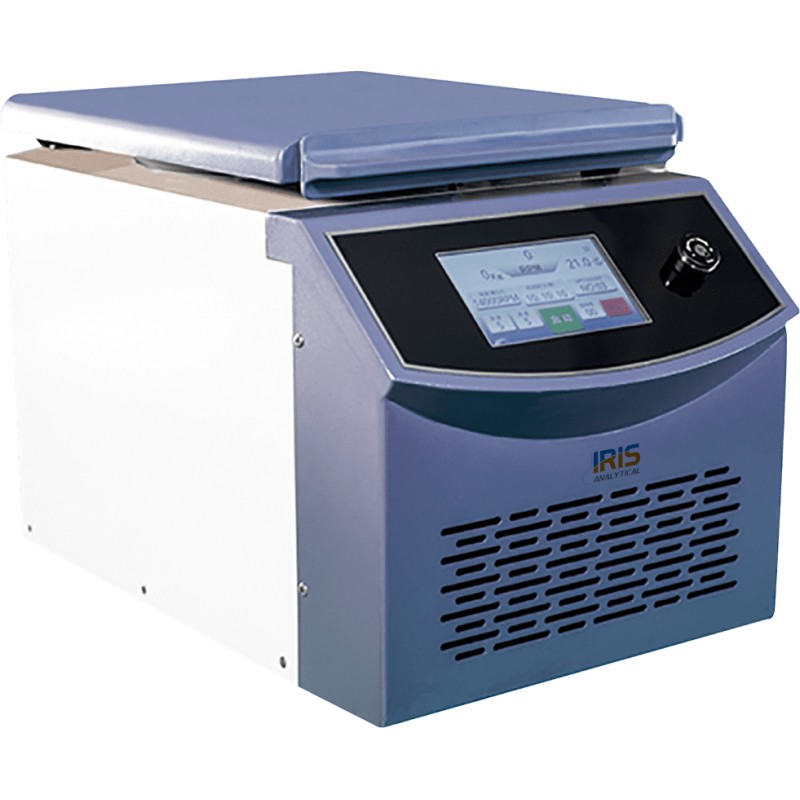

Benchtop High Speed Refrigerated Centrifuge IBRHC-1050
Benchtop High Speed Refrigerated Centrifuge IBRHC-1050

Catalogue number : 1401650502

Benchtop High Speed Refrigerated Centrifuge IBRHC-1050 comes with double electronic door lock and high-quality hydraulic rod, food-grade integrated silicone sealing ring features.

$14,807.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data

Benchtop High Speed Refrigerated Centrifuge IBRHC-1050 comes with double electronic door lock and high-quality hydraulic rod, food-grade integrated silicone sealing ring features.

Suitable for clinical medicine, biochemistry, genetic engineering, immunological applications. Features with touch screen with multi-functional knob combination parameters.

Available with 15 profiles for acceleration and for deceleration with high efficiency. For safety we introduced electronic door lock function and, imbalance detection, over-speed protection, inching function, short-spin function. Storages up to 99 program groups, 99 use records programming space.

The model is sealed and can function at high RPM owing to the ability to reduce the heat produced by higher rotation speeds worked under temperature range -20℃ to 40℃ and accommodates angle rotor, Swing out rotor with Multi-Pipe Frame and swing-out rotor.

Rotors

Model

IBRHC-1050

Rotor

Angle rotor 1: 12×5ml; 16500rpm; 15720×g

Angle rotor 2: 24×1.5/2.2ml; 15000rpm; 20625×g

Angle rotor 3: 4×8×0.2ml PCR; 14000rpm; 14395×g

  • New high torque frequency conversion driving motor
  • Allow automatic identification system for the magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety
  • Double electronic door lock, full steel door cover protection, superior to industrial standards and Password lock function
  • Microcomputer controlled
  • Protective electronic with  lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming
  • Designed digital 5 and 7-inch screen with multi-functional knob combination
  • Eco friendly with high efficiency refrigerating system, able to maintain temperature under 0 during maximum RPM
  • Centrifugal chamber are constructed with stain less steel
  • Designed with air exhaust temperature and low noise compressor
  • CFC-free refrigerants, refrigerating/heating double loop
  • Small foot print and easy handling

Model

IBRHC-1050

Capacity

12×5ml

Max RCF

20625×g

Speed Range

16500 rpm

Noise

58dBA

Rotor Diameter

200 mm

Temperature Range

-20 to 40

Revolutions/min

±10 rpm

Temperature Accuracy

±1.0

 Timer

1min to 99h, 59min, 59s

Power Consumption

800 W

Dimension

470×295×330 mm

Packing Dimension

547×437×417 mm

Net Weight

36 kg

Electrical Requirement

AC 220±22V 50Hz 15A

Catalogue No.

1401650502
