Catalogue number : 1401651002

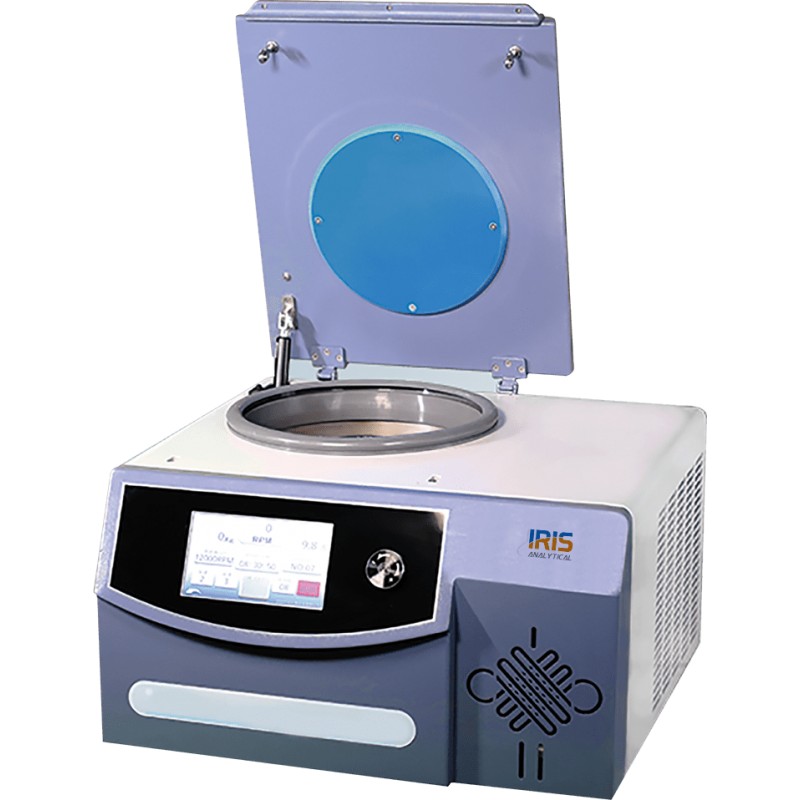

Benchtop High Speed Refrigerated Centrifuge IBRHC-1060 comes with double electronic door lock and high-quality hydraulic rod, food-grade integrated silicone sealing ring features.
Benchtop High Speed Refrigerated Centrifuge IBRHC-1060 comes with double electronic door lock and high-quality hydraulic rod, food-grade integrated silicone sealing ring features.
Suitable for clinical medicine, biochemistry, genetic engineering, immunological applications. Features with touch screen with multi-functional knob combination parameters.
Available with 15 profiles for acceleration and for deceleration with high efficiency. For safety we introduced electronic door lock function and, imbalance detection, over-speed protection, inching function, short-spin function. Storages up to 99 program groups, 99 use records programming space.
The model is sealed and can function at high RPM owing to the ability to reduce the heat produced by higher rotation speeds worked under temperature range -20℃ to 40℃ and accommodates angle rotor, Swing out rotor with Multi-Pipe Frame and swing-out rotor.
Rotors
|
Model |
IBRHC-1060 |
|
Rotor |
Angle rotor 1: 12×1.5/2.2ml; 18500rpm; 23110×g Angle rotor 2: 24×1.5/2.2ml; 15000rpm 20625×g; Angle rotor 3: 12×5ml; 16000rpm; 17888×g Angle rotor 4: 12×10ml; 14000rpm; 17635×g Angle rotor 5: 6×50ml(Sharp/Round type); 13000rpm; 17760×g Angle rotor 6: 12×15ml (Sharp type); 12000rpm; 15775×g Angle rotor 7: 4×100ml; 12000rpm; 16175×g Swing out rotor(Disk)8: 8×50ml(Sharp type); 4000rpm; 2680×g Swing out rotor 9: 2×2×96 hole Elisa Plate; 4000rpm; 2300×g Swing out rotor 10: 4×50ml+16×15ml; 4×50ml+16×15ml; 2810xg |
|
Model |
IBRHC-1060 |
|
Capacity |
4×100ml |
|
Max RCF |
23110×g |
|
Speed Range |
18500 rpm |
|
Noise |
58dB(A) |
|
Rotor Diameter |
320 mm |
|
Temperature Range |
-20℃ to 40℃ |
|
Revolutions/min |
±10 rpm |
|
Temperature Accuracy |
±1.0℃ |
|
Timer |
1min to 99h, 59min, 59s |
|
Power Consumption |
1000 W |
|
Dimension |
545×610×355 mm |
|
Packing Dimension |
622×687×464 mm |
|
Net Weight |
75 kg |
|
Electrical Requirement |
AC 220±22V 50Hz 15A |
|
Catalogue No. |
1401651002 |
