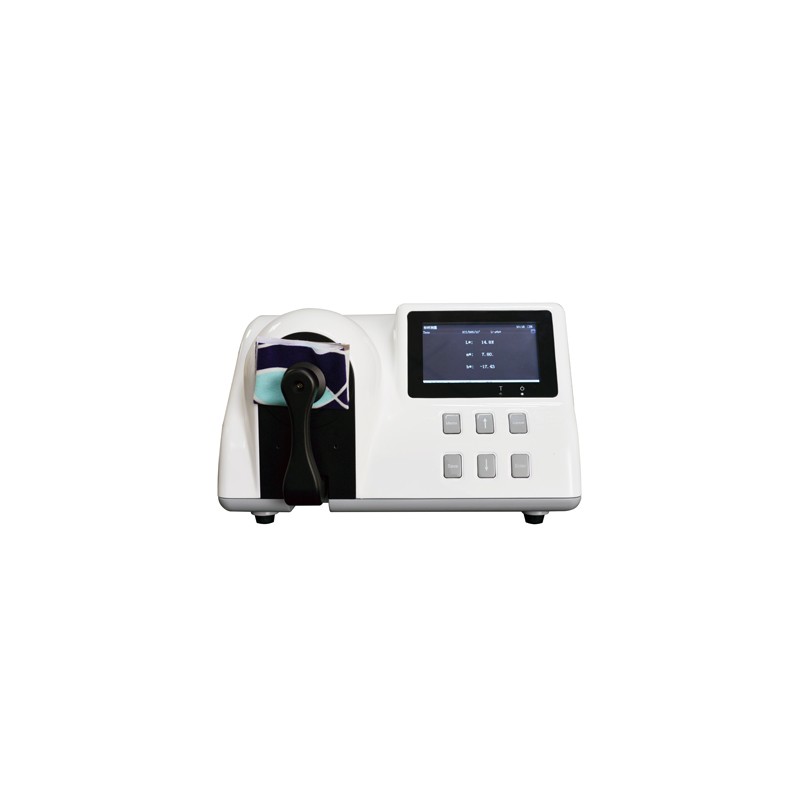

Reflectance Spectrophotometer IRS-3100

View larger
Reflectance Spectrophotometer IRS-3100

Catalogue number : 5801505-04

Reflectance Spectrophotometer IRS-3100 is a reflectance spectrophotometer used d/8° geometry of sphere measurement diffused illumination integrating systems illuminate an object equally from all directions or angles and detects the reflected light at 8°.

$15,110.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

Add to Quote

Add to wishlist

  • Product Information
  • Features
  • Technical Data

Reflectance Spectrophotometer IRS-3100 is a reflectance spectrophotometer used d/8° geometry of sphere measurement diffused illumination integrating systems illuminate an object equally from all directions or angles and detects the reflected light at 8°.

CIE recommended and equipped with full band LED composite light source, double beam optical system, ETC every-test calibration technology, spectral reflectance standard deviation within 0.08, maximum of chromaticity values ΔE*ab is 0.03.

Ths model is used to measure specular component excluded (SCE) or specular component included (SCI) mode and used ETC Technology (Every Test Calibration).

Applications

  • Fabric Color Measurement
  • Opaque Liquid Color Measurement
  • Tomato Sauce Color Measurement
  • Color Measurement of Talcum powder
  • Tombar Thite Color Measurement
  • Plastic Light Cover Color Measurement
  • Adopt d/8° geometry
  • Single testing aperture
  • Measure specular component excluded (SCE) or specular component included (SCI) mode and used ETC Technology (Every Test Calibration)
  • Suitable for tomato sauce color measurement, color measurement of talcum powder, tombar thite color measurement, plastic light cover color measurement
  • Double Optical Paths Spectral Analysis Technology
  • Large Screen Display with PC software
  •  Flexible Test Fixture

Model

IRS-3100

Wavelength

400 to 700 nm

Repeatability

light splitting reflectivity: standard deviation within 0.08%, Chromaticity values: ΔE*ab<=0.015（After calibration, standard deviation of 30 measurements on test white board, 5 second intervals），Maximum:0.03

Display

5 inches True color screen

Sensor

dual light path sensor

Wavelength Interval

10 nm

Temperature Range

0 to 45℃

Storage Temperature Range

-25 to 55℃

Light source

CLEDs(entire wavelength balanced LED light source)

Measurement Light Source

A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF

Index

WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby),YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Tint(ASTM E313,CIE,Ganz),metamerism index Milm, adhesive/changing color fastness, ISO luminance,8 gloss, A density, T density, E density, M density

Color Difference

ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555color classification

Color Space

CIE-L*a*b,L*C*h,L*u*v, XYZ, Yxy, reflectance, Hunterlab, Munsell MI, CMYK,RGB,HSB

Observer

2°/10°

Display Data

Reflectance graph/value, chromatic value, color difference values, color assessment results, color tendency, display measurement area, history color value simulation, manual input standard sample, generate measurement reports

Half spectral width

5 nm

Reflectivity range

0 to 200%

Reflectivity resolution

0.01%

Aperture

11 mm

Geometry

d/8(Diffused lighting, 8 degrees observe angle)(conform to CIE No.15, ISO 7724/1 ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c standards)

UV light

No

Battery

rechargeable, 20000 continuous tests, 7.4V/6000mAh

Humidity

80%

Standard accessories

AC power line, operating manual, color management software, drive software, electronic operating manual, color management guide, USB cable, black/white calibration tube, measurement and test report

Optional

powder molding device,40*10 cuvette

Interface

USB

Storage

40000

Dimensions

350x300x200 mm

Weight

4.5 kg

Catalogue No.

5801505-04
