Catalogue number : 1501535-04

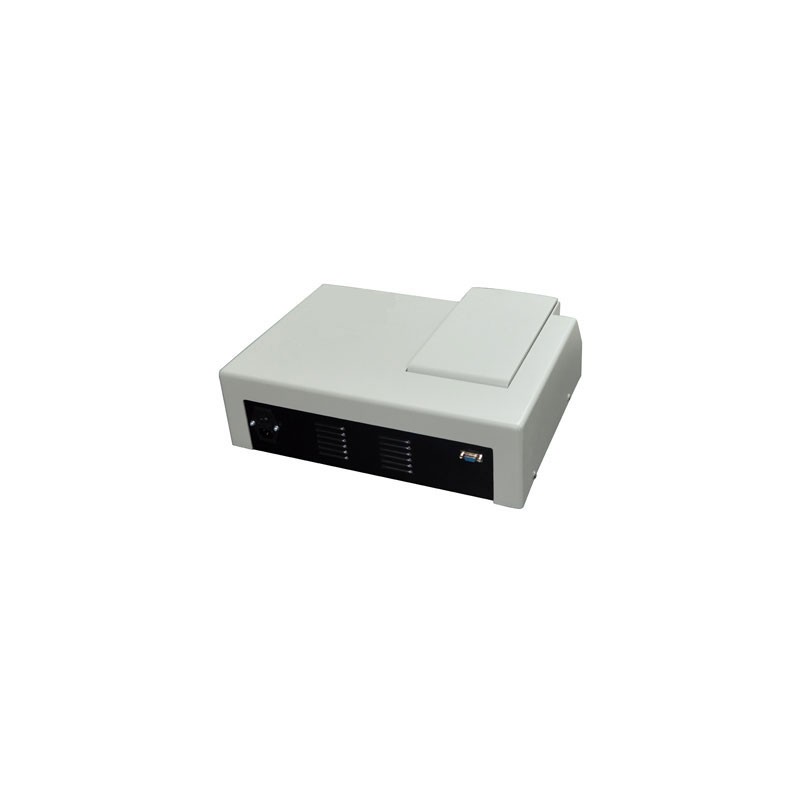

Transmittance Spectrophotometer ITS-1300 is the transmittance spectrophotometer used d/0 ° geometry of sphere measurement is unidirectional illumination systems for SCS optical engine (light splitting and integration system) detects the reflected light at 0°.
- Product Information
- Features
- Technical Data
Transmittance Spectrophotometer ITS-1300 is the transmittance spectrophotometer used d/0 ° geometry of sphere measurement is unidirectional illumination systems for SCS optical engine (light splitting and integration system) detects the reflected light at 0°.
CIA recommended and equipped with full band LED composite light source, double beam optical system, ETC every-test calibration technology, which makes the instrument reaches a resolution of 0.0001, deviation of the transmittance within 0.08% and chromatic value △E*ab 0.015.
Specially designed for soybean sauce color measurement and film transmission measurement applications. Suitable for testing clear, transparent, and translucent products such as glass, oil, plastic, petrol, gasoline, and other materials' color.
Applications
- Soybean Sauce Color Measurement
- Film Transmission Measurement
- Adopt d/0 ° geometry
- Single testing aperture can measure specular component excluded (SCE) or specular component included (SCI)
- Adopt UV enhanced silicon photodiode Extend the transmittance from 0~100% to 0~200%
- Also measure APHA/Hazen/Pt-Co, Gardner, ASTM color, Yellowness Index for liquid
- Double Optical Paths Spectral Analysis Technology
- Large Screen Display with PC software
- Flexible Test Fixture
|
Model |
ITS-1300 |
|
Wavelength |
400 to 700 nm |
|
Repeatability |
light splitting reflectivity: standard deviation within 0.08% color values:ΔE*ab<=0.015(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals,Maximum：0.03) |
|
Sensor |
dual optical path sensor |
|
Wavelength Interval |
10 nm |
|
Temperature Range |
0 to 45℃ |
|
Storage Temperature Range |
-25℃ to 55℃ |
|
Source |
CLEDs(entire wavelength balanced LED light source) |
|
Measurement Light Source |
A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 CWF,U30,DLF,NBF,TL83,TL84 |
|
Display Data |
Transmittance graph/value, chromatic value, color difference values, color assessment results, color tendency, history color value simulation, manual input standard sample, generate measurement reports |
|
Index |
WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby), YI(ASTM D1925，ASTM E313-00,ASTM E313-73), Tint(ASTM E313-00,CIE,Ganz),Metamerism index Milm, Stick color fastness, Color fastness, APHA, Pt-Co, Gardner, Saybolt, Astm color |
|
Color Difference |
ΔE*ab, ΔE*CH,ΔE*uv, ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00 ΔEab(Hunter),555color classification |
|
Color Space |
CIE-L*a*b,L*C*h, CIE-L*u*v, XYZ, Yxy, Transmittance, Hunterlab, Munsell MI, CMYK |
|
Observer |
2°/10° |
|
Half spectral width |
5 nm |
|
Reflectivity range |
0 to 200% |
|
Reflectivity resolution |
0.01% |
|
Geometry |
d/0(Diffused illumination, 0°viewing) SCS optical engine(light splitting and integration system),( conform to CIE No.15, ISO 7724/1, ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards) |
|
Humidity |
80% |
|
Standard accessories |
AC power line, color management software, drive software, USB cable, black calibration tube, 40x10 mm cuvette |
|
Interface |
USB |
|
Storage |
mass storage |
|
Dimensions |
475x340x150 mm |
|
Weight |
7 kg |
|
Catalogue No. |
1501535-04
|
