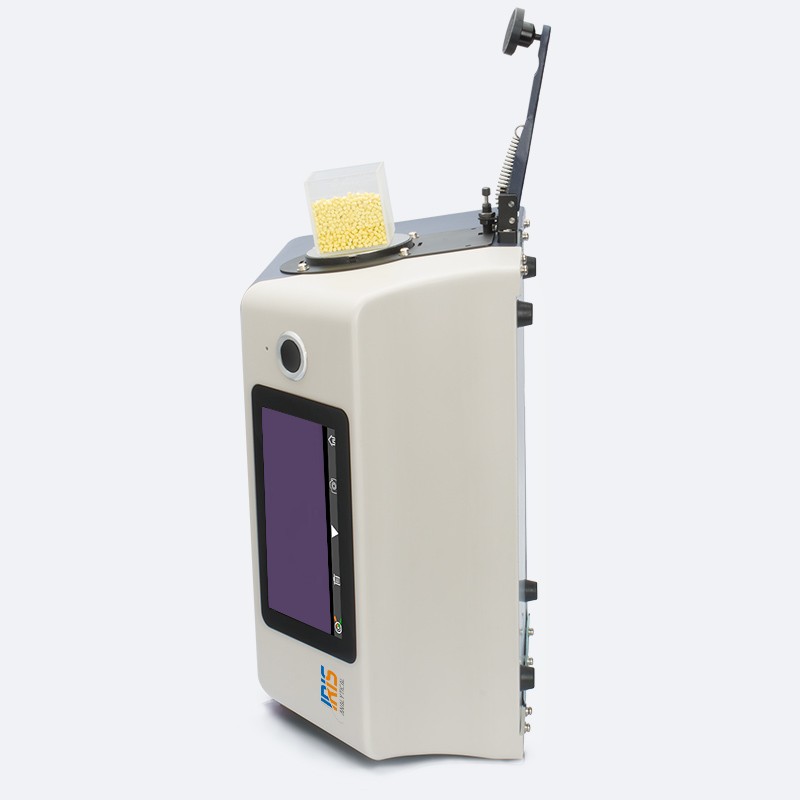

Reflectance/Transmittance Spectrophotometer IRTS-2100

View larger
Reflectance/Transmittance Spectrophotometer IRTS-2100

Catalogue number : 1501560-04

Reflectance/Transmittance Spectrophotometer IRTS-2100 design with holographic grating (concave grating) that delivers high diffraction efficiency, low stray light. It allows the generation of asymmetric and symmetric groove profiles.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

Add to Quote

Add to wishlist

  • Product Information
  • Features
  • Technical Data

Reflectance/Transmittance Spectrophotometer IRTS-2100 design with holographic grating (concave grating) that delivers high diffraction efficiency, low stray light. It allows the generation of asymmetric and symmetric groove profiles.

A new 360-780 nm wavelength for the color analysis and transmission in laboratories, industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food, research institutes. Compatible with both full illuminates, reflective d/8, and transmissive d/0 geometry.

Accessories

  • Power Adapter
  • User Guide
  • CD Disk(PC Software)
  • USB cable
  • Standard Calibration Board
  • Black Calibration Cavity
  • Transmission black baffle
  • Sample holder
  • 25.4 caliber, 8 calibers, 4 caliber
  • Transmissive Test Component

Optional Accessories

  • Micro-printer
  • Transmissive Test Component
  • Micro Aperture(4mm) transmission test clamp component
  • Instrument inversion components
  • Build-in high configuration of hardware including 7 inches TFT Color touch display
  • A new concave grating for high diffraction efficiency, low stray light
  • With dual-array image  sensor  LED, UV LED
  • Suitable for  reflective and transmissive spectrum, for exact and accurate result,
  • Different aperture are fixed for different function: auto-identify measuring aperture, switchable between 4 measuring apertures: 25.4 mm/15 mm/8 mm/4 mm. along with customizing apertures as per user need
  • Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement more precise.
  • Wavelength range 360 to 780 nm
  • Built-in 400nm cut off/460nm cut off (only xenon lamp edition), more professional in UV measurement.
  • Independent light source detector, continuously monitor the condition of light sources to ensure the light source reliable.
  • Provide multiple measurement modes including quality management mode, sample mode
  • Used to store large data files up to 20000 pieces test result
  • Built-in camera locating
  • More powerful extended functions at the PC software.

              Model

                                IRTS-2100

Wavelength

360 to 780 nm

Geometry

Reflect: di:8°, de:8, Transmittance: di:0°, de:0

Display

7-inch TFT color LCD, Capacitive Touch Screen

Measuring Aperture

Reflective : 30mm/25.4mm, 10mm/8mm, 6mm/4mm; Transmissive : 30mm/25mm;

Function

Automatic identification of switch caliber, Customized Configuration caliber and lens position

Detector

256 Image Element Double Array CMOS Image Sensor

Repeatability

Spectral reflectance: 25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:25.4mm/SCI, Standard deviation within ΔE*ab 0.02 Spectral Transmittance: 25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:25.4mm/SCI, Standard deviation within ΔE*ab 0.03

Wavelength Interval

10nm

Illuminant

D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12

Spectrophotometric Mode

Concave Grating

Index

WI (ASTM E313, CIE/ISO, AATCC,YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness,Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003)

Color Difference

ΔE * ab ,ΔE * uv ,ΔE * 94 ,ΔE * cmc(2:1) ,ΔE * cmc(1:1) ,ΔE * 00 , DINΔE 99 ,ΔE

Reflectance Range

0-200%

Light Source

360 nm to 780 nm, Combined LED Light, 400nm cut-off light source

Observer

2°/10°

Display Data

Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset

Operating Temperature

0 to 40℃

Storage Temperature

-20 to 50℃

Humidity

0 to 85%RH

Interface

USB & Print serial port

Storage

Standard 2000 Pcs, Sample 20000 Pcs

Dimensions

370x300x200mm

Weight

Approx. 9.6kg

Electrical Requirement

DC 24V, 3A Power Adapter

Catalogue No.

1501560-04
