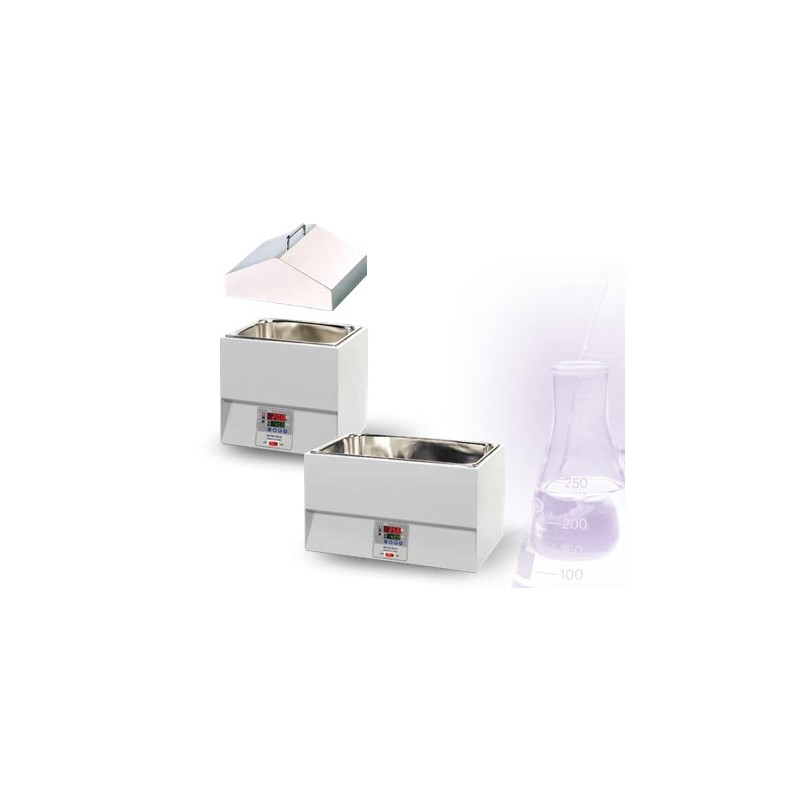

Unstirred Water Bath WB-10

View larger
Unstirred Water Bath WB-10

Catalogue number : WB-10

  • Tank is using seamless stainless steel and outside body is powder painting
  • Screen-touch panel, micro-computer PID digital display
  • Overheat protector
  • The water bath with circulator using electric heat tube to unify temperature inside
  • The sensor is PT-100Ω
  • Gable cover (AC-100) sold separately for your option.
  • Heater of stainless steel


Availability : 2 - 3 weeks

Availability : Availability : 2 - 3 weeks

Add to Quote

Add to wishlist

  • Product Information
  • Features
  • Technical Data
  • Tank is using seamless stainless steel and outside body is powder painting
  • Screen-touch panel, micro-computer PID digital display
  • Overheat protector
  • The water bath with circulator using electric heat tube to unify temperature inside
  • The sensor is PT-100Ω
  • Gable cover (AC-100) sold separately for your option.
  • Heater of stainless steel
  • Tank is using seamless stainless steel and outside body is powder painting
  • Screen-touch panel, micro-computer PID digital display
  • Overheat protector
  • The water bath with circulator using electric heat tube to unify temperature inside
  • The sensor is PT-100Ω
  • Gable cover (AC-100) sold separately for your option.
  • Heater of stainless steel

Model

WS-100

WS-200

Temperature Range (℃)

Ambient+5℃~100℃
Temp. Accuracy (℃)

±0.1℃
Temp. Control

PIDControl
Temp. Display

LEDDisplay

Volume (liters)

10 L

20 L

Inside Dimensions (WxDxH) mm

295 x 235 x 150 mm

495 x 295 x 150 mm

Outside Dimensions (WxDxH) mm

340 x 280 x 315 mm

540 x 340 x 315 mm

Net Weight (kg)

8kg

12kg

Gross Weight (kg)





Electrical Requirements

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.
