Chest Type Shaking Incubator CS-1530D(110V/60Hz)

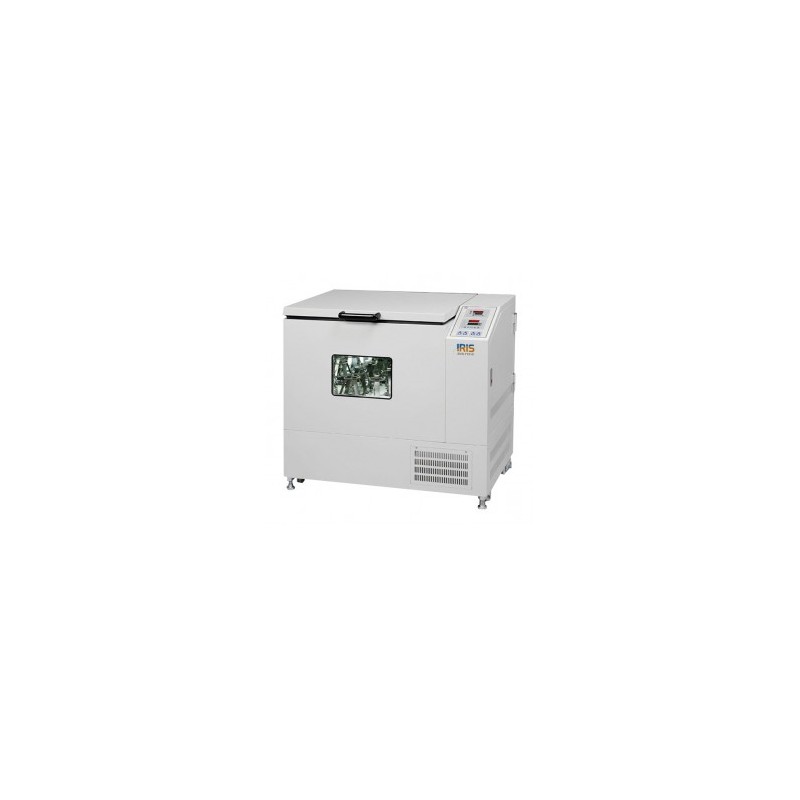

Chest Type Shaking Incubator CS-1530D(220V/50Hz)

Catalogue number : 3602012502

Iris CS-1530D Chest Type Incubator Shakers include intuitive controls with a digital display, a robust construction in a compact, space-saving design, and smooth running conditions with variable speeds.

$10,913.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data

Iris CS-1530D Chest Type Incubator Shakers include intuitive controls with a digital display, a robust construction in a compact, space-saving design, and smooth running conditions with variable speeds.

Our laboratory shakers allow for safe, efficient, and easy-to-use operation while reproducing accurate, controlled speeds with every use.

These incubator shakers are very robust and durable with all stainless steel interiors. Highly efficient insulation guarantees homogenous temperature dispersion as well as reproducible cultivation results. CS-1000 series incubator shakers are suitable for applications in modern laboratories, research centers and production facilities.

  • The inside material is SUS304 and outside body is powder painting
  • Screen-touch panel
  • Install light to view inside clearly
  • The compressor will be delayed to start working if power cut and with a timer for defrosting. Using environmental protection cold-media R134a.
  • With safety switch to stop shaking when opening door
  • Three-point bearing transmission is adopted suitable for heavy loads and continuous duty.
  • Transparent glass observation window.
  • Uses brushless AC motor for long durability and stable performance of the shaking system.
  • Overheat and over low protector, built-in circulating fan for temperature stability

Model

CS-1510D

CS-1510RD

CS-1530D

CS-1530RD

Range

Ambient+5 to 70

0 to 70

Ambient+5to 70

0 to 70

Accuracy

±0.1

Control

PID temperature control

Display

LED digital display

Shaking Speed

20~250 r.p.m

Shaking Width

50 mm

Timer

999 h / 999 min / 999 sec

Heater

1200 W

Illumination

Fluorescent lamp 20W

Refrigerator

N/A

1/4 HP

N/A

1/3 HP

Volume

205 L

205 L

381 L

381 L

Shaking Plate

600 x 480 mm

960 x 600 mm

Inside Dimension

680 x 560 x 540 mm

1040 x 680 x 540 mm

Outside Dimension

1010 x 640 x 870 mm

1370 x 760 x 870 mm

Net Weight

160kg

200kg

270kg

300kg

Electrical Requirements

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.

3602011501

3602011502

3602012001

3602012002

3602012501

3602012502

3602013001

3602013001
