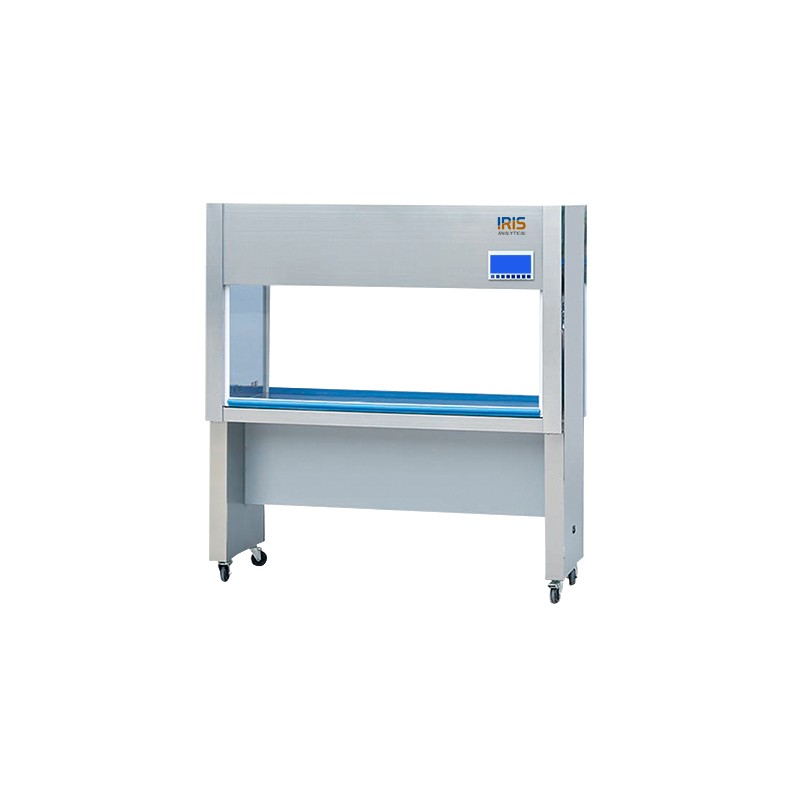

Vertical Laminar Flow Cabinet (Double Sided) LVB-1200D
Vertical Laminar Flow Cabinet (Double Sided) LVB-1200D

Catalogue number : 380101002

Vertical Laminar Flow Cabinet (Double-Sided) LVB-1200D available with three configurations: double-double vertical cabinet used in medicine, pharmacy, and biological, chemical experiment, operating room, foodstuff, drinks, and cosmetic, stock rising and aviation works.

$4,550.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Specifications
  • Technical Data

Vertical Laminar Flow Cabinet (Double-Sided) LVB-1200D available with three configurations: double-double vertical cabinet used in medicine, pharmacy, and biological, chemical experiment, operating room, foodstuff, drinks, and cosmetic, stock rising and aviation works.

The vertical intense clean bench is a general-purpose workbench, with clean airflow flows from the top to the bottom in the vertical direction. Accommodates maximum no. of colony rate: ≤0.5per utensil hour (90mm utensil) and air velocity 0.25-0.45m/s.

Features with HEPA Filter, UV lamp, sliding glass door, ventilating slot, color plate, and LED source. Deliver best and economic free environment for inflexible contamination requirements on pharmaceutical, food industries, biotech, and much more Industries. Our flow cabinet enclosed on the sides and kept under constant pressure to prevent contamination.



  • Instrument designed with powerful, low-energy fan and filter modules deliver a back-to-front laminar flow with aids of HEPA filter air across the work surface
  • Furnished with ISO-9001 and grade 100 work zone
  • Suitable for important operations in the medical, biotech, pharmaceuticals, electronics and semiconductor industries
  • Built-in illuminator provides diffused lighting without interfering with laminar flow with value range up to: ≥ 300 Lx
  • This advanced flow cabinet operate with a LED panel
  • Novel structures that maintains outstanding performance with low noise at ≤62 dB(A)
  • Inner surfaces, including the side panels and work surface, are made of 304-stainless steel
  • Come with Single-double, Double-Double, and Three-Double-Vertical (Medical) operation mode
  • Bench board are made up of stainless steel and tempered glass side-boar; slim filter without division-plate
  • Vertical laminar flow with open bench board
  • Digital display with curved arc designed and large open area
  • Accessories: HEPA Filter, UV lamp, sliding glass door, ventilating slot, color plate, and LED source, castors etc
Model LVB-1200D
HEPA Filter 1355x555x38x1
Material 304 Stainless steel
Net Weight 150 kg
Shipping Dimensions (W*D*H) cm 1540x680x1600 mm
Electrical Requirements AC, 220 V/50Hz
Catalogue No. 380101002
Consumption 800 W

Model

LVB-1100D

LVB-1200D

LVB-1300D

Type

Single-Double-Vertical(Medical

Double-Double-Vertical(Medical

Three-Double-Vertical(Medical)

Cleanliness

Grade 100

Velocity

0.25-0.45m/s

Material

304 Stainless steel

No. of colony

≤0.5per utensil.hour(90mm utensil)

Noise

≤62dB

Illumination

≥300LX

Light

LED

HEPA filter No. and Size

865x555x38x1

1355x555x38x1

1795x555x38x1

Power Consumption

400 W

800 W

800 W

Certification

ISO 9001



Working Area

870x600x520 mm

1360x600x520 mm

1800x580x515 mm

Overall Dimension

1050x680x1600 mm

1540x680x1600 mm

1960x670x1625 mm

Weight

75 kg

150 kg

250 kg

Electrical Requirement

AC, 220 V/50Hz

Catalogue No.

380100502

380101002

380101502
