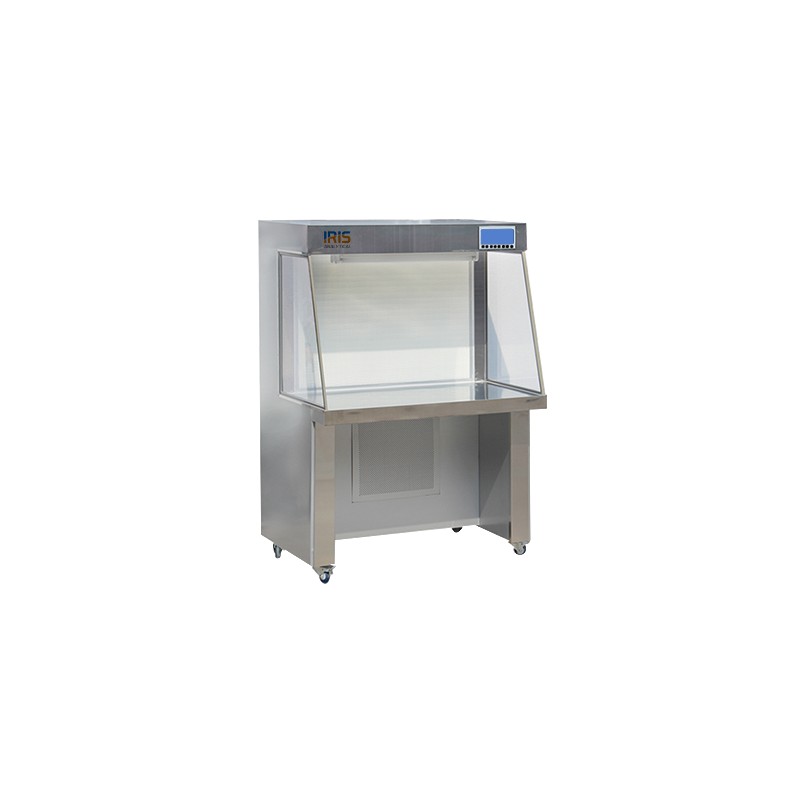

Horizontal Laminar Flow Cabinet LHB-1020
Horizontal Laminar Flow Cabinet LHB-1020

Catalogue number : 380351002

Horizontal Laminar Flow Cabinet LHB-1020 available with configuration: Single-Single  Horizontal cabinet used in medicine, pharmacy, and biological, chemical experiment, operating room, foodstuff, drinks, and cosmetic, stock rising and aviation works.

$3,140.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data

Horizontal Laminar Flow Cabinet LHB-1020 available with configuration: Single-Single  Horizontal cabinet used in medicine, pharmacy, and biological, chemical experiment, operating room, foodstuff, drinks, and cosmetic, stock rising and aviation works.

The horizontal intense clean bench is a general-purpose workbench, with clean air flow flows from the top to the bottom in the vertical direction.

Accommodates maximum no. of colony rate: ≤0.5per utensil hour (90mm utensil) and air velocity 0.25-0.45m/s. features with HEPA Filter,UV lamp, sliding glass door, ventilating slot, color plate, and LED source.

Deliver best and economic free environment for inflexible contamination requirements on pharmaceutical, food industries, biotech and much more Industries. Our flow cabinet enclosed on the sides and kept under constant pressure to prevent contamination



  • Instrument designed with powerful, low-energy fan and filter modules deliver a back-to-front laminar flow with aids of HEPA filter air across the work surface
  • Furnished with ISO-9001 and grade 100 work zone
  • Suitable for important operations in the medical, biotech, pharmaceuticals, electronics and semiconductor industries
  • Built-in illuminator provides diffused lighting without interfering with laminar flow with value range up to: ≥ 300 Lx
  • This advanced flow cabinet operate with a LED panel
  • Novel structures that maintains outstanding performance with low noise at ≤62 dB(A)
  • Inner surfaces, including the side panels and work surface, are made of 304-stainless steel
  • Come with Single-Single Horizontal operation mode
  • Bench board are made up of stainless steel and tempered glass side-boar; slim filter without division-plate
  • Horizontal laminar flow with open bench board
  • Digital display with curved arc designed and large open area
  • Accessories: HEPA Filter, UV lamp, sliding glass door, ventilating slot, color plate, and LED source, castors etc

Model

LHB-1010

LHB-1020

LHB-1030

LHB-1040

Type

Single-Single-Horizontal

Single-Single-Horizontal

Single-Single-Horizontal

Double Horizontal

Cleanliness

Grade 100

Velocity

0.25-0.45m/s

Material

304  Stainless steel

No. of colony

≤0.5per utensil.hour(90mm utensil)

≤0.5per utensil.hour(90mm utensil)

≤0.5per utensil.hour(90mm utensil)

≤0.5per utensil.hour(90mm utensil)

Noise

≤62dB

Illumination

≥300LX

Light

LED

HEPA filter No. and Size

695x600x38 mm x1

20W*1/20W*1

20W*1/20W*1

1135x600x38 mm x1

Power Consumption

300 W

320 W

320 W

800 W

Certification

ISO 9001

ISO 9001

ISO 9001

ISO 9001

Working Area

700x400x600 mm

850×580×1600 mm

870x550x620 mm

1030X650X620 mm

Overall Dimension

850x580x1600 mm

850×580×1600 mm

1050x730x1600 mm

1300X770X1800 mm

Weight

160 kg

250 kg

Electrical Requirement

AC, 220 V/50Hz

Catalogue No.

 380350502

 380351002

 380351502

 380352002
