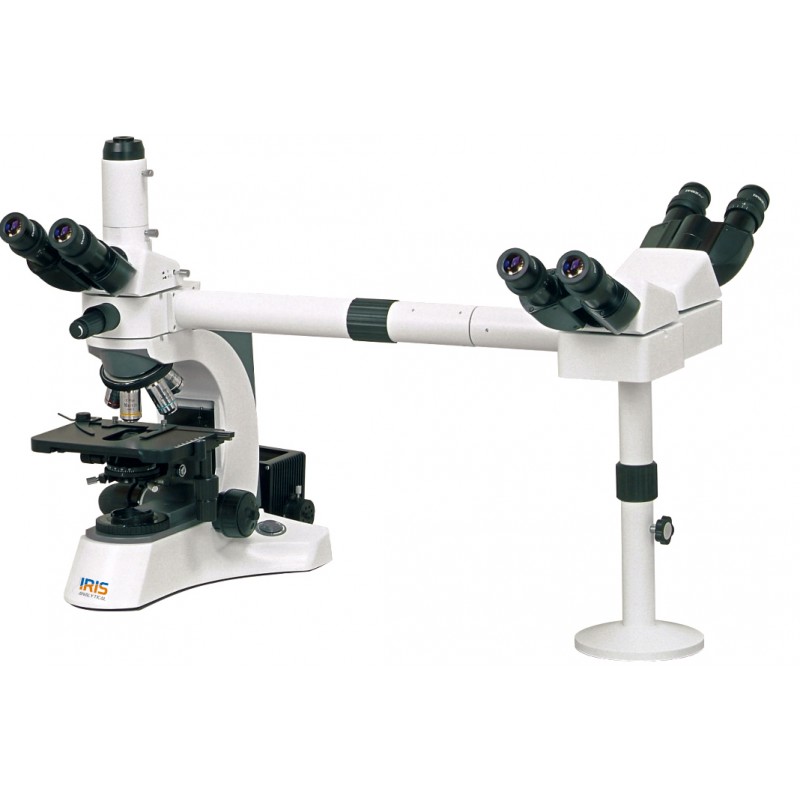

Multi-head Biological Microscope IMB-2230 is cost-effective and laboratory-grade performance, choose quintuple nosepiece infinite plan achromatic objective Multi-head Biological Microscope.

The extra wild field 10X is absorbed and delivers a 22 mm field of view which allows you to view more of your specimen. With the features of an infinite optical system, effective high brightness illumination, LED pointer and images coherence for medical teaching and biological teaching, biological analysis, medical and sanitary establishments, laboratories, institutes, colleges, and universities. 24V/ 100W Halogen Lamp Koehler Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, and Swing Condenser N.A.0.9/ 0.25. This model of microscopes allow handlers to remain relaxed during long periods of routine microscopy observations. Features with backward quintuple revolving nosepiece holds multiple lenses, and found between the eyepiece and the stage allowing the user to turn it to achieve various levels of magnification. Though the exact level of magnification may vary with different models, most microscopes provide a low power lens with about 5X magnification and a high power lens with about 100X magnification. Featured with Swing Condenser N.A.0.9/ 0.25 with Iris Diaphragm that are concentrates and controls the light that passes through the specimen prior to entering the objective with modern cameras use a type of adjustable diaphragm known as an iris diaphragm which can reduce the amount light that hits a detector by decreasing the aperture and Filter.

• Multi viewing head
• Infinite Plan Achromatic Objective with high quality images
• Coaxial Coarse and fine adjustment, fine division of length 0.001mm, coarse stroke 37.7mm/rotation, fine stroke 0.1mm/rotation, moving range 24 mm
• Offer stages that are designed to move small sample slides or entire microscopes including Double layer mechanical stage of length 185×142 mm, moving range 75×55 mm
• Featured with Mirror and halogen lamp Illuminator light source
• Excellent wide field technology
• Sliding trinocular 30° inclined and a 360° rotatable head with interpupilary distance 48 to 75 mm,
• Designed with small foot print and light weight
• Easy operating with ergonomic design
• Excellent image quality with infinite optical system
• Multihead attachment with joystick to move a green LED and dual color LED pointer across the entire field of view
• LED Kohler Illumination as an optional accessories
