Upright Fluorescence Microscope IMF-2100

View larger
Upright Fluorescence Microscope IMF-2100

Catalogue number : 440115-05-04

Upright Fluorescence Microscope IMF-2100  is used to study the absorbing, transportation, chemicals distribution and positioning in cells. It is widely used in disease examination, immune diagnosis and life science areas.

$10,100.00 tax excl.


Availability : 3-4 weeks

Availability : Availability : 3-4 weeks

Add to Quote

Add to wishlist

  • Product Information
  • Features
  • Specifications
  • Technical Data

Upright Fluorescence Microscope IMF-2100  is used to study the absorbing, transportation, chemicals distribution and positioning in cells. It is widely used in disease examination, immune diagnosis and life science areas. 6V/30W Halogen Lamp Kohler Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and Quintuple along with choice offer reversed sextuple nosepiece. The Trinocular viewing head has excellent Infinite Plan Achromatic:4X/0.10,17.3 mm, 10X/0.25,10 mm, 40X/0.65(S),0.54 mm, 100X/1.25(S,Oil), 0.13 mm and optional:20X/0.40,5.1 mm; Infinite Plan Fluorescent: 4X/0.13, 10X/0.30, 20X/0.50, 40X/0.75(S), 100X/1.3(S,Oil), objectives and each eye tube has interpupillary adjustment. Designed with Neutral ND25/ ND6 filters as optional accessories. Provide tremendous fluorescent image with high resolution fluorescent objectives including infinite Plan Fluorescent, Infinite Plan Achromatic objective, and backward quintuple nosepiece. Designed with 100W HBO Ultra Hi-voltage Spherical Mercury, 6V/30W Halogen Lamp Kohler Illumination fluorescents lamp. Advantage of HBO mercury lamp: various spectral peaks, incoherent source, reasonable price, and compact light emitting surface. Equipped with excitation filter for incoming light and emitted filters for emitted light and dichroic mirror to reflect the excitation light to the sample and instantaneously transmit only the emitted light from the sample back to the detector.

Sample Images

Accessories

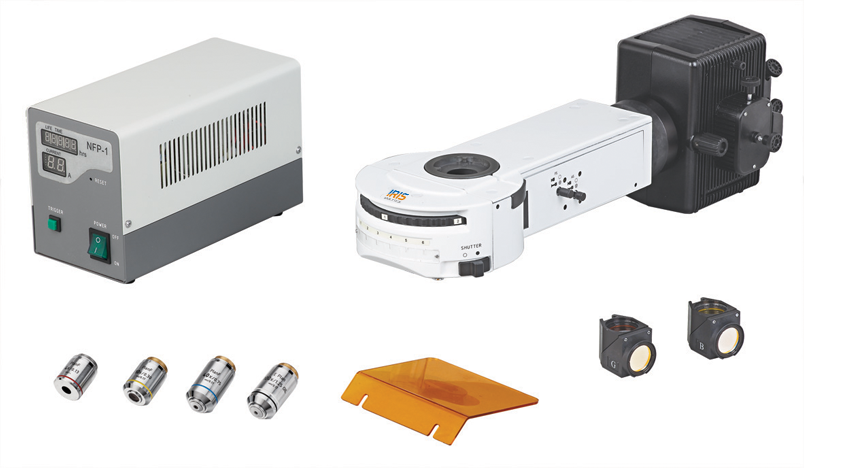

Epi-fluorescent Attachment

  • Advanced lamp housing to protect light leaking
  • Extra wild field EW10X22mm eyepieces
  • Coaxial coarse and fine adjustment and fine division: 0.001 mm, coarse stroke of length 37.7 mm/Rotation, fine stroke 0.1mm/Rotation, moving range 24 mm
  • Double layers mechanical stage of length 185×142 mm, moving range 75×55mm
  • Swing condenser NA 0.9/ 0.25
  • 1W S-LED and 6V/30W halogen lamp light source
  • Different filters including Neutral ND25/ ND6 Filter as an optional accessories
  • Trinocular 30° inclined and a 360° rotatable head with interpupilary distance 48 to 75 mm
  • Small foot print and light weight
  • Easy operating with ergonomic design
  • Excellent image quality with infinite optical system
  • Optional accessories to realize Photo and Video Adapter, filters
  • 24V/100W and 5W LED Kohler Illumination Halogen lamp as an optional accessories
Model IMF-2100
Type Upright Fluorescence Microscope
Viewing Head Trinocular Head, Inclined at 30°, Interpupillary Distance 48-75mm
Reflected Light Source Blue: 460 to 490 nm excitation,500 Dichroic Mirror, 520 Barrier Filter; Green: 480 to 550 nm excitation,570 Dichroic Mirror, 590 Barrier Filter
Focusing Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm/rotation, Fine Stroke 0.1mm/Rotation, Moving Range 24mm
Eyepiece Extra Wide Field Eyepiece EW10×/22mm, Eyepiece tube diameter 30mm
Nosepiece Backward Quintuple(optional: Backward Sextuple)
Objective Infinite Plan Achromatic: 4×/0.10,17.3mm, 10×/0.25,10mm, 40×/0.65(S),0.54mm, 100×/1.25(S, Oil), 0.13mm
Stage Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm
Light Source 6V/30W Halogen Lamp Kohler Illumination
Condenser Swing Condenser NA 0.9/ 0.25
Filter Neutral ND25/ ND6 Filter(optional)
Standard Accessories 100W HBO Ultra Hi-voltage Mercury Lamp, Barrier to Resist the Ultraviolet Light, Power Supplier NFP-1, 220V/ 110V Interchangeable, Digital Display, Fluorescent Free Oil,
Optional Accessories Photo and Video Adapter, filters, reflected light source
Catalogue No. 440115-05-04

Model

IMF-2100

Type

Upright Fluorescence Microscope

Viewing Head

Trinocular Head, Inclined at 30°, Interpupillary Distance 48-75mm

Fluorescent



Reflected Light Source

Blue: 460 to 490 nm excitation,500 Dichroic Mirror, 520 Barrier Filter; Green: 480 to 550 nm excitation,570 Dichroic Mirror, 590 Barrier Filter(optional: Blue(B1): 460 to 495 nm excitation,505 Dichroic Mirror, 510 to 550 Barrier Filter;UV:330 to385 excitation,400 Dichroic Mirror, 420 Barrier Filter; V: 400 to 410 nm excitation,455 Dichroic Mirror, 455 Barrier Filter; Red: 620 to 650 nm excitation,660 Dichroic Mirror, 670 to 750 Barrier Filter)

Optical System

Infinite

Focusing

Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm

Eyepiece

Extra Wide Field Eyepiece EW10×/22mm, Eyepiece tube diameter 30mm

Nosepiece

Backward Quintuple(optional: Backward Sextuple)

Objective

Infinite Plan Achromatic: 4×/0.10,17.3mm, 10×/0.25,10mm, 40×/0.65(S),0.54mm, 100×/1.25(S, Oil), 0.13mm(optional: 20×/0.40, 5.1mm; Infinite Plan Fluorescent: 4×/0.13, 10×/0.30,20×/0.50,40×/0.75(S),100×/1.3(S, Oil),

Stage

Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm

Light Source

6V/30W Halogen Lamp Kohler Illumination(optional:24V/100WHalogen Lamp Kohler; 3W/5WLED)

Condenser

Swing Condenser NA 0.9/ 0.25

Filter

Neutral ND25/ ND6 Filter(optional)

Certification



Accessories

100W HBO Ultra Hi-voltage Spherical Mercury Lamp, Barrier to Resist the Ultraviolet Light, Power Supplier NFP-1, 220V/ 110V Voltage Interchangeable, Digital Display, Fluorescent Free Oil,

Optional Accessories

Photo and Video Adapter, filters

Packing Dimension



Packing Weight



Electrical Requirement



Catalogue No.

440115-05-04
