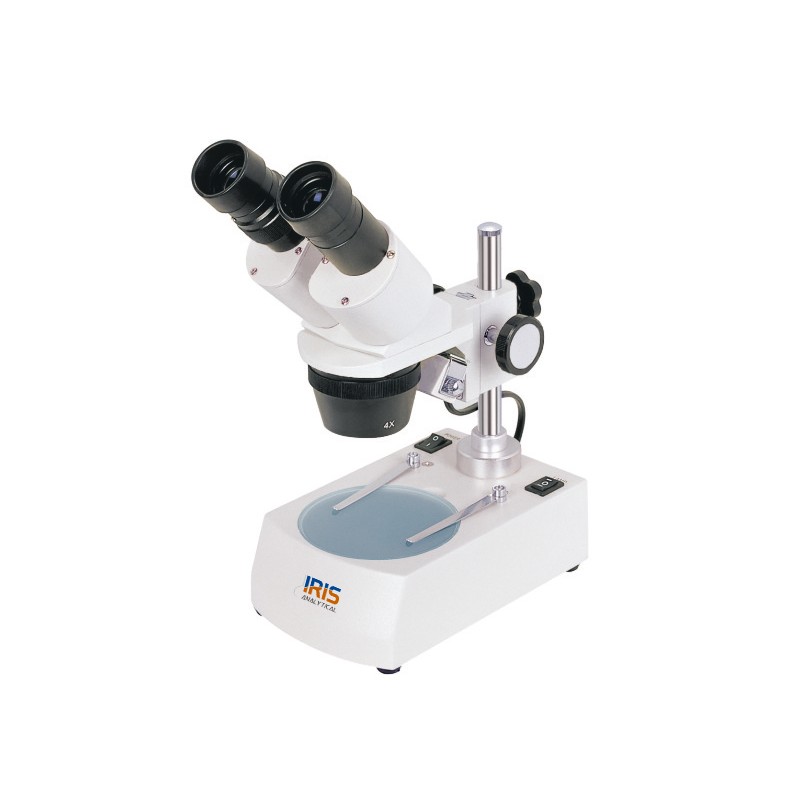

Stereo Microscope IMS-1410

View larger
Stereo Microscope IMS-1410

Catalogue number : 440145-05-04

Stereo Microscope IMS-1410  suitable for school education, circuit board inspection, and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts.

$620.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

Add to Quote

Add to wishlist

  • Product Information
  • Features
  • Specifications
  • Technical Data

Stereo Microscope IMS-1410  suitable for school education, circuit board inspection, and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts. The binocular viewing head and V-shaped objective. The stand has the same ergonomic design with both the incident and transmitted lighting systems are rheostat controlled by halogen lamp and Incandescent lamp that allows the illumination to be adjusted to suit the sample type. Provide upright, un-reversed 3D images with high resolution and high quality

  • Long Working Distance: LWD 2X,4X, 57 mm objective to create enough space for the uses
  • Extra wild field WF10×/ 20 mm eyepieces
  • ELWD Condenser NA 0.3, LWD 72 mm
  • 12V/ 10W halogen light source with incident and transmitted illumination
  • Binocular 45° inclined and a 360° rotatable viewing head with diopter adjustment ±5dp on left ocular-tube and tube diameter 23.2 mm
  • Small foot print and light weight
  • Easy operating with ergonomic design
  • Optional accessories Eyepiece, objective
Model IMS-1410
Type Stereo Microscope
Viewing Head Binocular Viewing Head, 45° Inclined, Interpupilary Distance 55-75mm, Un-rotatable
Eyepiece WF10X20mm(optional: WF5X20mm, WF15X15mm, WF20X10mm
Objective LWD 2X,4X, 57mm(optional: 1X,2X;1X,3X
Light Source 12V/ 10WTransmitted halogen light
Optional Accessories Eyepiece
Shipping Dimensions 680x310x380 mm
Shipping Weight 16 kg
Catalogue No. 440145-05-04

Model

IMS-1410

IMS-1420

Type

Stereo Microscope

Viewing Head

Binocular Viewing Head, 45° Inclined, Interpupilary Distance 55-75mm, Un-rotatable

Binocular Viewing Head, 45° Inclined, Interpupilary Distance 55-75mm, 360° Rotatable

Eyepiece

WF10X20mm(optional: WF5X20mm, WF15X15mm, WF20X10mm

Objective

LWD 2X,4X, 57mm(optional: 1X,2X;1X,3X

LWD: 2X,4X, 76mm(optional: 1X,2X;1X,3X

Light Source

12V/ 10WTransmitted halogen light

12V/ 10W Incident halogen light

Certification





Optional Accessories

Eyepiece

Packing Dimension

680x310x380 mm

Packing Weight

16 kg

Electrical Requirement





Catalogue No.

440145-05-04

440145-10-04
