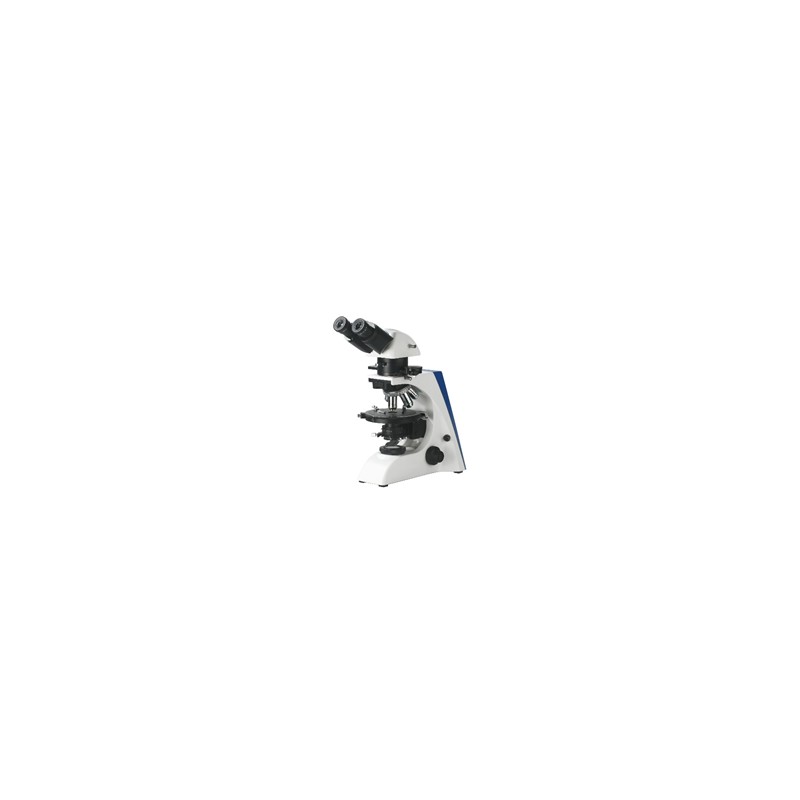

Polarizing Microscope IMP-1203 equipped with a high degree of sensitivity and best suited for anisotropic (mineral) specimens such as geology, minerals, metallurgy, university teaching laboratories, and other sectors. Built-in bertrand lens, polarizer and analyzer, 360° rotatable round stage, filter, condenser, etc. The binocular viewing head with wild field eyepieces and has excellent infinite strain free plan achromatic:4X/0.10-12.1mm and LWD infinite strain free plan achromatic: 5X/0.13(S)-23 mm, objectives, and each eye tube has interpupillary adjustment. This series is capable of providing strong images with a broad field of view, the multipurpose and perfect for basic studies of samples properties. Come with 5W LED lights, allowing samples to be illuminated for a more comprehensive field of view. Accomplished with the help of particular devices known as retardation plates and optical compensators. First order retardation plate is used in optical path differences ranging from a fraction of a wavelength up to several wavelengths. This flexible and multipurpose tool is known by different names, comprising a red plate, red-one plate, lambda (λ) plate, gypsum plate, selenite plate, sensitive violet, or simply a color tint plate and quartz wedge plate is a simple, semi-quantitative optical compensator used to examine optical path differences in a wide range of samples by the quartz wedge. Built in a crystalline block of quartz provide parallel or perpendicular optical axis to the edge of the birefringent crystal.

Sample Images

• Accomplished with the help of particular devices known as retardation plates and optical compensators.
• Infinite Strain Free Plan Achromatic, LWD Infinite Strain Free Plan Achromatic: objective, and Backward Quintuple nosepiece
• Gypsum λ Slip, First Class Red, 1/4λ Slip, (Ⅰ-Ⅳ Class) Quartz Wedge optical compensate system
• Wild field WF10X/22mm,WF10X/22 mm with reticule 0.1mm eyepieces
• Coaxial coarse & fine adjustment, range 25mm, fine stroke 0.2mm, Fine Division 0.002mm
• 360° rotatable Revolving Round Stage of length 156 mm
• N.A.0.9/0.13 swing out condenser
• 5W LED lamp light source
• Different filters including Blue(optional:Amber,Green,Neutral) filters
• Binocular 30° inclined and a 360° rotatable head with interpupilary distance 48 to 75 mm and
• Small foot print and light weight
• Easy operating with ergonomic design
• Excellent image quality with infinite optical system
• Optional accessories C-mount, Filter
• 6V/30W Halogen Lamp Illumination as an optional accessories
• Built in a crystalline block of quartz provide parallel or perpendicular optical axis to the edge of the birefringent crystal
