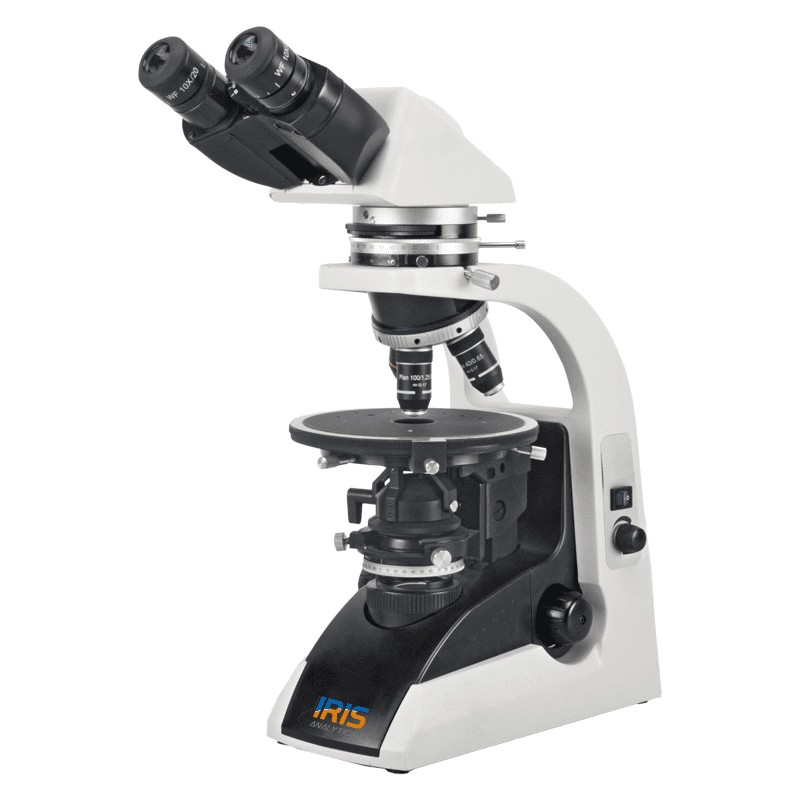

Polarizing Microscope IMP-1301  equipped with a high degree of sensitivity and best suited for anisotropic (mineral) specimens such as geology, minerals, metallurgy, university teaching laboratories, and other sectors. Built-in bertrand lens, polarizer and analyzer, 360° rotatable round stage, filter, condenser, etc. The binocular viewing head with wild field eyepieces and has excellent infinite strain free plan achromatic: 4X, 10X for reflected/transmitted 20X, 40X, 60X for Transmitted with optional: 100X for Transmitted 20X, 40X, 60X, 100X for reflected objectives, and each eye tube has interpupilary adjustment. This series is capable of providing strong images with a broad field of view, the multipurpose and perfect for basic studies of samples properties. Come with 12V/50W halogen Epi-Illumination lights, allowing samples to be illuminated for a more comprehensive field of view. Accomplished with the help of particular devices known as retardation plates and optical compensators. First order retardation plate is used in optical path differences ranging from a fraction of a wavelength up to several wavelengths. This flexible and multipurpose tool is known by different names, comprising a red plate, red-one plate, lambda (λ) plate, gypsum plate, selenite plate, sensitive violet, or simply a color tint plate and quartz wedge plate is a simple, semi-quantitative optical compensator used to examine optical path differences in a wide range of samples by the quartz wedge. Built in a crystalline block of quartz provide parallel or perpendicular optical axis to the edge of the birefringent crystal.

Sample Images

• Accomplished with the help of particular devices known as retardation plates and optical compensators.
• Infinite strain free plan achromatic objective, and Backward quadruple nosepiece
• Gypsum λ Slip, First Class Red, 1/4λ Slip, (Ⅰ-Ⅳ Class) Quartz Wedge optical compensate system
• Designed with wild field WF10×/ 20mm, WF10×/ 20mm with cross hair, WF10×/ 20mm with scale of cross hair eyepieces
• Coaxial Coarse & Fine Adjustment, Range 24mm, Fine Division 0.002mm
• 360° Revolving Round Stage of length 160 mm
• N.A.0.9/0.13 swing out condenser
• 5W LED lamp light source
• Binocular 30° inclined and a 360° rotatable head with interpupilary distance 48 to 75 mm and
• Small foot print and light weight
• Easy operating with ergonomic design
• Excellent image quality with infinite optical system
• Optional accessories C- Mount 0.4×2× SLR Camera adapter for Nikon or Canon DSLR camera, Specimen presser, Micrometer 0.01mm
• 6V/30W Halogen Lamp Illumination as an optional accessories
• Built in a crystalline block of quartz provide parallel or perpendicular optical axis to the edge of the birefringent crystal
