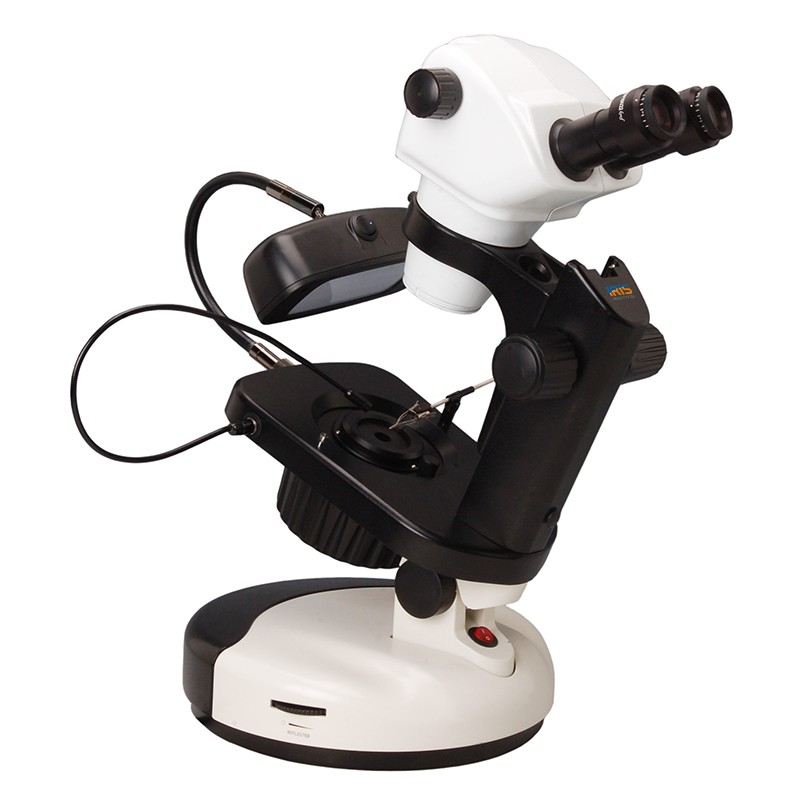

Gemological Microscope IGM-1200
Gemological Microscope IGM-1200

Catalogue number : 440320-05-04

Gemological Microscope IGM-1200  used to examine diamonds, emeralds, rubies and all other types of precious stones.

$3,500.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Specifications
  • Technical Data

Gemological Microscope IGM-1200  used to examine diamonds, emeralds, rubies and all other types of precious stones. Available in binocular and trinocular form for the capture of the gem provides you with an opportunity for extra revenue. Designed with 3 different types of illumination making it a very flexible stereomicroscope including Fluorescent lamp, LED, and Halogen illumination. These microscopes ensure good status for having outstanding optics, rugged dependability, flexibility and low-cost to perform identifications, analyses, and measurements more accurately and efficiently, thus reducing your workload. At a working distance of 115 mm with a 1:6.3 zooms ratio. Ideal for working with subtle jewelry, gemstones and used in the design, creation, production, and repair of jewelry under high magnification 0.8X-5X to provide quality image.

  • Good quality illumination along with gem clamp and dark field attachment
  • Gemological microscopes is cost effective and inexpensive and high level professional microscope
  • Accomplished to provide the best viewing conditions
  • Cast-off by jewelers, gemologists, and stone setters, gemological microscopes
  • Specially designed for use in the industry to observe and evaluate different types and grades of precious stones
  • Capable with user-friendly operation system
  • Built-in 3.2 MP camera which can captures great gemological images with a simple click
  • Maximum magnification of up to 0.8X-5X
  • Auxiliary- 0.5X220 mm, 0.7X125 mm, 2X125 mm objective as an optional accessories
  • High wild field WF15X16 mm with diopter adjustment
  • Dark field working stage (with Iris diagram)
  • 9W Fluorescent lamp, LED Point Light, 6V/20W Halogen illumination light source
  • Binocular and trinocular inclined 45° and a 360° rotatable head with interpupilary distance 55 to 75 mm
  • Small foot print and light weight
  • Easy operating with ergonomic design
Model IGM-1200
Type Gemological Microscope
Viewing Head Binocular Viewing Head, Inclined at 45°, Interpupilary Distance: 55-75mm
Eyepiece WF15X16 mm with diopter adjustment (optional: WF10X22mm, WF20X12mm, WF30X9mm)
Objective optional: Auxiliary Objective 0.5X220 mm, 0.7X125 mm, 2X125 mm
Stage 0°-325° Rotatable base and stand 0-38° Inclined, so the height and angle of eyepiece can be adjusted, easy to operate and a gem clamp fixing of both side
Light Source 9W Fluorescent lamp, LED Point Light, 6V/20W Halogen illumination
Magnification 0.8X-5X
Zoom Ratio 1:6.3, 115 mm
Catalogue No. 440320-05-04

Model

IGM-1200

IGM-1250

IGM-1260

Type

Gemological Microscope

Magnification

0.8X-5X

Viewing Head

Binocular Viewing Head, Inclined at 45°, Interpupilary Distance: 55-75mm

Trinocular Viewing Head, Inclined at 45°, Interpupilary Distance: 55-75mm

Binocular Digital Viewing Head, Inclined at 45°, Interpupilary Distance: 55-75mm

Digital System

-

Resolution: 2048×1536(, 3.2MP)

Focusing

110 mm for observing different size gem and sample

Eyepiece

WF15X16 mm with diopter adjustment (optional: WF10X22mm, WF20X12mm, WF30X9mm)

Zoom Ratio

1:6.3,   115 mm

Objective

optional: Auxiliary Objective 0.5X220 mm, 0.7X125 mm, 2X125 mm

Stage

0°-325° Rotatable base and stand 0-38° Inclined, so the height and angle of eyepiece can be adjusted, easy to operate and a gem clamp fixing of both side

Light Source

9W Fluorescent lamp, LED Point Light, 6V/20W Halogen illumination

Gem Clamp

High quality steel clamp is perfect to hold the gem for observation from all directions

Catalogue No.

  440320-05-04

  440320-10-04

  440320-15-04
