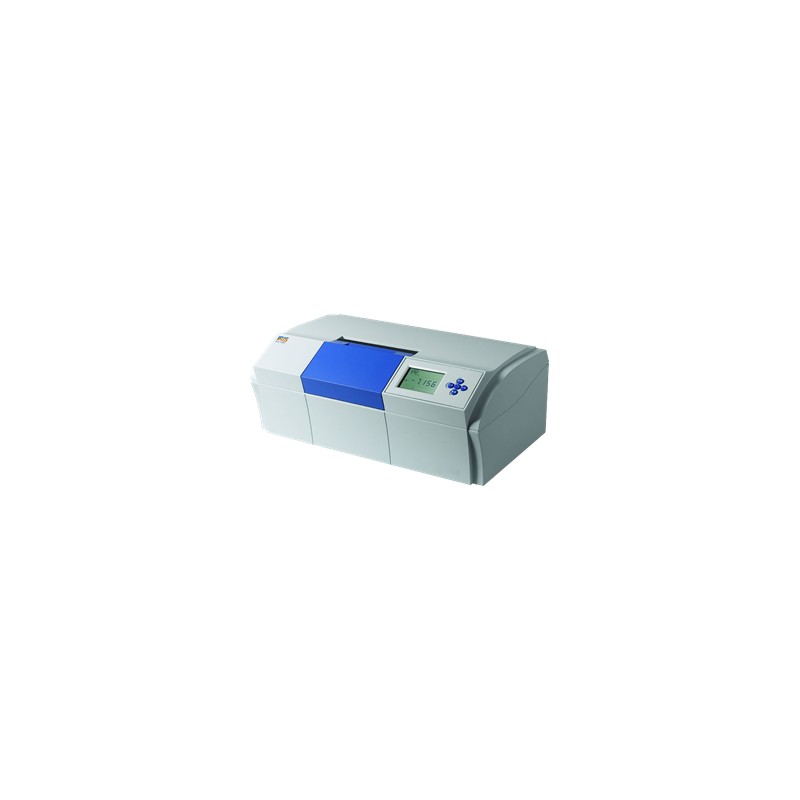

Basic Automatic Polarimeter IAP-120

View larger
Basic Automatic Polarimeter IAP-120

Catalogue number : 4600510-04

Basic Automatic Polarimeter IAP-120  is designed for use in many applications that require measurement of optical rotation and best suited for optical rotation, sugar degree in pharmaceutical, chemical, food and research applications.

$3,890.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

Add to Quote

Add to wishlist

  • Product Information
  • Features
  • Specifications
  • Technical Data

Basic Automatic Polarimeter IAP-120  is designed for use in many applications that require measurement of optical rotation and best suited for optical rotation, sugar degree in pharmaceutical, chemical, food and research applications. Designed with 589.44 nm, 5-inch LCD light source and includes polarimeter tubes of 100 mm and 200 mm, and a spare sodium lamp, with sample transmittance up to 10 %, and 1% range.Better-quality usability with the use of touch screen display. Achieve a high measurement accuracy of up to ± (0.01 and measuring valuex 0.05%) °C. Automatically prints out Optical rotation, sugar degree.

Basic Automatic C total repeatability and glass tubes: 100 and 200 mm, 15mm diameter.Polarimeter IAP-120 is ideal for measurement of rotation of polarization plane and best suited for optical rotation with accuracy up to ±0.01°C, and ≤0.01°

  • Designed with photoelectric test and microcomputer control

  • Suitable for optical rotation and sugar degree application

  • CE certified

  • Designed with 5-inch LCD display

  • Capabilities to store of three times results and design to calculate average values

  • Integrated with polarimeter tubes of 100 mm and 200 mm

  • Support RS232 interface

Model IAP-120
Measuring range ±45°(optical rotation)±120°)
Accuracy ±(0.01+measuring value x 0.05%)°C
Repeatability ≤0.002°C
Wavelengths 589.44 nm
Dimensions (L x W x H) 730×480×470 mm
Weight 33 kg
Interfaces RS232
Data Storage LED
Certification CE
Display 5-inch LCD
Measurement Modes Optical rotation, sugar degree
Catalogue No. 4600510-04

Model

IAP-110

IAP-120

Wavelength

589.44 nm

Accuracy

±(0.01+measuring value x 0.05%)°C

Repeatability

≤0.01°C

≤0.002°C

Measurement Range

±45°C(Optical rotation)

±45°(optical rotation)±120°

Measurement Modes

Optical rotation

Optical rotation, sugar degree

Source

LED

Display

5-inch LCD

Test Tube

100 mm or 200 mm (regular)

Minimum Indicating Value

0.002°C(optical rotation)

0.001°C(optical rotation)0.01°

Sample Transmittance

10%

1%

Certifications

 CE

Interface

RS232

Dimension

730×480×470 mm

Weight

33 kg

Electrical Requirement

 -

 -

Catalogue No.

4600505-04

4600510-04
