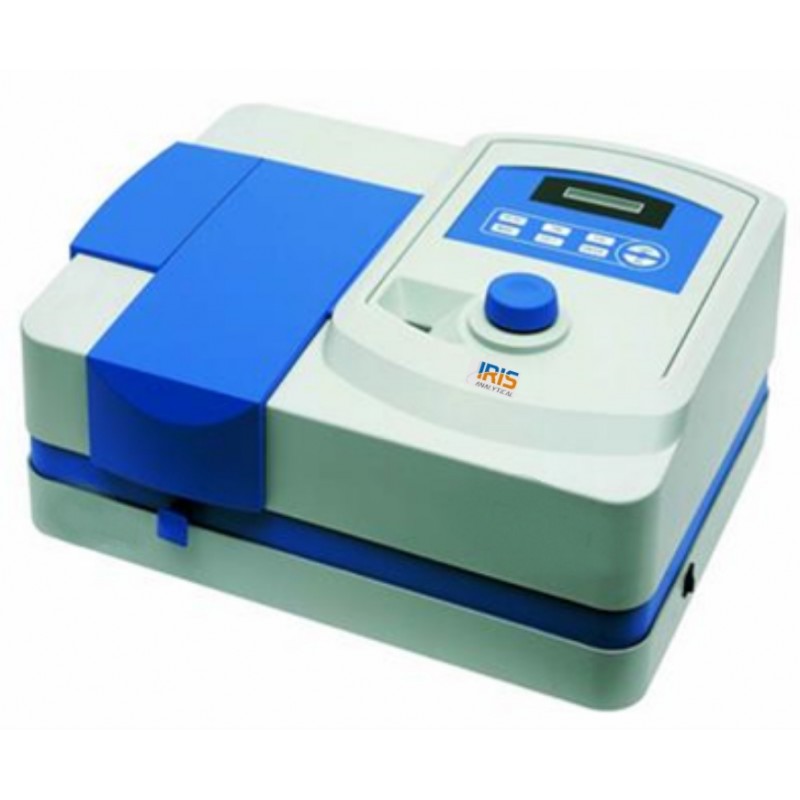

Visible Spectrophotometer IVS-210(220V/50Hz)
Visible Spectrophotometer IVS-210(220V/50Hz)

Catalogue number : 580100502

Visible Spectrophotometer IVS-210 is simple to operate and easy to use instrument with advanced performance technology. Single beam spectrophotometer.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data

Visible Spectrophotometer IVS-210 is simple to operate and easy to use instrument with advanced performance technology. Single beam spectrophotometer.

Our line of spectrophotometers is intended to fit into the medical and health department, biochemistry, petro-chemistry, environmental monitoring, and quality control as qualitative and quantitative analyses. Build-in halogen tungsten light source and a silicon photodiode detector.

We offer a soft keypad display, with continuous wavelength ranging from 320 to 1100 nm. Features with LCD light display with 190 to 1100 nm and 320 to 1100 range and tungsten halogen lamp. Portable and effortless handling with flatness up to ≤ 0. 1% T (NaNO2, 360 nm), 0.05% T (NaNo2, 360 nm) stray light and single beam, flat grid of 1200L / mm.

  • Results can be reported quickly
  • Large 6 inches blue and 16X2 LCD display with touch features
  • Improved optical and electronic design
  • Single beam detector
  • Automated design, realizing easy measurement
  • Parameters can be kept for future use and automatically save after power failure
  • Determined wavelength scanning, time scanning, multiple wavelength determination, multiple order derivative determination, double wavelength method and triple wavelength method etc.
  • Data outputs can be gained by means of a printer port and RS-232 interface with optional USB port
  • Automatic 10 mm 8-cell holder, variable to automatic 5 mm to 50 mm 4-position cell holder for more choices

Model

IVS-210

IVS-220

Wavelength

320-1100 nm

Display

6 inches blue LCD light

16X2 LCD

Detector

Silicon photodiode

Accuracy

± 0.5 nm

±2.0 nm

Reproducibility

0.2 nm

1 nm

Source

-

Halogen tungsten lamp

Monochromator

Single beam, flat grid of 1200L / mm

Spectral Bandwidth

2 nm (5 and 1 nm are optional)

5 nm (1,2 and 4 nm are optional)

Stability

≤0.001A/h (at 500nm, after heating

Photometric Accuracy

± 0.5% T (0-100% T), ± 0. 002A (0-0.5A) ± 0. 004A (0.5A-1A)

± 0.5% T

Photometric reproducibility

0.2% T

0.3 % T

Photometric range

-0.3 to 3 A

Stray light

≤ 0. 1% T (NaNO2 , 360 nm)

≤ 0.05% T (NaNo2 , 360 nm)

Baseline Flatness

± 0.002A

Power Consumption

140 W

100 W

Dimensions

530 × 410 × 210 mm

-

Weight

18 kg

15 kg

Electrical Requirement

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.

 580100501

 580100502

 580101001

 580101002
