Fluorescence Spectrophotometer IFS-1093(110V/60Hz)
Fluorescence Spectrophotometer IFS-1093(110V/60Hz)

Catalogue number : 5803500501

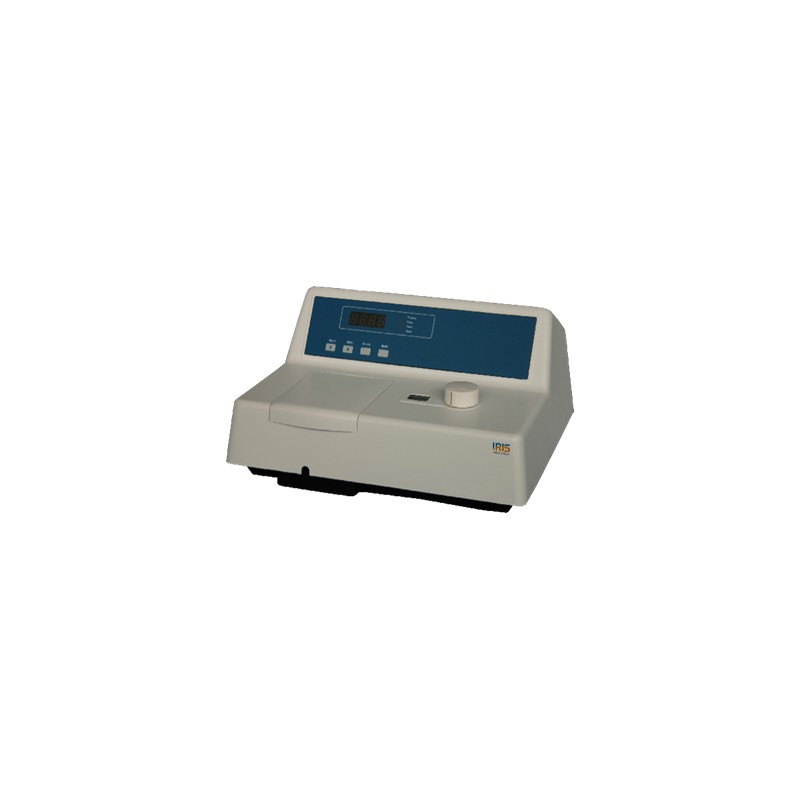

Fluorescence Spectrophotometer IFS-1093 is equipped with high quality xenon source and photoelectric detectors to provide sufficient light intensity signal and the detection sensitivity.

$4,040.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data

Fluorescence Spectrophotometer IFS-1093 is equipped with high quality xenon source and photoelectric detectors to provide sufficient light intensity signal and the detection sensitivity.

Operates in variable wavelength range: 200, 365,405,470,515, 650, and 900 nm with ±1 nm and ±2 nm accuracy and 0.5 to 1 nm wavelength reproducibility. Suitable in the field of bioscience, industrial, chemical, environmental, pharmaceutical, agricultural, and academic applications. Multi accessories available.

It is a horizontal beams spectrophotometer measure a trace amount of sample,CE certified and offer robustness, reliability and sensitivity with 365 nm and C-T diffraction grating. Suitable for education & laboratory, organic & inorganic chemistry.

Accessories

  • Power cord: 1 pc
  • Fuse(1A): 2 pcs
  • Fuse(5A): 2 pcs
  • Quartz fluorescence cuvette 10 mm: 2 pcs

Optional Accessories

  • Cuvette, special for high concentration samples
  • 360 to 650 nm interference optical filter(25 mm) e.g.: IFS-1093A: 365,405,470,515 nm
  • Quartz fluorescence cuvette10mm
  • Data processing software
  • Printer cable
  • RS-232C serial port cable



  • Designed to improved laboratory safety
  • Easy to use and unique sampling
  • Expand analytical capabilities
  • Offer robustness, reliability and sensitivity
  • Offer variable wavelength
  • Accuracy: ±1 nm and ±2 nm
  • Reproducibility: ≤ 0.5 nm and ≤1 nm
  • Available with multi accessories
  • Portable and user friendly
  • CE certified and support USB and R322 interface to transfer data
  • Used to measure a variety of unique surfaces
  • Accomplish consistent and accurate colour measurement
  • Ease rework and wasted materials
  • Quick to meet customer demands

Model

IFS-1093

IFS-1093A

IFS-1096

IFS-1096A

Wavelength range

365 nm

365,405,470,515 nm

200 to  650 nm

Excitation: 365 nm, Emission: 200 to 900 nm

Display

LED

Accuracy

±2 nm

 ± 1 nm

Reproducibility

≤1 nm

≤ 0.5 nm

Source

LED

150 W Xenon lamp

Monochromatic

360 to 650 nm  (C-T diffraction grating)

C-T  grating Emission: 200 to 650 nm, Bandwidth: 10 nm

Spectral Bandwidth

10 nm

Slit

-

Excitation: 10 nm, Emission:  10 nm

Sensitivity

1×10-9 g/ml

-

Limit

-

Linearity

≤±3.0%

≥0.995

γ≥0.995

Photometric Range

-

-9999 to 9999

S/N ratio

-

S/N≥90

S/N≥150(P-P)

Upper Limit Value

-

≤1.5% (Within 10 minutes) (displaying value≥50)

Detection limit

-

1 × 10-10 g / ml quinine sulfate solution

Exciting optical filters

Interference optical filter (10 nm bandwidth)





Certification

CE

Interface

RS232

USB2.0

Power Consumption

-

200 W

Dimension

450×420×280 mm

550×510×365 mm

Net Weight

7 kg

11 kg

Gross Weight

9 kg

13 kg

Electrical Requirement

220V±22V  50Hz±1Hz

110V/60Hz

220V±22V  50Hz±1Hz

110V/60Hz

220V±22V  50Hz±1Hz

110V/60Hz

220V±22V  50Hz±1Hz

110V/60Hz

Catalogue No.

5803500502

5803500501

5803501002

5803501001

5803501502

5803501501

5803502002

5803502001
