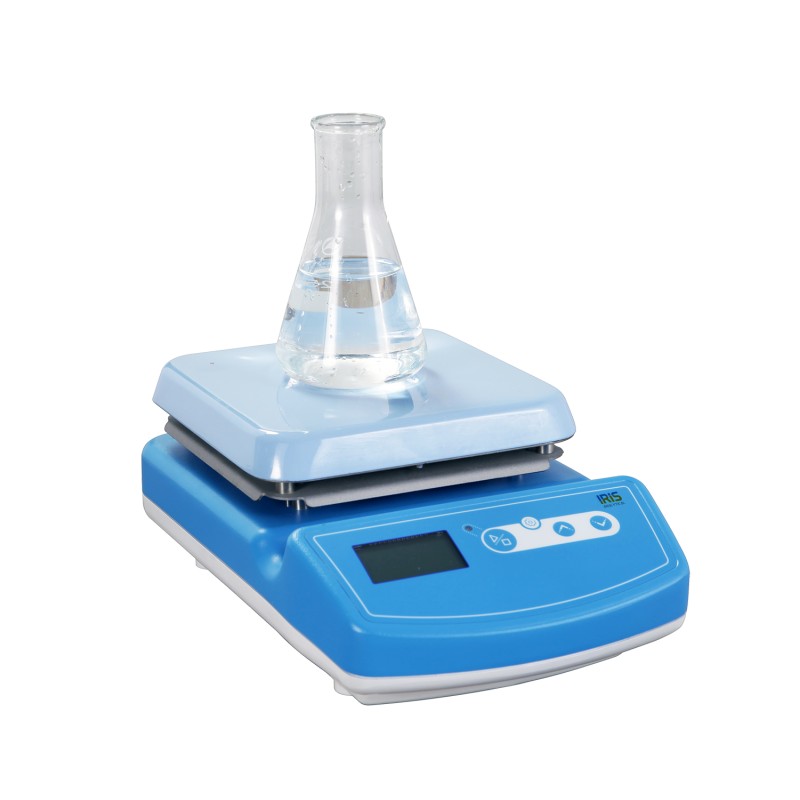

Magnetic Stirrer IMS-1005
Magnetic Stirrer IMS-1005

Catalogue number : 600050502

Magnetic Stirrer IMS-1005 are used to stir at 200 to 1800 rpm and operate at RT +5 to Magnetic Stirrer IMS-1000 Series compact, robust and ergonomic design magnetic stirrers with excellent speed control and digital LCD screen to display data simultaneously.

$989.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data

Magnetic Stirrer IMS-1005 are used to stir at 200 to 1800 rpm and operate at RT +5 to Magnetic Stirrer IMS-1000 Series compact, robust and ergonomic design magnetic stirrers with excellent speed control and digital LCD screen to display data simultaneously.

The aluminium alloy external casing facilitates cleaning and sterilization and easily accommodates stirring capacity up to 12 L of water. The magnetic stirrer ensures the best level of protection for the user. The power board is assuredly handy, is elevated and positioned at a secure from sources of heat and is secure in case of damage during liquid spills.

The IMS comes up with constant torque over a speed range from 200 to 1800 rpm. Embedded with an alarm system, timer, auto-switching temperature mode, and aluminium plate ensuring top quality thermoregulation performance and maximum safety.

The Magnetic Stirrer allows the buyer to smoothly stir up to heat up to a temperature of 200°C with a high degree of accuracy.

  • Stir range from 200 to 1800 rpm on each stirring position with individual controls
  • LCD display for real temperature, power indication, function selection, stirring speed as well as running on
  • Heat to maximum temperature of 200°C on plate surface
  • Available with hotplate with dimension up to 180×180 mm, 130×130 mm, and 180×180 mm
  • Designed with aluminum plate
  • Maximum capacity of stirring: 12 L
  • Plate Temperature Range: RT +5 to 320°C
  • Liquid Temperature Range: RT +5 to 200°C
  • Auto switch-off mode
  • Heating and stirring can proceed simultaneously. Heating mantle power and stirring speed is step-less adjustable
  • External chamber is cast with aluminum alloy designed to keep spills out of the case
  • Portable and easy to carry anywhere and anytime

Model

IMS-1005

IMS-1010

IMS-1015

IMS-1020

IMS-1025

Capacity

3 L

5 L

12 L

Plate Temperature Range

RT +5 to 320°C

-

RT +5 to 320°C

-

Liquid Temperature Range

RT +5 to 200°C

Speed

200 to 1800 rpm

Accuracy

±1%

Display

LCD

Materials

Aluminium alloy external chamber

Plate Dimension

130×130 mm

180×180 mm

180×180 mm

Dimension

150×110×250 mm

150×110×250 mm

210×130×330 mm

210×130×330 mm

Weight

3.5 kg

4 kg

4.5 kg

5 kg

Electrical Requirement

220V/50Hz

Catalogue No.

600050502

600051002

600051502

600052002

600052502
