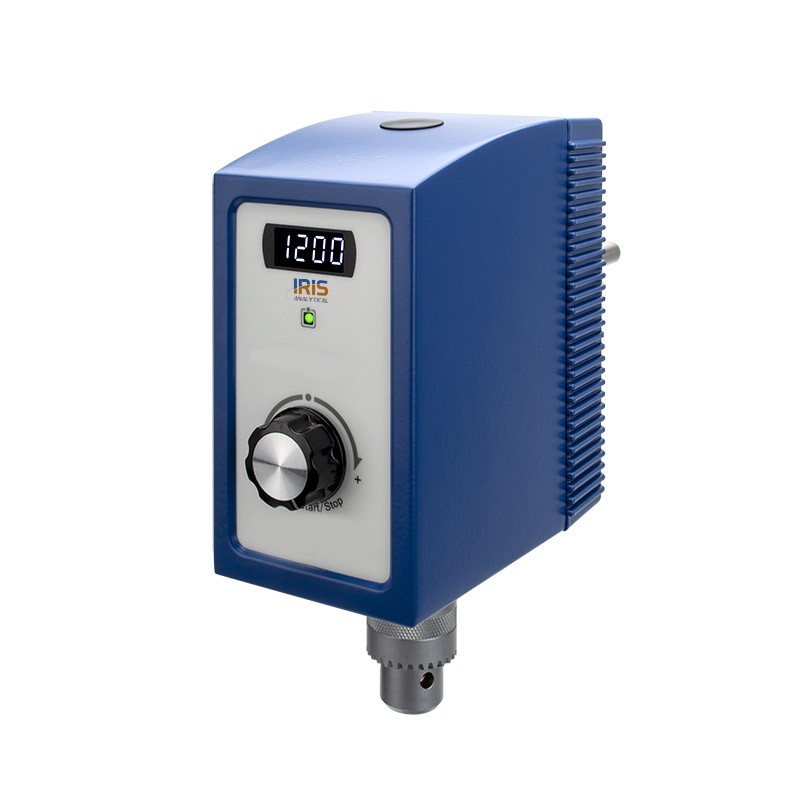

Home >> >>>Overhead Stirrers OS-1200(220V/50Hz)

Overhead Stirrers OS-1200(110V/60Hz)
Overhead Stirrers OS-1200(220V/50Hz)

Catalogue number : 600101002

Overhead Stirrers OS-1200 suitable for all kinds of conventional mixing applications. The simple and intuitive operation can significantly improve the work efficiency in the laboratory.

$1,056.05 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data

Overhead Stirrers OS-1200 suitable for all kinds of conventional mixing applications. The simple and intuitive operation can significantly improve the work efficiency in the laboratory.

  • Directly connectable to the computer via RS-232 cable for remote control
  • Equipped with digital input/output ports and foot pedal port for various applications
  • Suitable for stirring in reaction systems or stirring applications linked to other equipment
  • Rotation speed can be lowered to 20 rpm for very sensitive stirring processes
  • Brushless DC motor, which is very suitable for long-term experimental applications
  • Stable and accurate stirring process due to latest micro-processor technology
  • Totally enclosed and compact casing
  • Stable and quiet working process
  • Internal overload protection
  • Adjustable impeller shaft for different heights
  • Soft start at low speed guarantees a smooth and safe stirring process
  • Suitable for applications in various environments
  • Comes with a reversible rotation function
  • The standard version package entails the overhead stirrer, a stand, rod, and clamp, as well as a stainless steel  impeller
  • Availability of a wide range of different

Model

OS-1100

OS-1200

OS-1300

OS-1400

Display / Control Mode

Scale Display / Knob Control

LED Display / Knob Control

LED Display / Touch Control

LCD Display / Touch Control

Speed Accuracy (rpm)

-

± 1

± 1

± 1

Speed Range(rpm)

40~2000

40~2000

40~2000

20~2000

Maximum Viscosity (cps)

20000

20000

20000

20000

Maximum Torque (N-cm)

70

70

70

70

Maximum Capacity (L)

20

20

20

20

Maximum clamping stirrer diameter (mm)

10

10

10



Clockwise and
Counter Clockwise Mixing

Yes

No

Yes

Yes

Input / Output Power (W)

70 / 50

70 / 50

70 / 50

70 / 50

Dimensions (W x L x H in mm)

105 x 160 x 185

105 x 160 x 185

105 x 160 x 185

105 x 160 x 185

Electrical Requirements

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.

600100501

600100502

600101001

600101002

600101501

600101502

600102001

600102002
