Digital Viscometer IVM-940(220V / 50Hz)
Digital Viscometer IVM-940(220V / 50Hz)

Catalogue number : 650452002

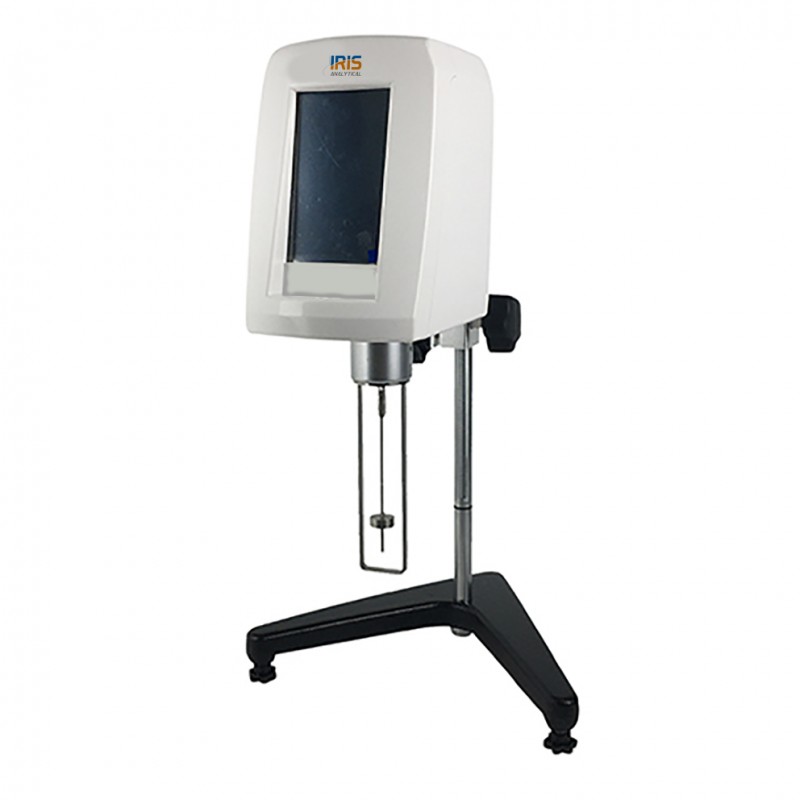

Digital Viscometer IVM-940 is used to measure the viscosity of fluid with accurate viscosity reading in products such as paints, coatings, cosmetics, inks, paper pulp, food, oil, starch, solvent-based glue, latex, and other biochemical products, and as asphalt, wax, hot melt adhesives, etc.(high-temperature).


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data

Digital Viscometer IVM-940 is used to measure the viscosity of fluid with accurate viscosity reading in products such as paints, coatings, cosmetics, inks, paper pulp, food, oil, starch, solvent-based glue, latex, and other biochemical products, and as asphalt, wax, hot melt adhesives, etc.(high-temperature).

Optional Accessories

  • Temperature probe
  • Thermostatic water bath
  • Thermostat cup
  • Printer
  • Build in 5 inch color touch-screen display
  • Comes with Linux system and ARM technology for quick and easy testing
  • Automatic calibrations provide accurate test value and minimize error
  • Suitable for measuring dynamic viscosity and kinematic viscosity with temperature, shear rate, shear stress, measurement function
  • CE certified
  • Build in graphic display, alarm function, automatic scanning,
  • With frontal level adjustment
  • Use in paints, coatings, cosmetics, inks, paper pulp, food, oil, starch, solvent-based glue, latex, and other biochemical products,  and some items need for high-temperature melting, such as asphalt, wax, hot melt adhesives, etc

Model No.

IVM-910

IVM-920

IVM-930

IVM-940

Measuring Range

1 to 100000 mPa S



1 to 2000000

1 to 6000000

Speed

3, 6, 12, 30, 60 rpm

0.3, 0.6, 1.3, 6, 12, 30, 60 rpm

0.1, 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm

Measurement error

±1%

±0.5%

±1%

±1%

Repeatability error

±0.5%

±0.25%

±0.5%

±0.5%

Display

5 inch color touch-screen

Rotor

1-4 rotors ( Standard ) ; 0 rotors ( optional )

Interface

Temperature Probe

Storage









Dimension

350x350x450 mm

Weight

7 kg

Electrical Requirement

110V / 60Hz

220V / 50Hz

110V / 60Hz

220V / 50Hz

110V / 60Hz

220V / 50Hz

110V / 60Hz

220V / 50Hz

Catalogue No

650450501

650450502

650451001

650451002

650451501

650451502

650452001

650452002
